Normal Scan Data Values

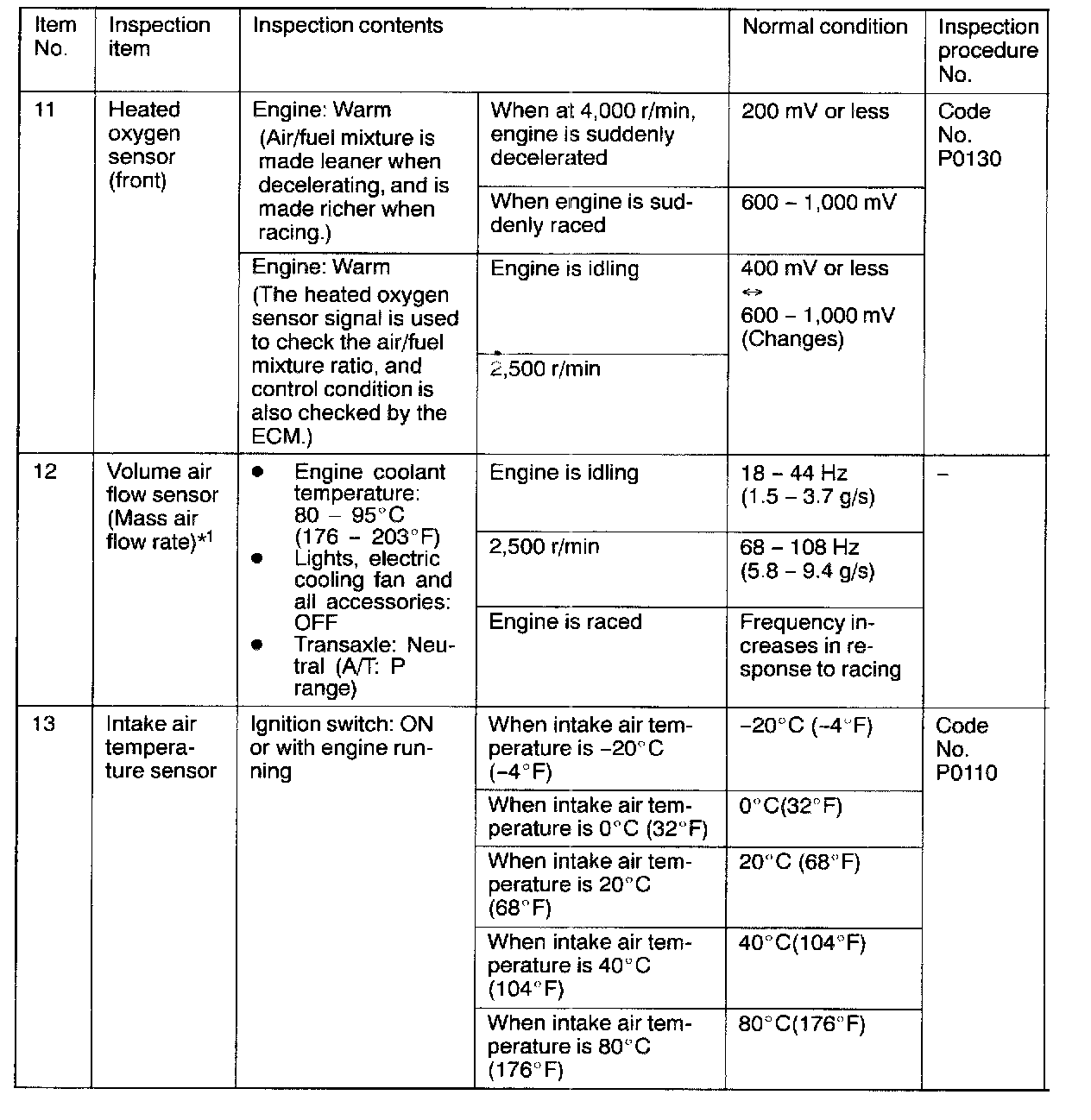

ITEMS 11 - 13:

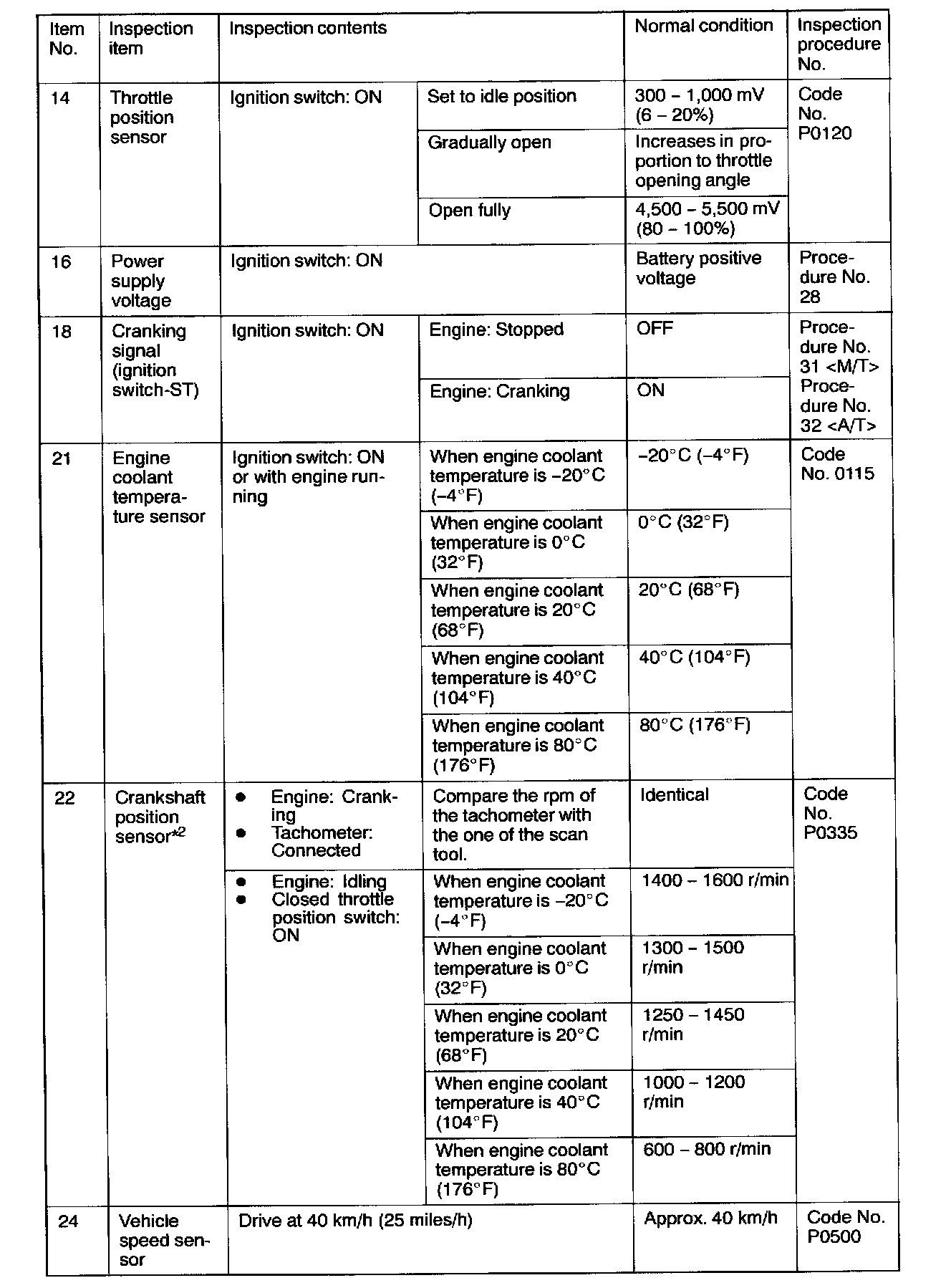

ITEMS 14 - 24:

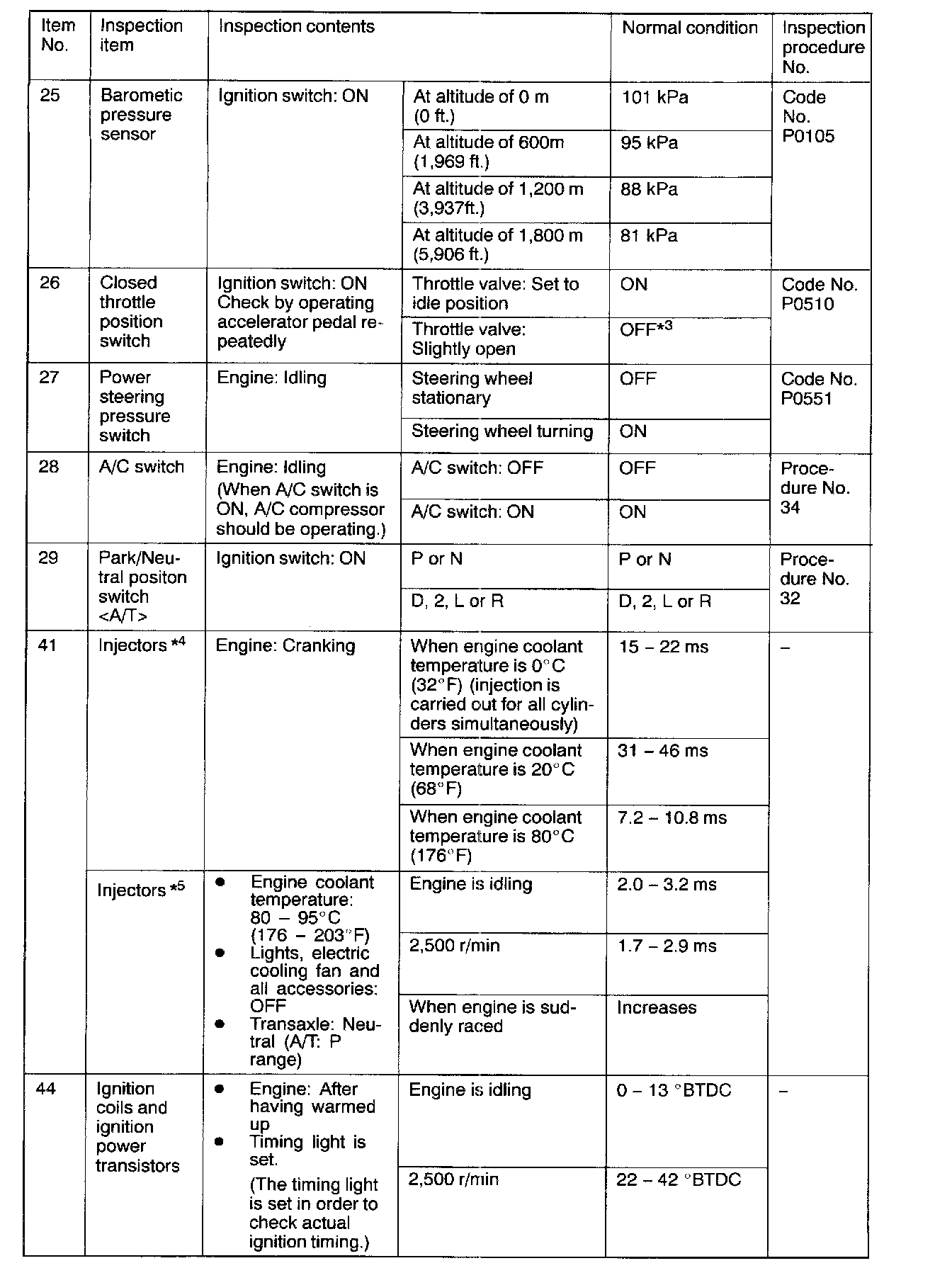

ITEMS 25 - 44:

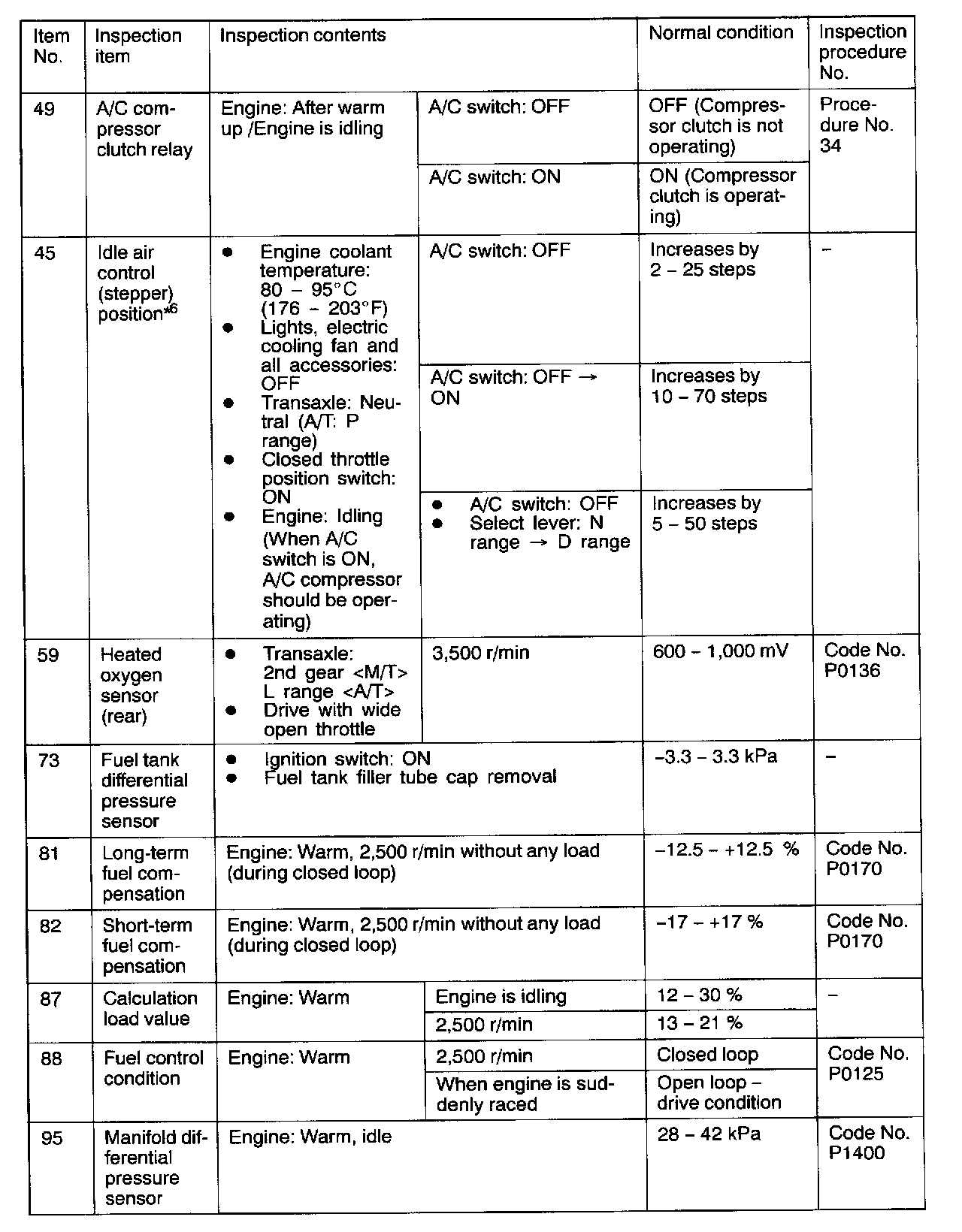

ITEMS 49 - 95:

NORMAL SCAN DATA VALUES

NOTES FOR DATA LIST ITEM BELOW
*1: In a new vehicle [driven approximately 500 km (300 mile) or less], the volume air flow sensor output frequency is sometimes 10% higher than the standard frequency
*2: When idling to warm up from an engine coolant temperature of approx. -20 °C (-4 °F), if the idling speed is lower than the standard value even when the IAC motor is fully opened, the air volume limiter built in the throttle body could be defective.
*3: The closed throttle position switch normally turns off when the voltage of the throttle position sensor is 50 - 100 mV higher than the voltage at the idle position. If the closed throttle position switch turns back on after the throttle position sensor voltage has risen by 100 mV and the throttle valve has opened, the closed throttle position switch and the throttle position sensor need to be adjusted.
*4: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 Volt.
*5: In a new vehicle [driven approximately 500 km (300 mile) or less], the injector drive time is sometimes 10% longer than the standard time.
*6: In a new vehicle [driven approximately 500 km (300 mile) or less], the servo valve position is sometimes 20 steps greater than the standard value.
