Emission Control Systems: Service and Repair

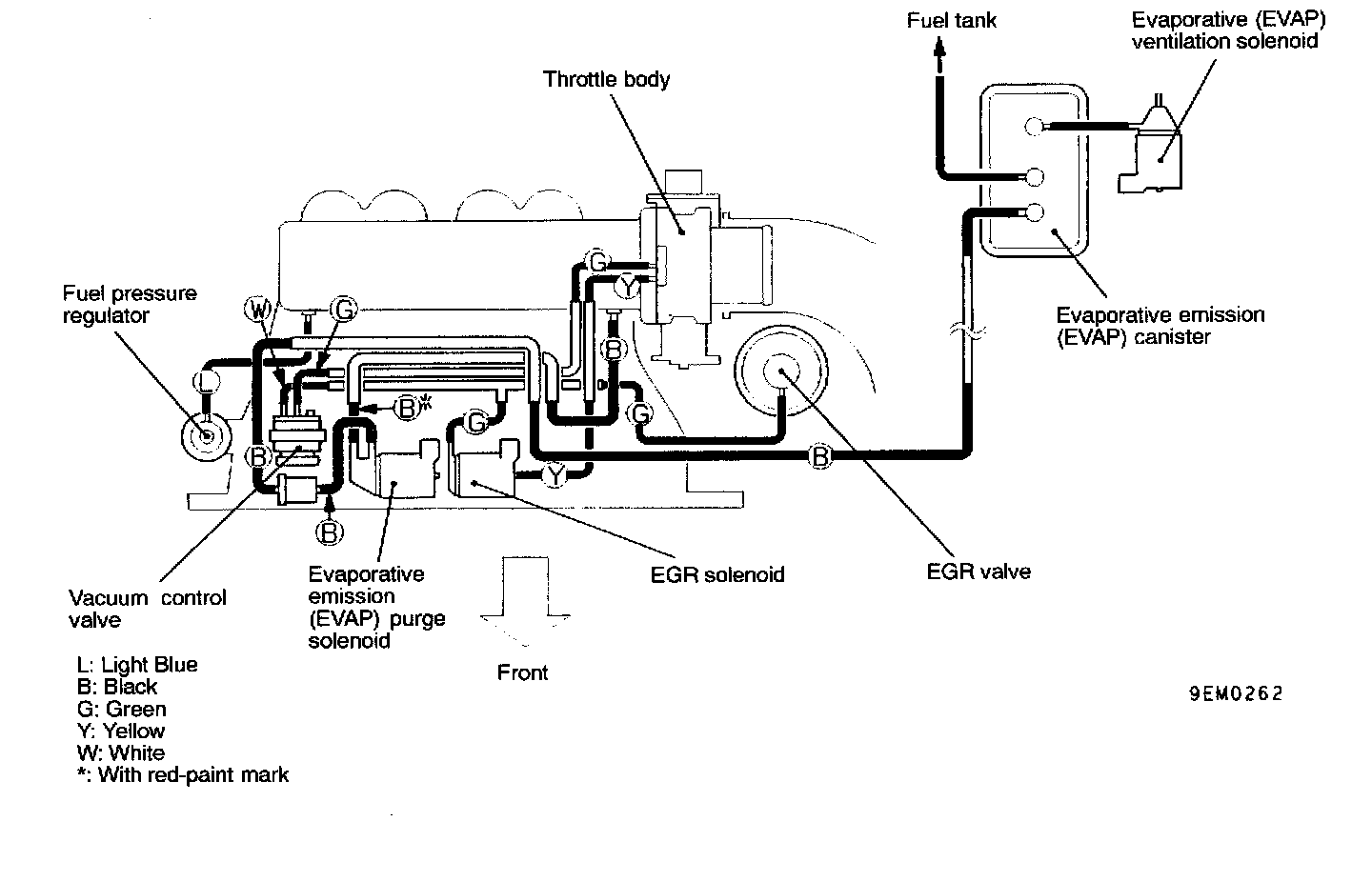

1.5L Engine:

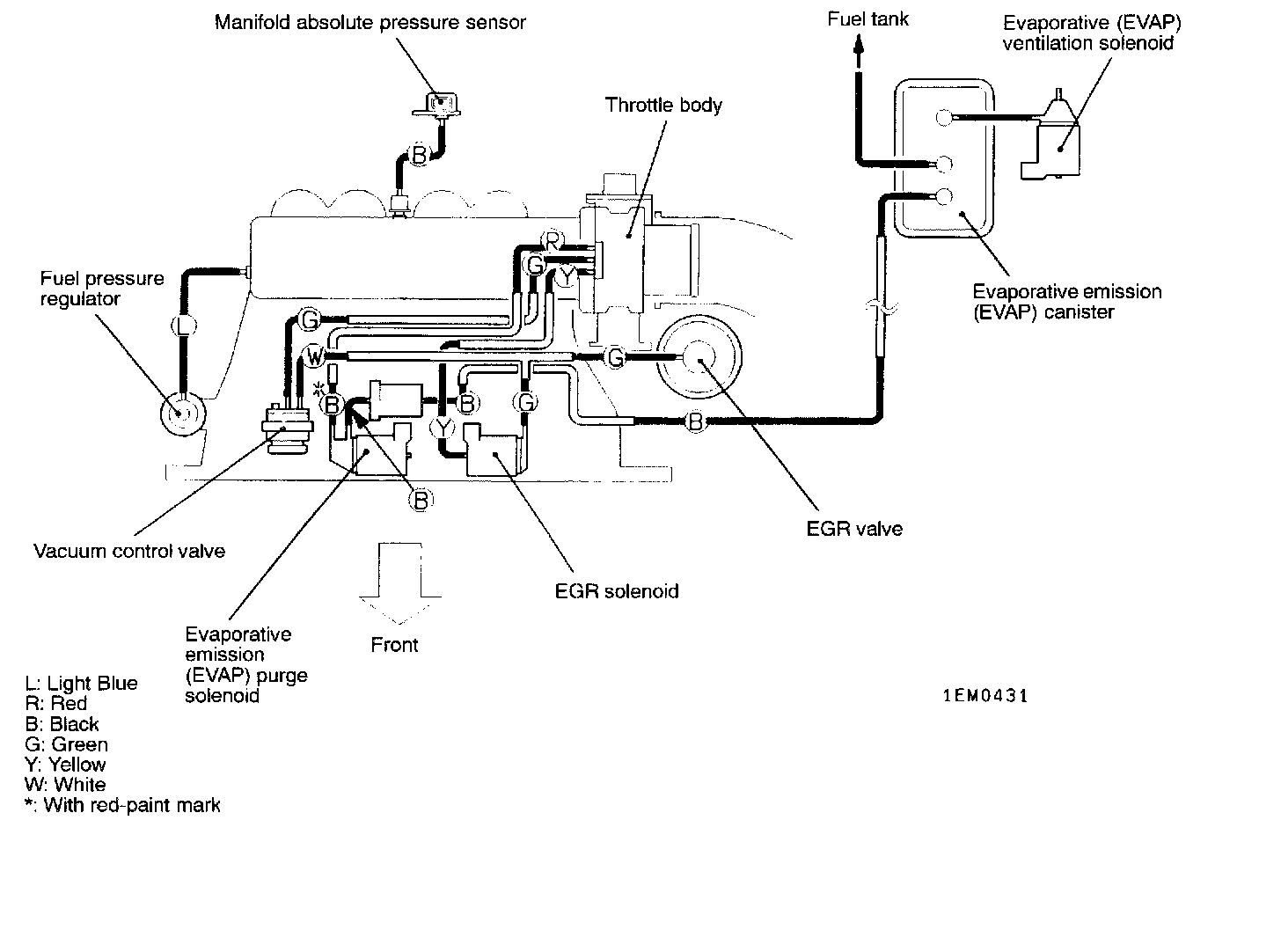

1.8L Engine:

1. When connecting the vacuum hoses, they should be securely inserted onto the nipples.
2. Connect the hoses correctly, using the VACUUM HOSE ROUTING as a guide.
