Ignition Switch: Service and Repair

REMOVAL SERVICE POINT

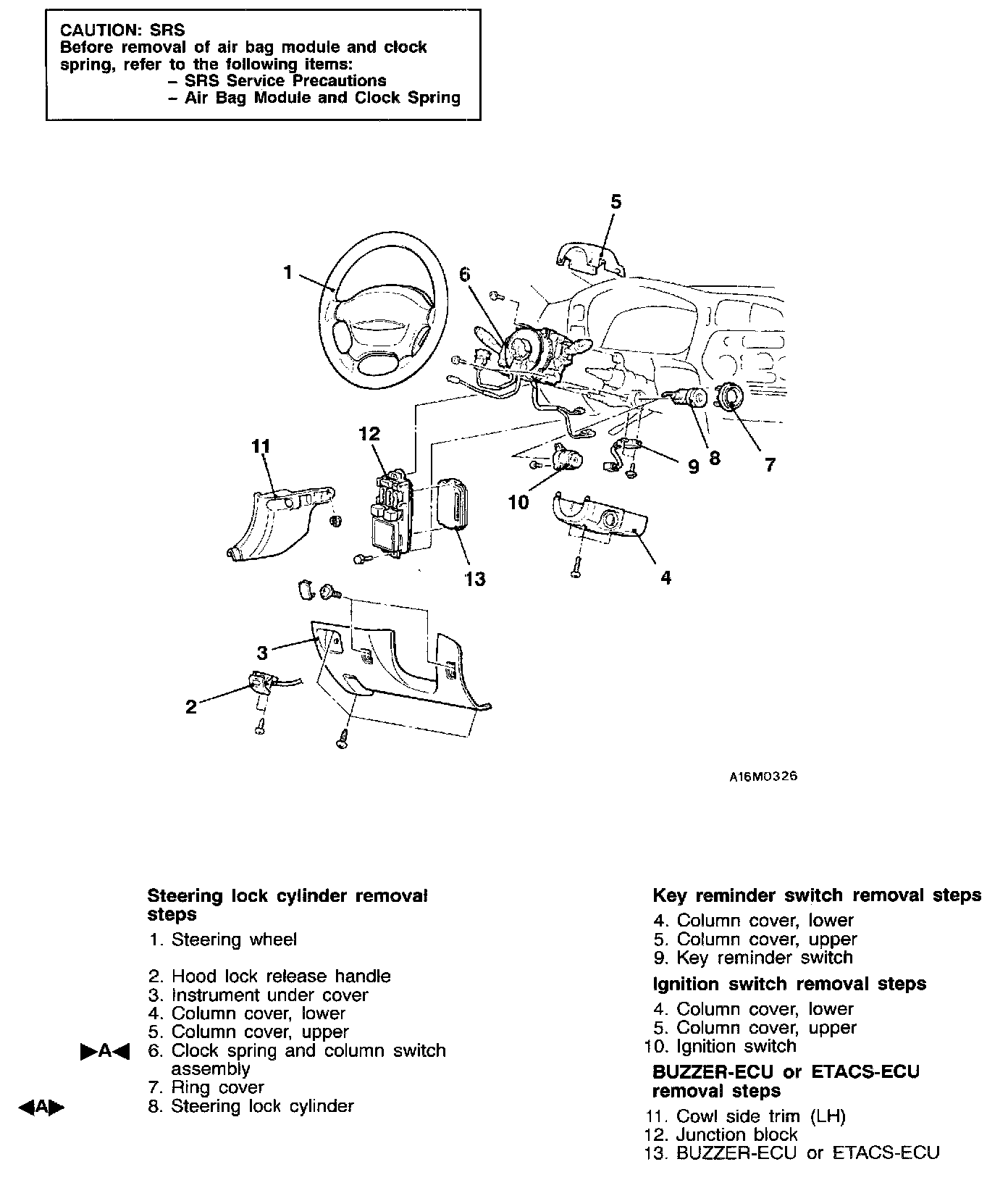

STEERING LOCK CYLINDER REMOVAL

1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.
2. Using a cross-tip (+) screwdriver (small) or similar tool, push the lock pin of the steering lock cylinder inward and then pull the steering lock cylinder toward you.

INSTALLATION SERVICE POINT

>A< CLOCK SPRING AND COLUMN SWITCH ASSEMBLY INSTALLATION

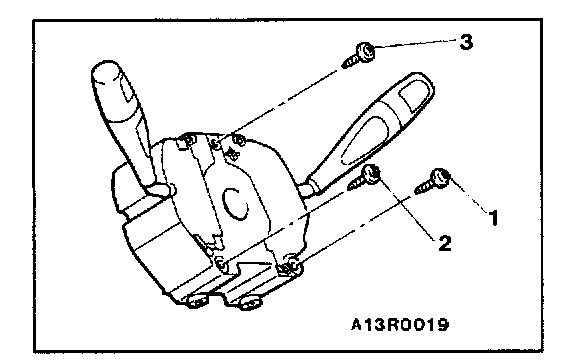

1. Tighten the screws in the order shown.

2. Align the clock spring mating marks and, after turning the front wheels to the straight-ahead position, install the clock springs to the column switch.

Mating Mark Alignment
Turn the clock spring clockwise fully, and then turn back it approx. 3 4/5 turns counterclockwise to align the mating marks.

CAUTION: If the clock spring's mating marks are not properly aligned, the steering wheel may not rotate completely during a turn, or the flat cable within the clock spring may be severed, obstructing normal operation of the SRS and possibly leading to serious injury to the vehicle's driver.
