Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2001
>>
Eclipse GT V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Shift Interlock, A/T
Shift Interlock, A/T

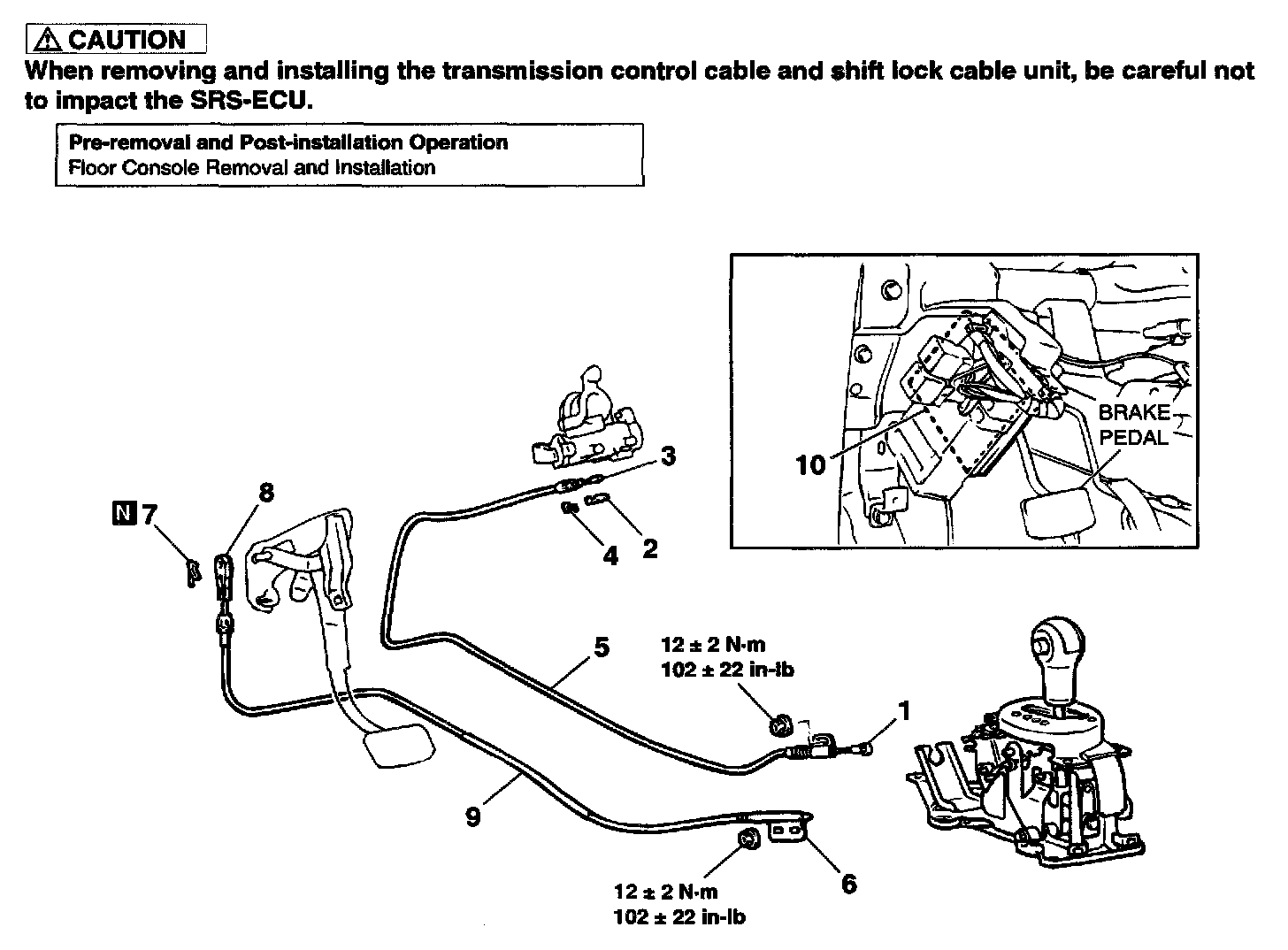

A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS
