Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2001
>>
Eclipse GT V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Control Unit
Control Unit

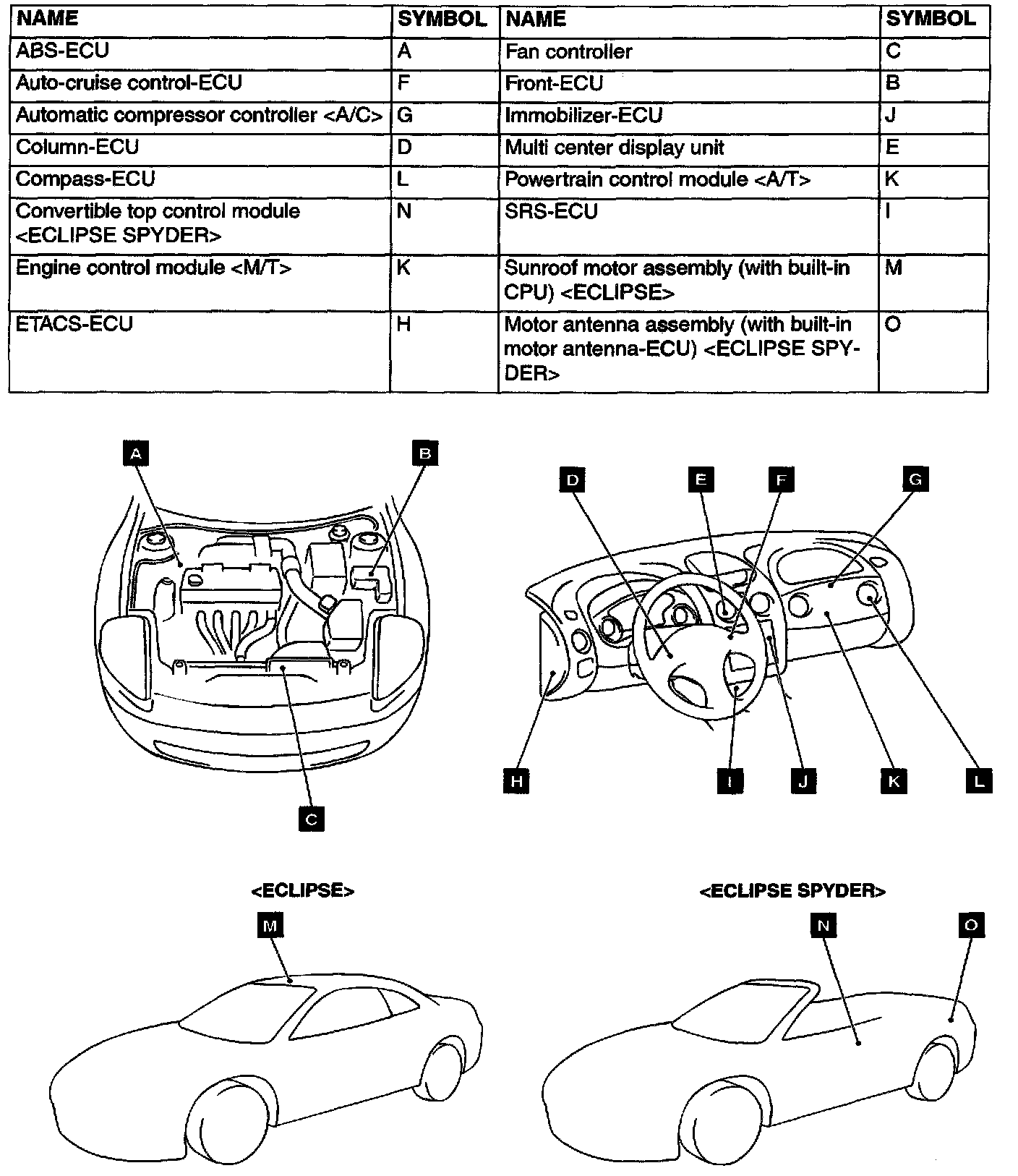

Location Chart, Overall View:

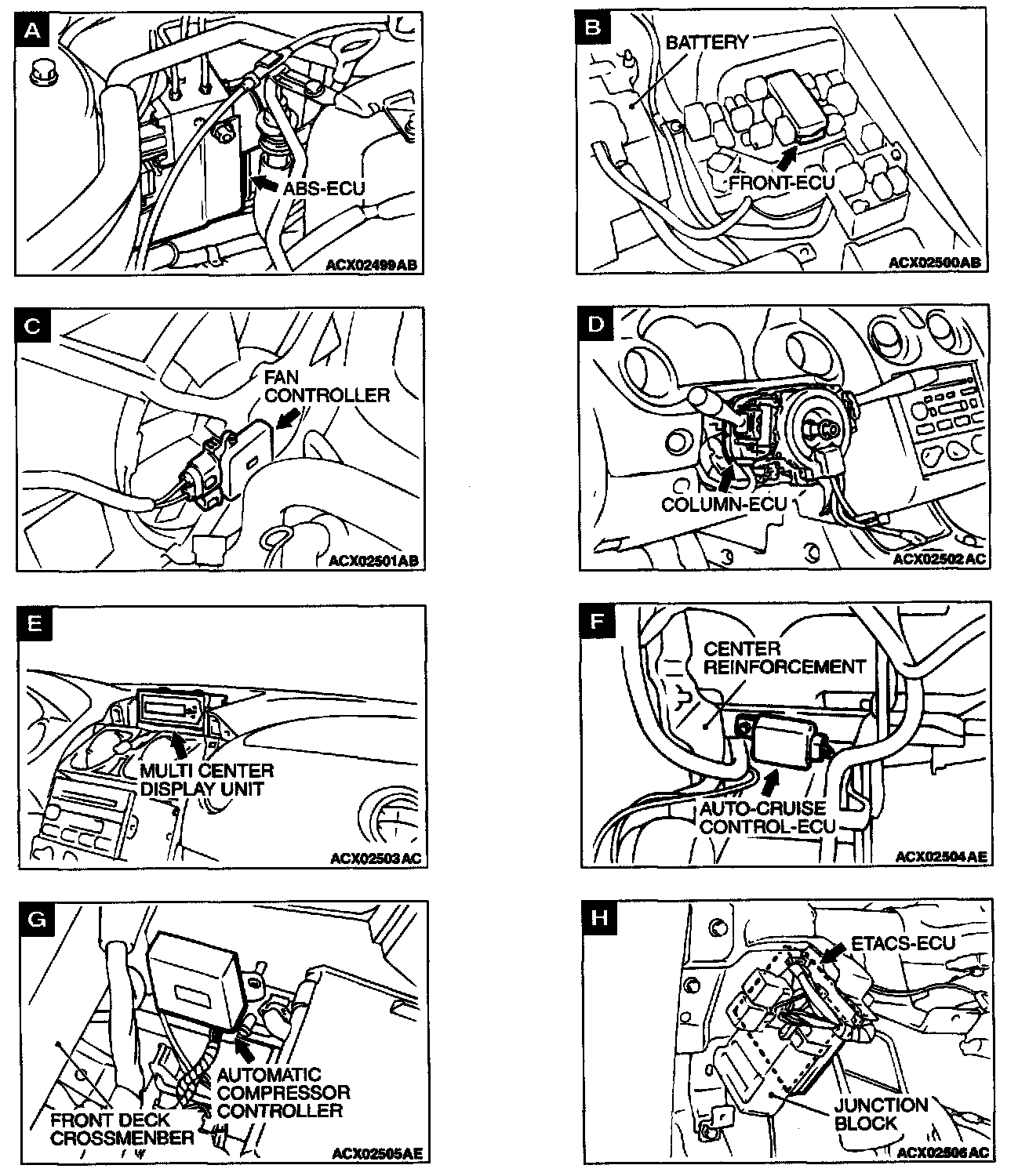

Views A - H:

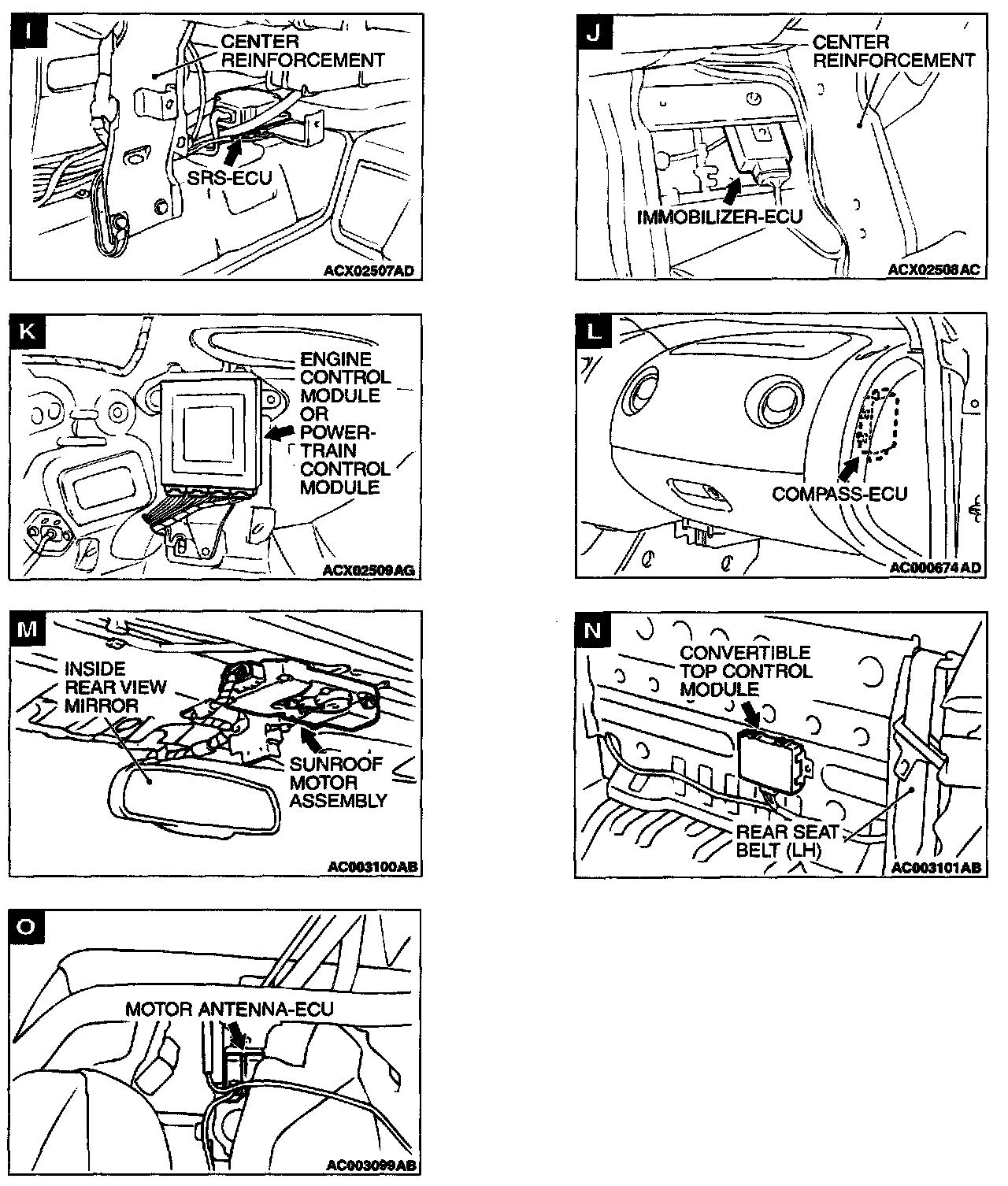

Views I - O:
