On-Vehicle Service

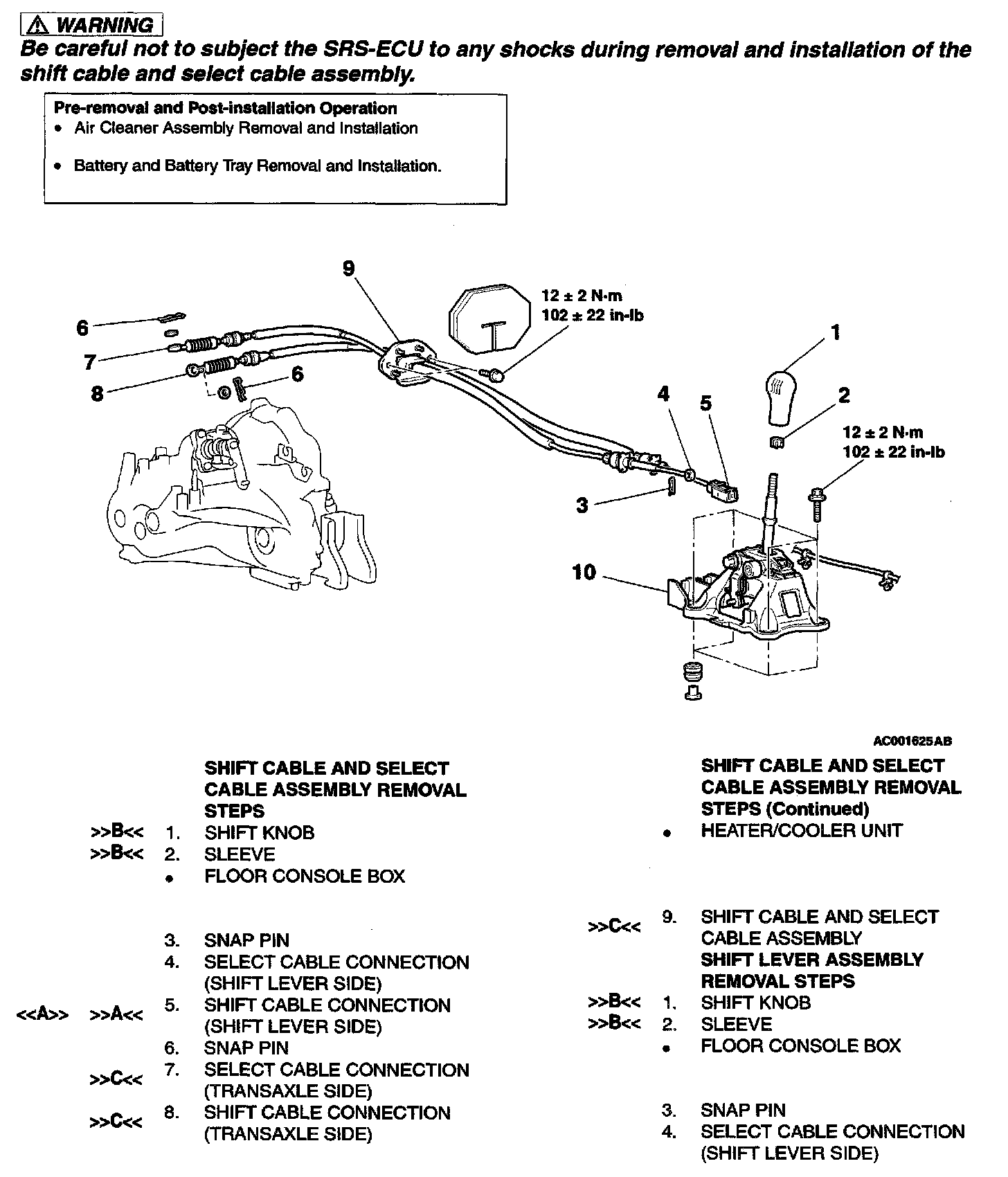

TRANSAXLE CONTROL

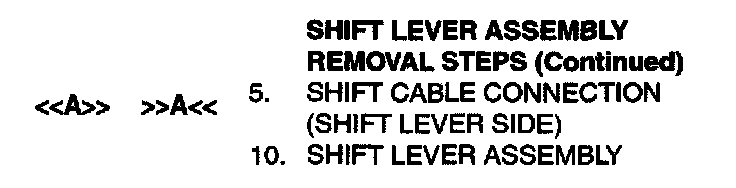

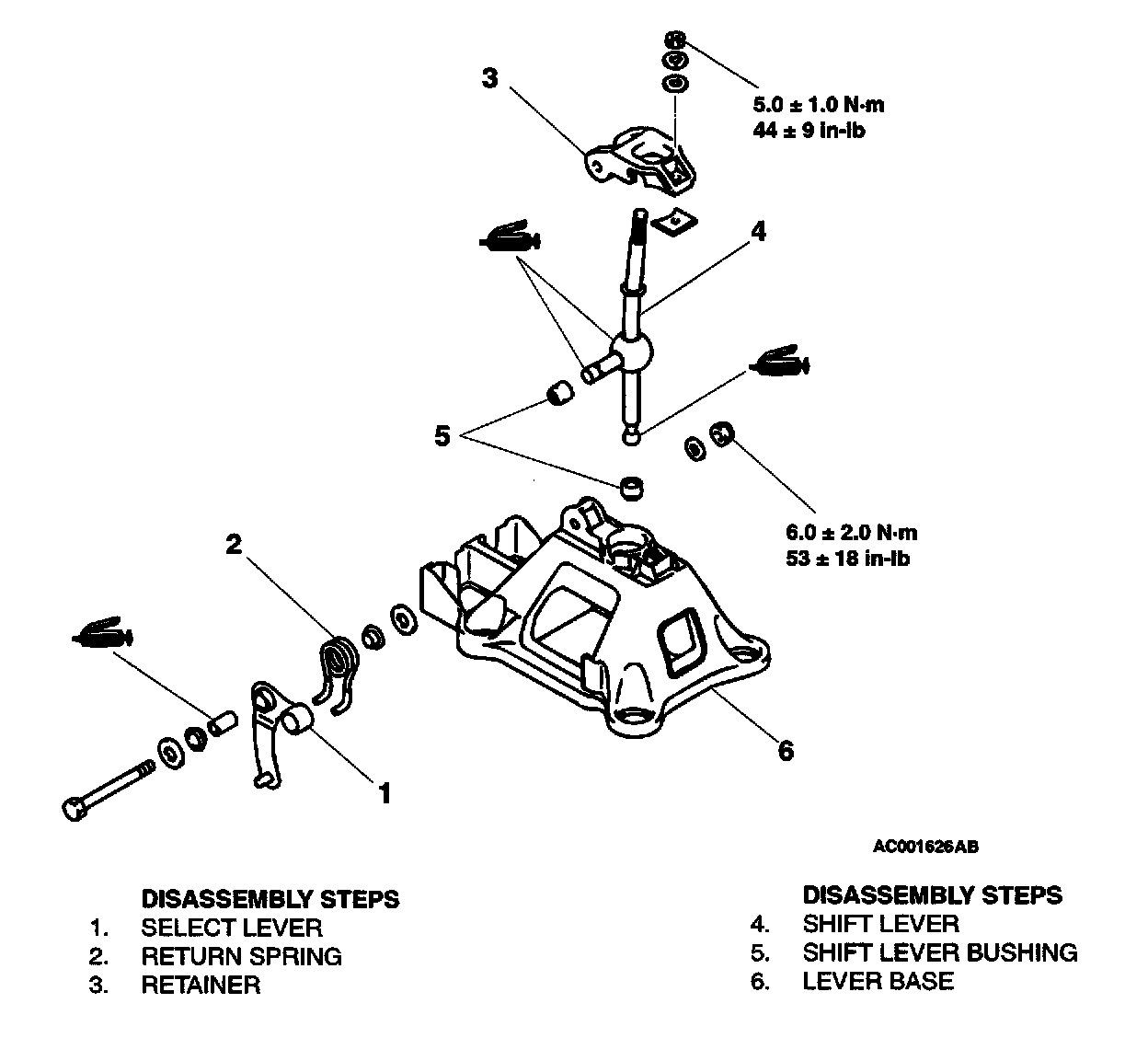

SHIFT LEVER ASSEMBLY

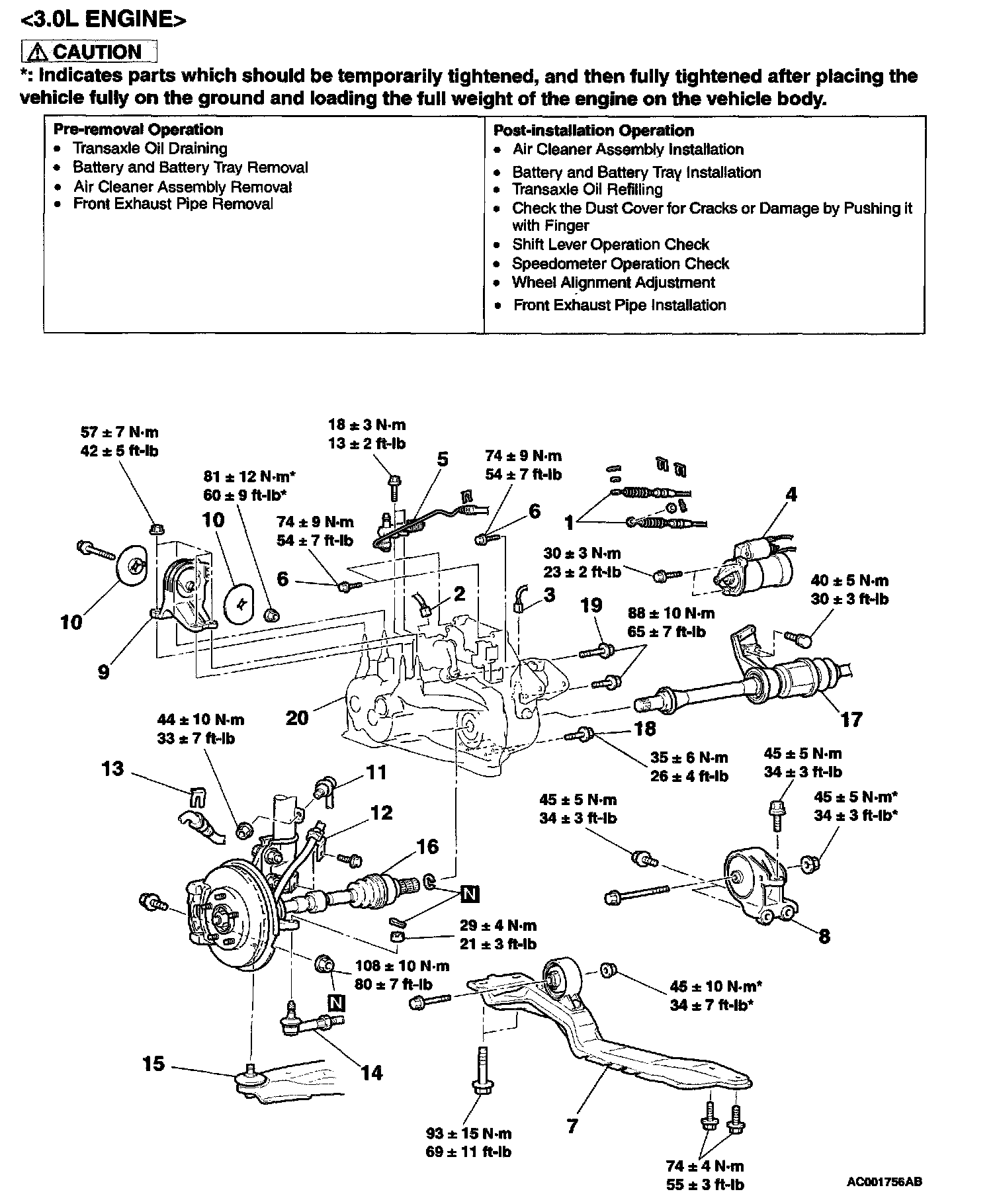

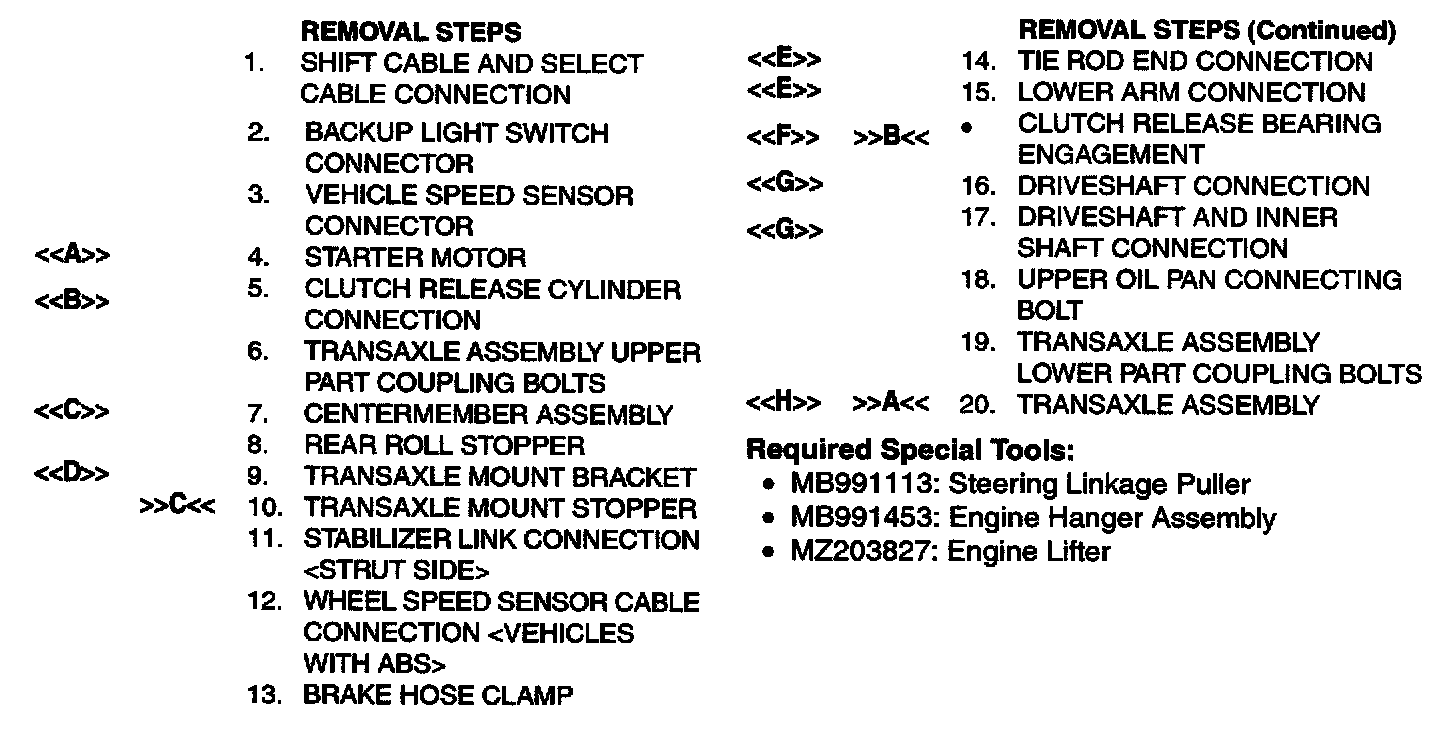

TRANSAXLE ASSEMBLY

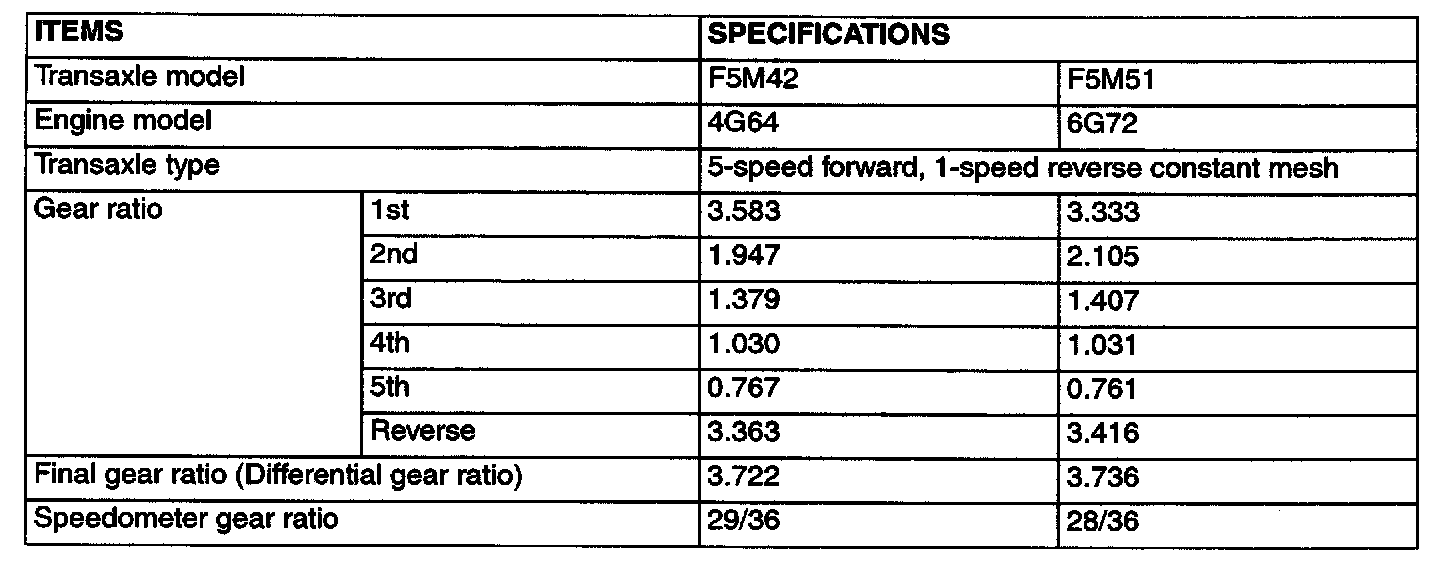

GENERAL SPECIFICATIONS

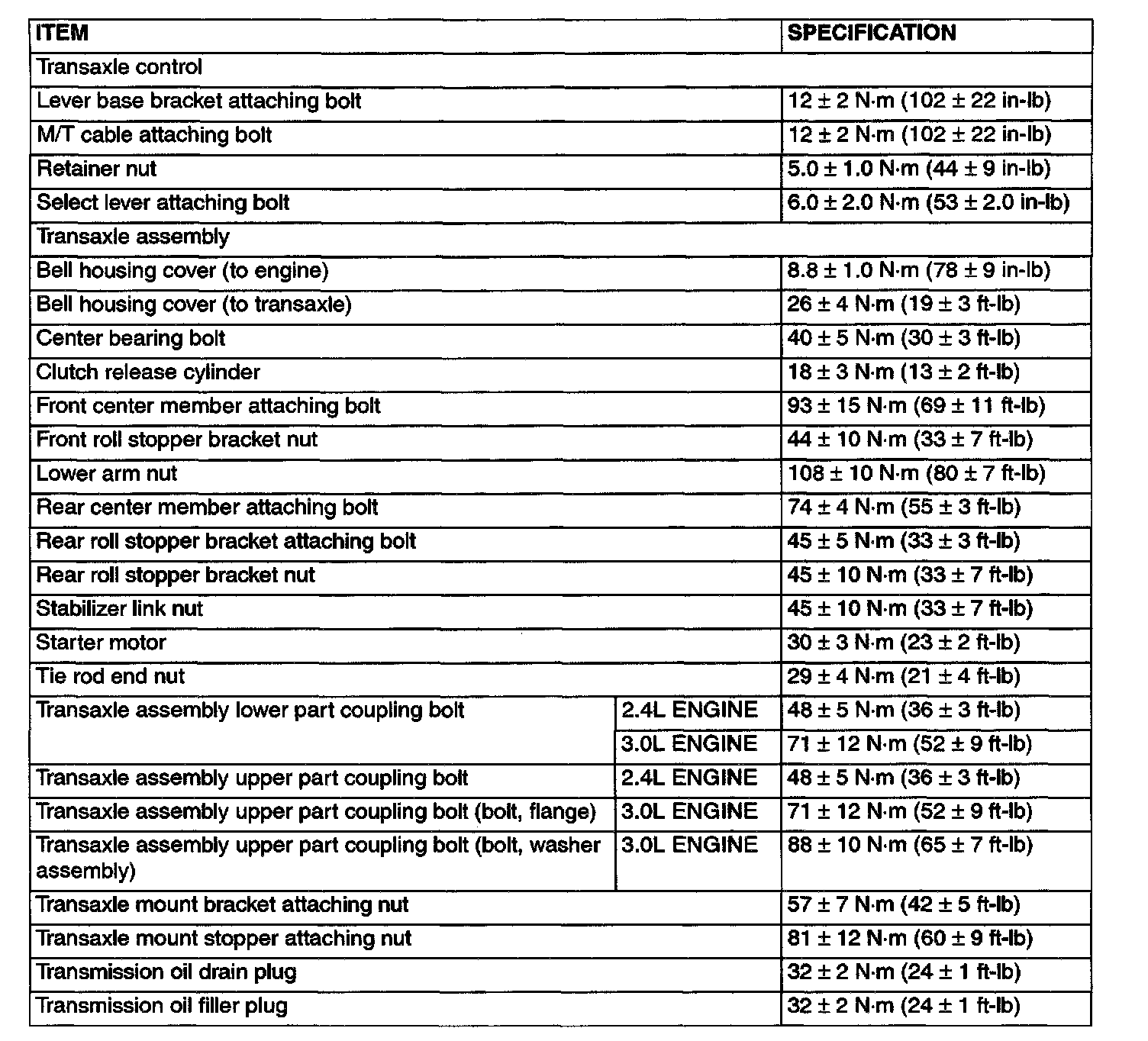

FASTENER TIGHTENING SPECIFICATIONS
