Auto-Cruise Control Check

AUTO-CRUISE CONTROL CHECK

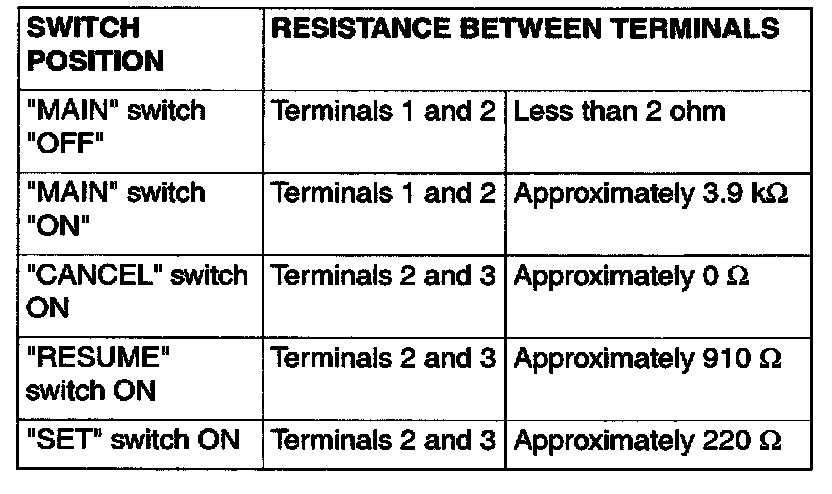

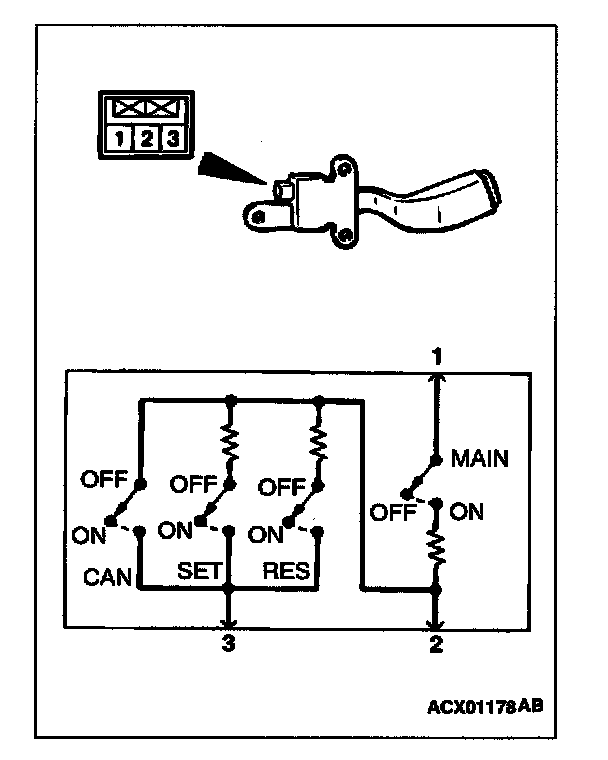

Measure the resistance between the terminals when each of the "SET," "RESUME," "CANCEL" and "MAIN" switches is pressed. If the values measured at the time correspond to those in the above table, the resistance values are correct.
