Locations
>>
Component Locations
>>
Control Unit
Control Unit

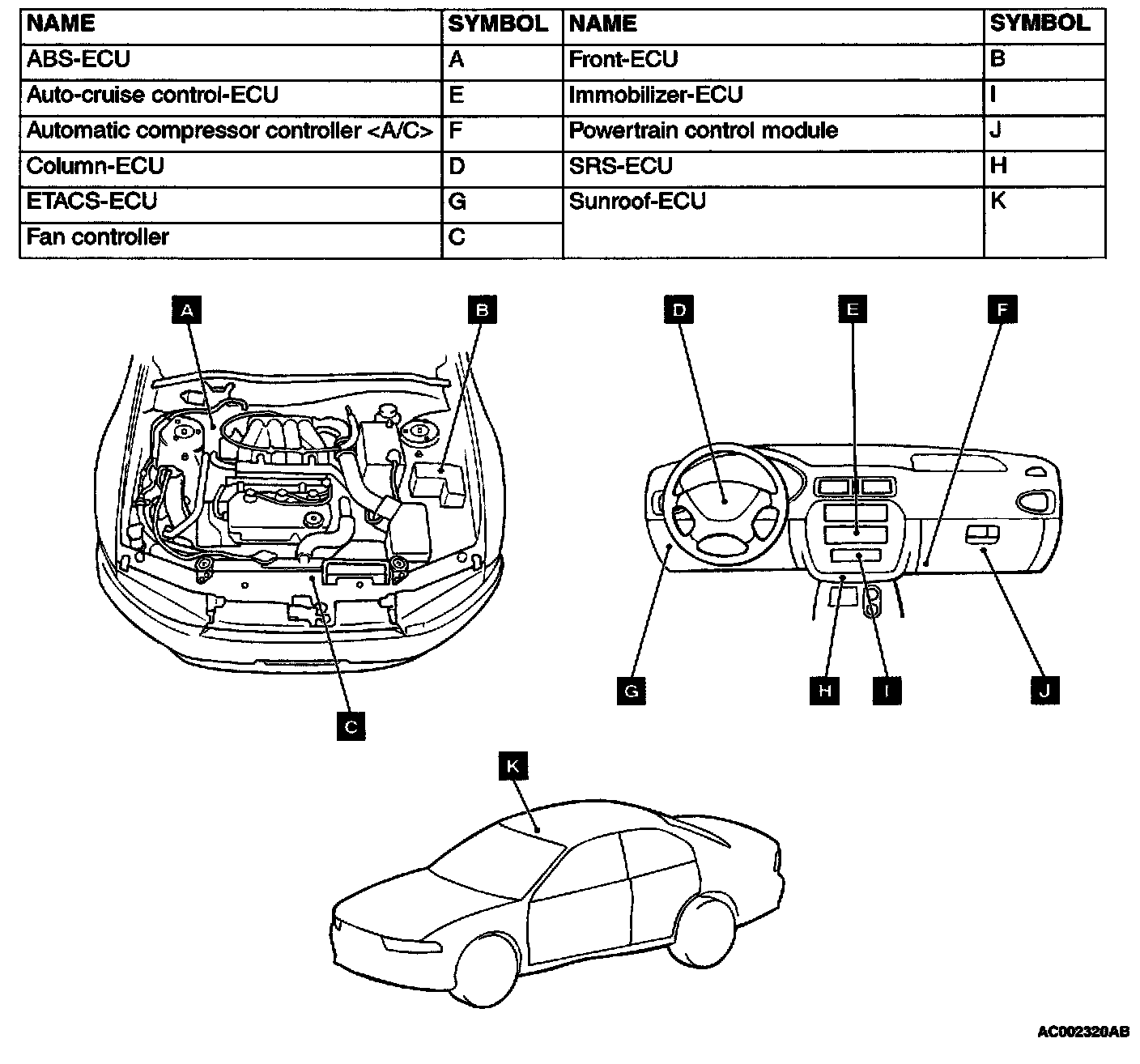

Location Chart And Overall View:

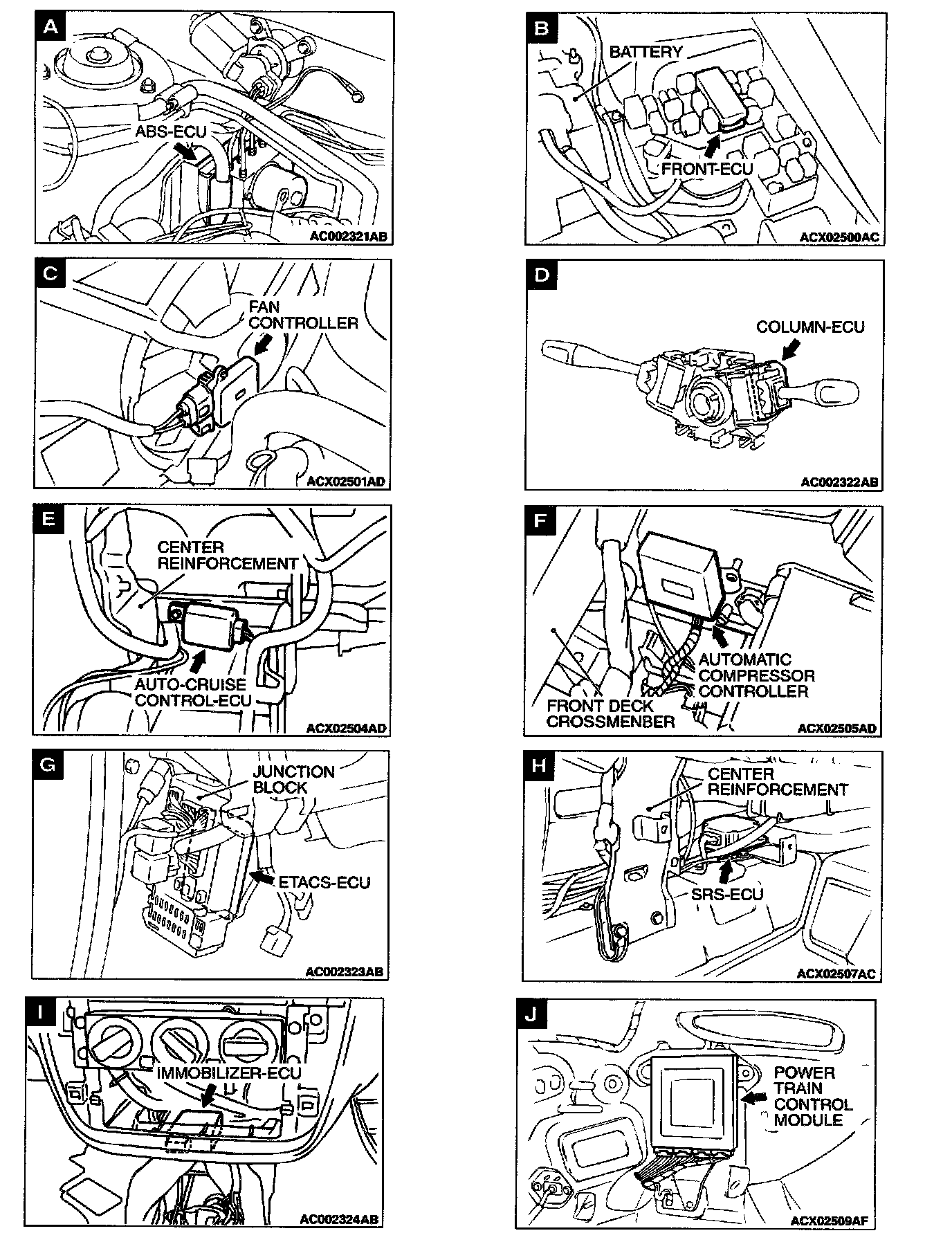

Views A - J:

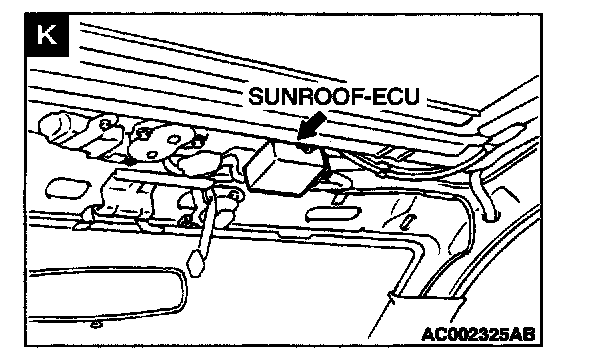

View K:
