Home >> Mitsubishi >> 2001 >> Galant LS V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Components >> Grounding

Grounding

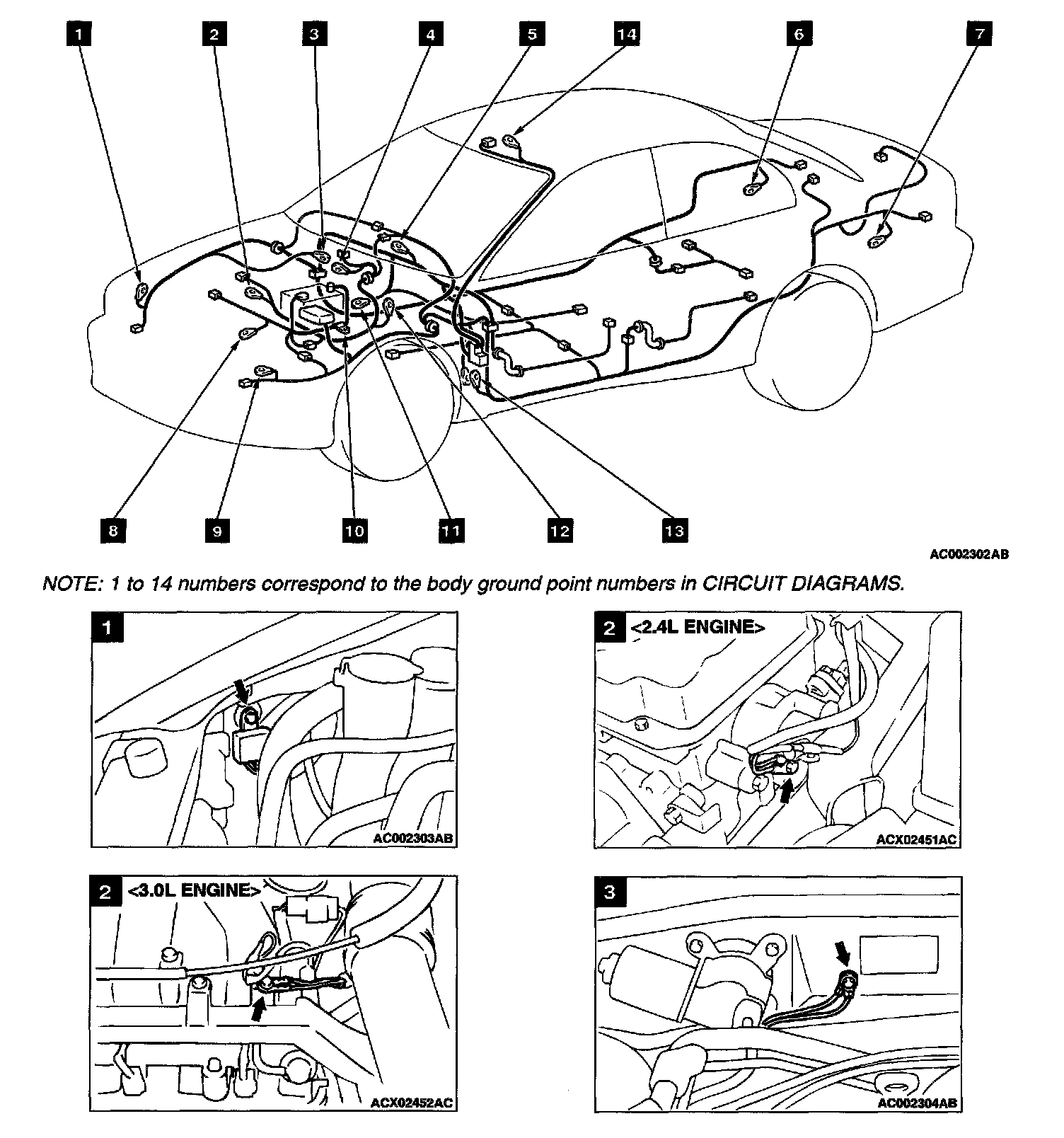

Overall View And Views 1 - 3:

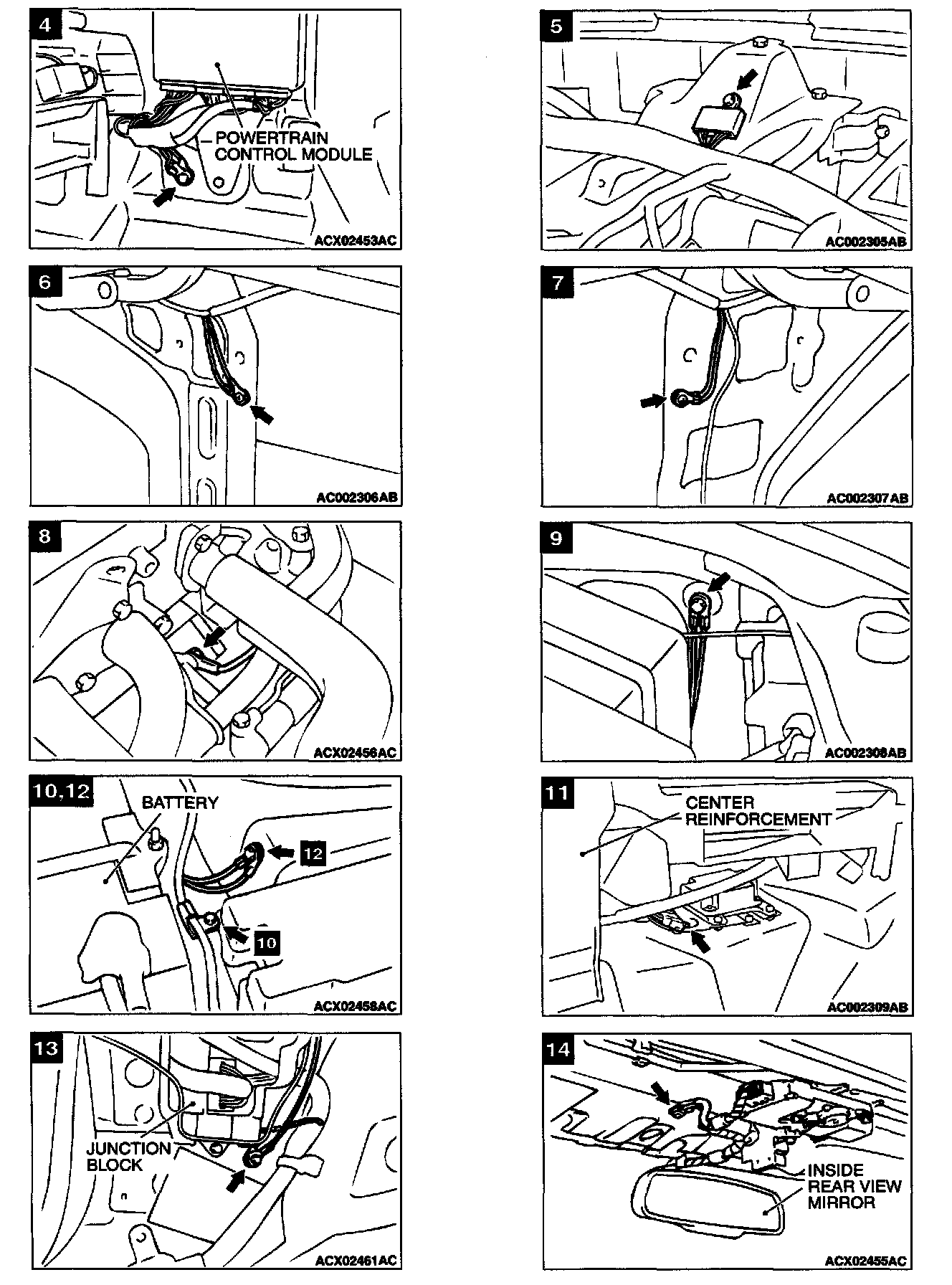

Views 4 - 14:
