Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2001
>>
Galant LS V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Unit Overhaul
>>
Transaxle
Transaxle

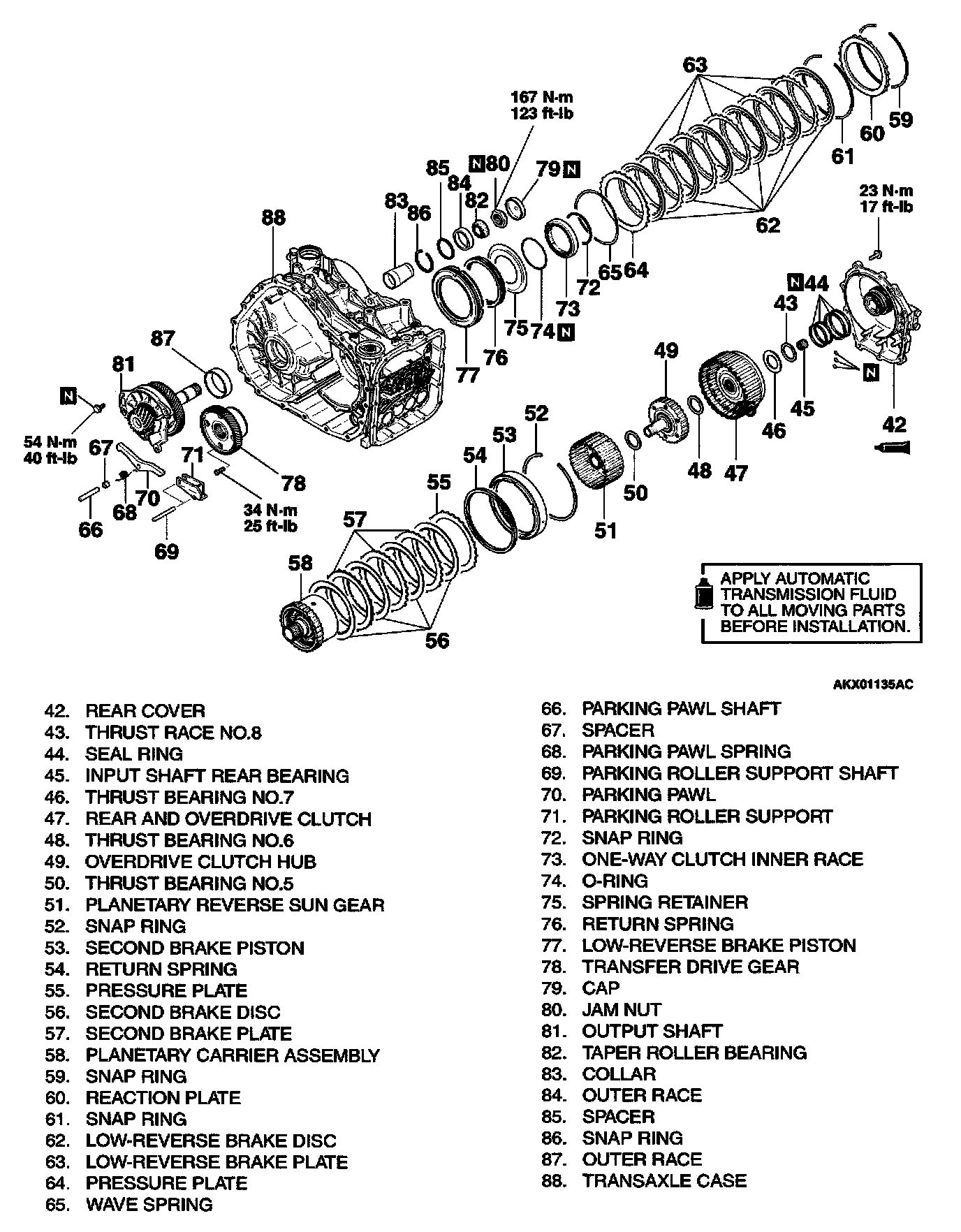

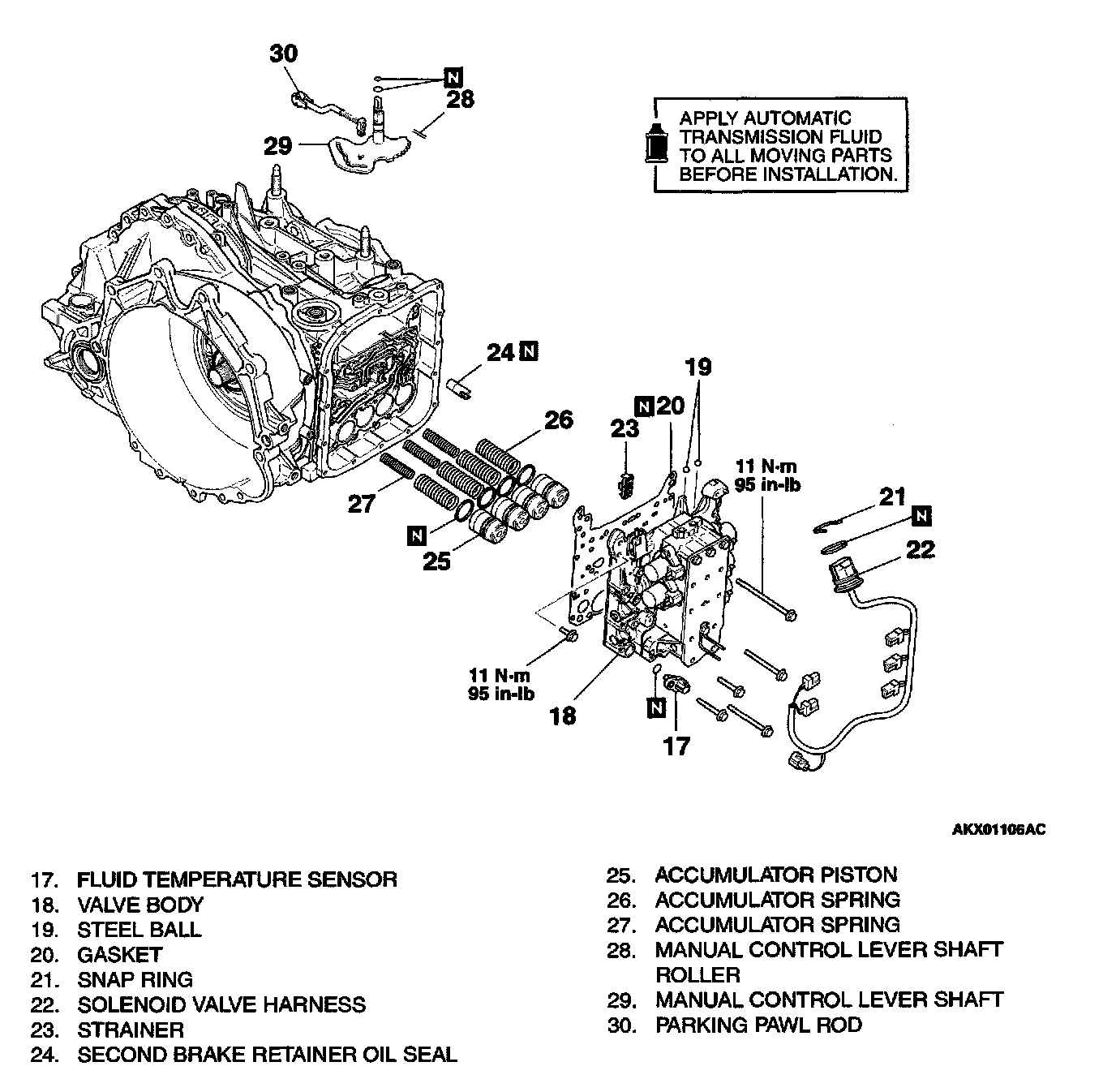

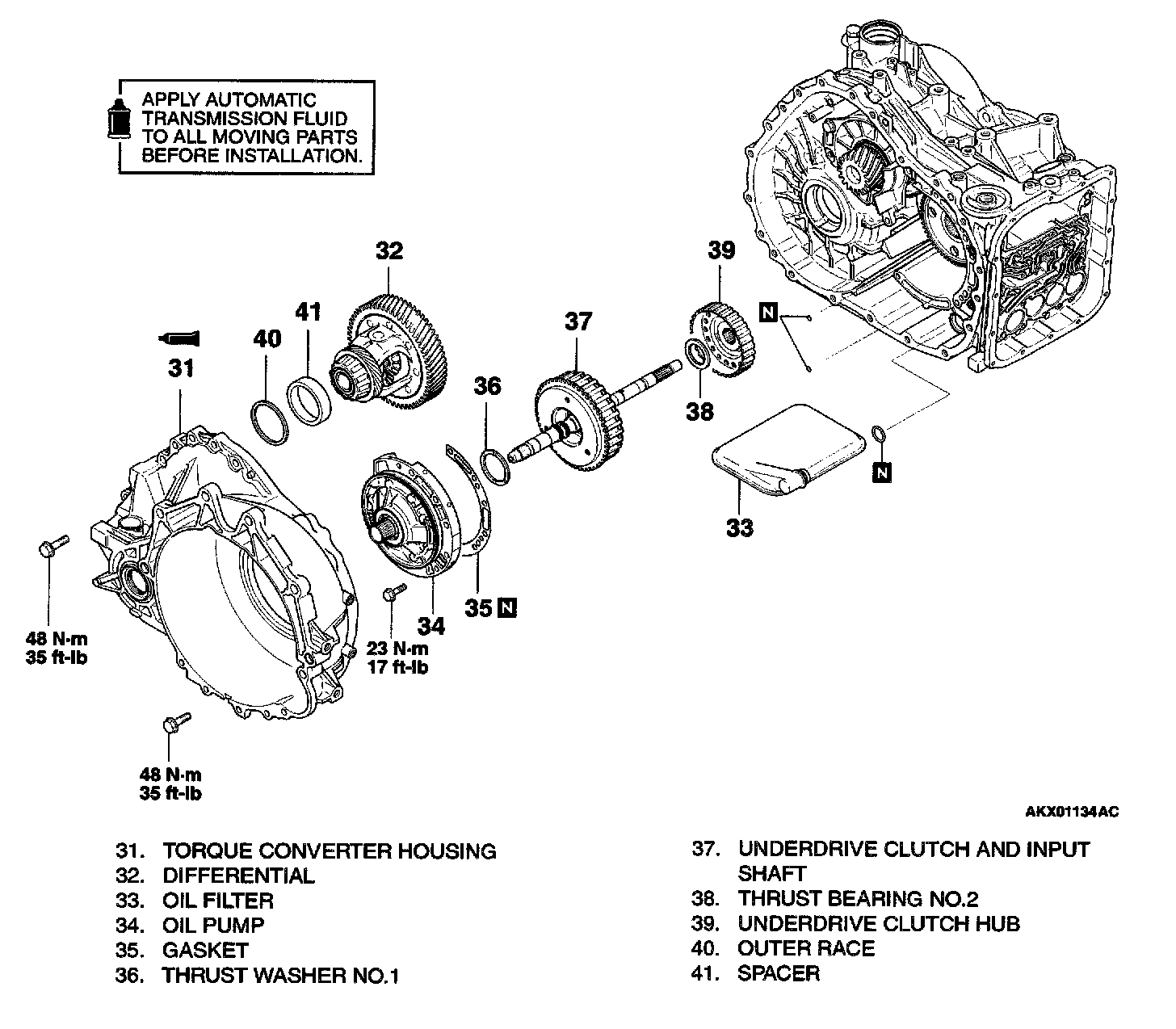

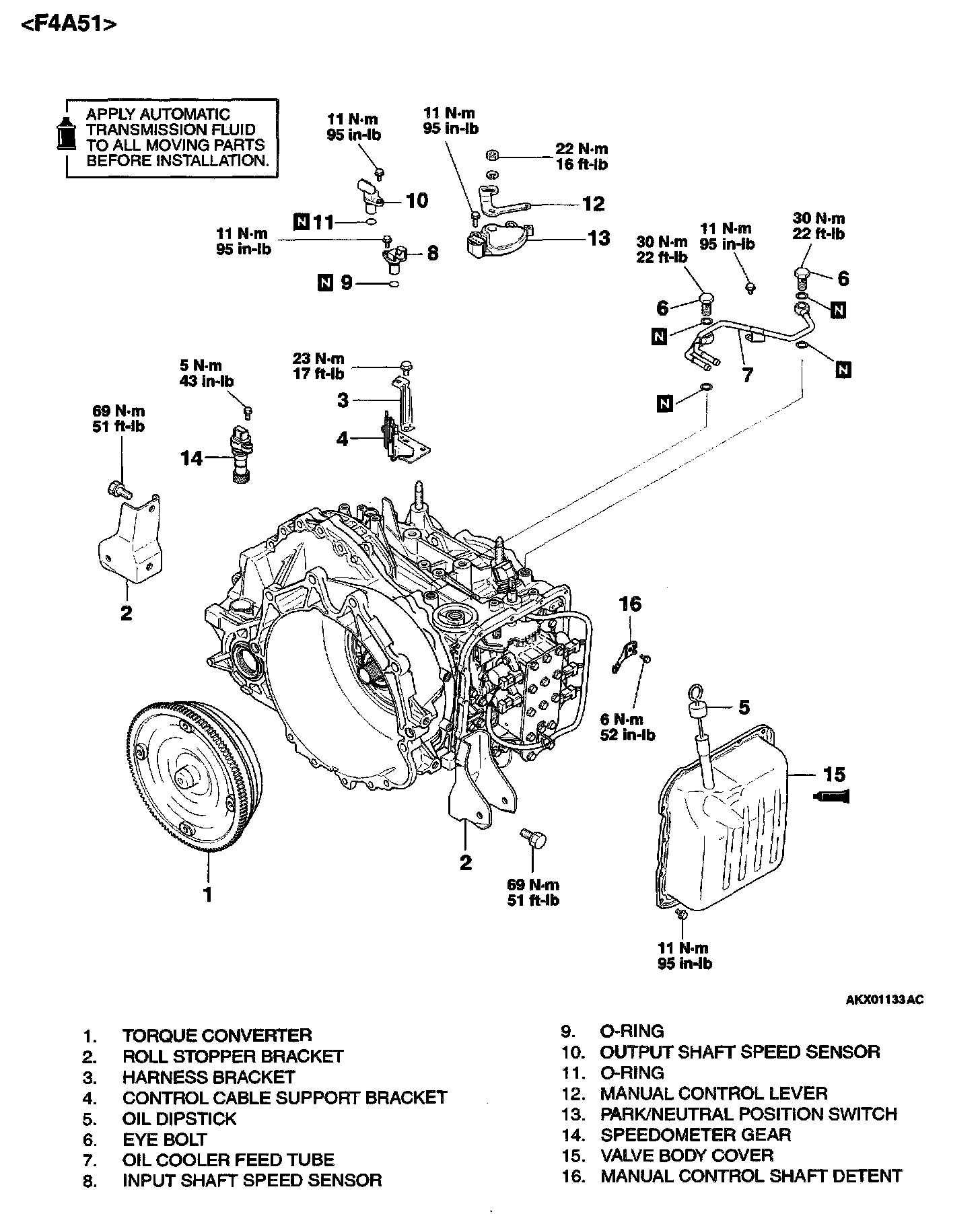

TRANSAXLE OVERHAUL W/ RELATED COMPONENTS
