Brake Proportioning/Combination Valve

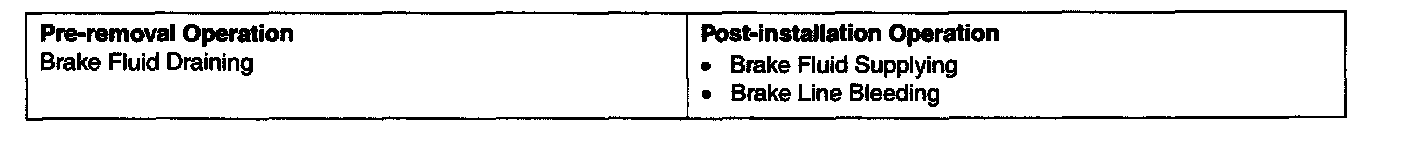

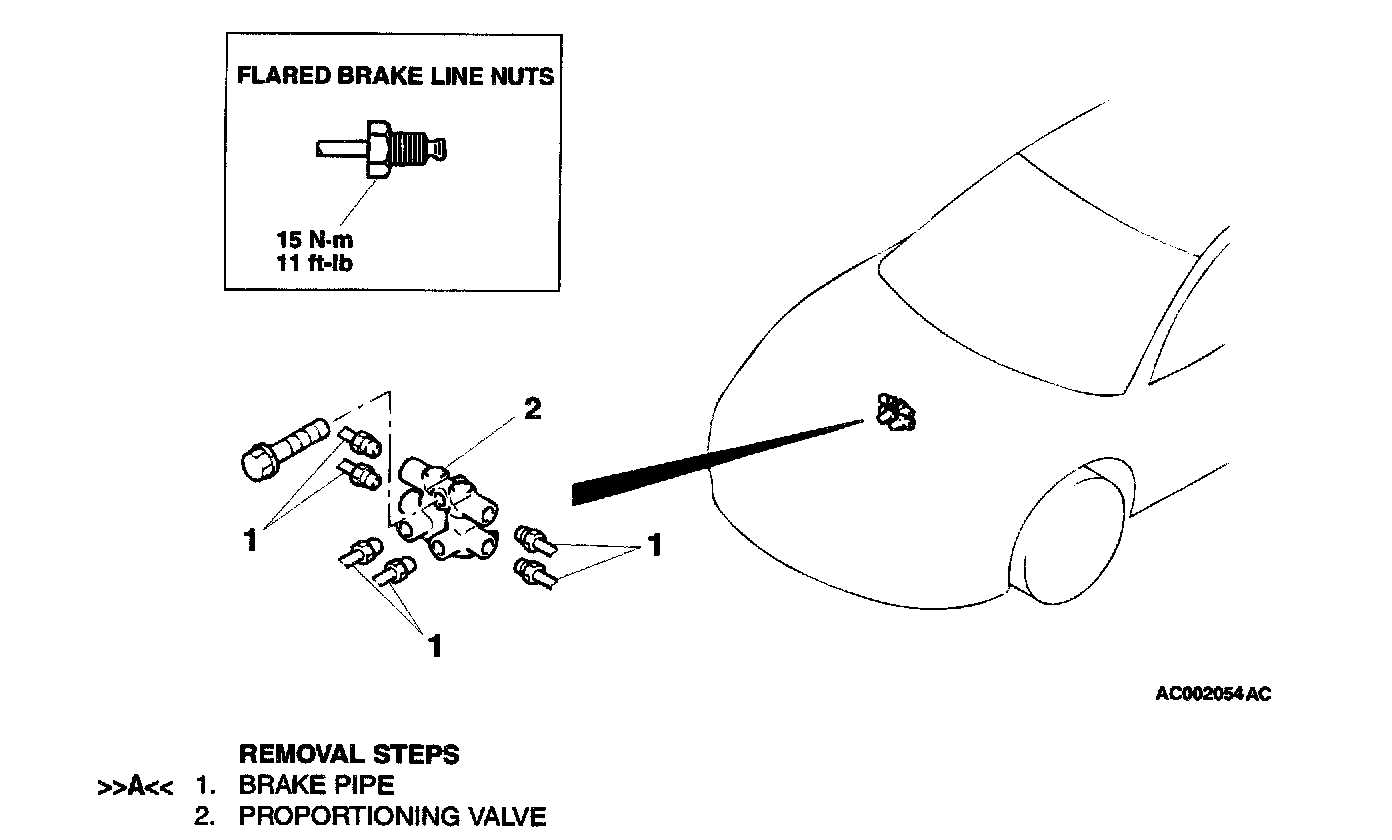

PROPORTIONING VALVE REPLACEMENT W/ RELATED COMPONENTS





Part 1 of 2





Part 2 of 2
