Computers and Control Systems: Diagrams

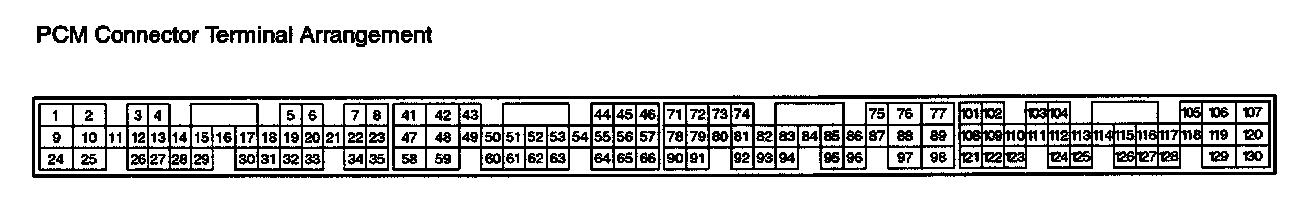

Terminal Arrangement:

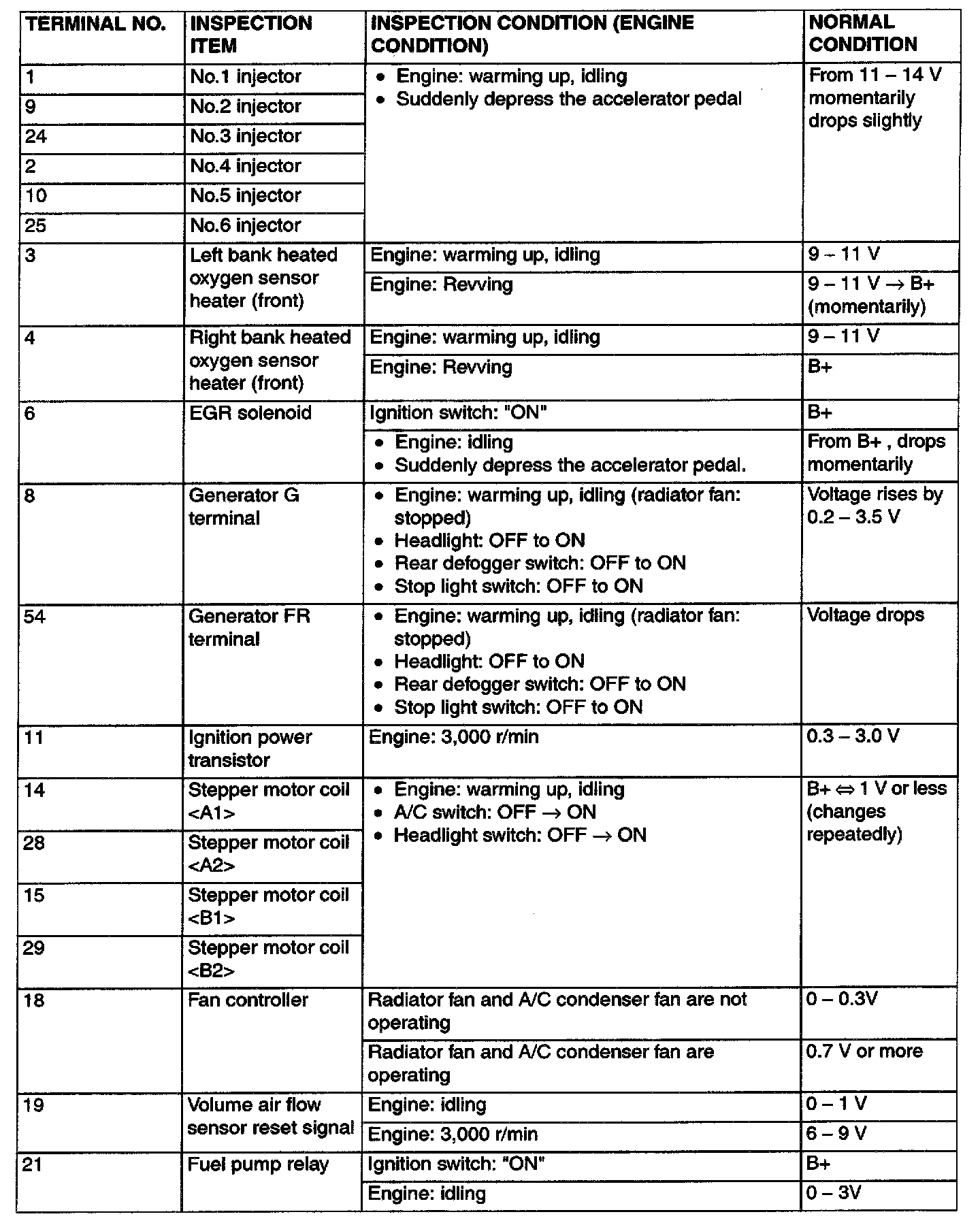

Terminal Voltage Check Chart, Part 1:

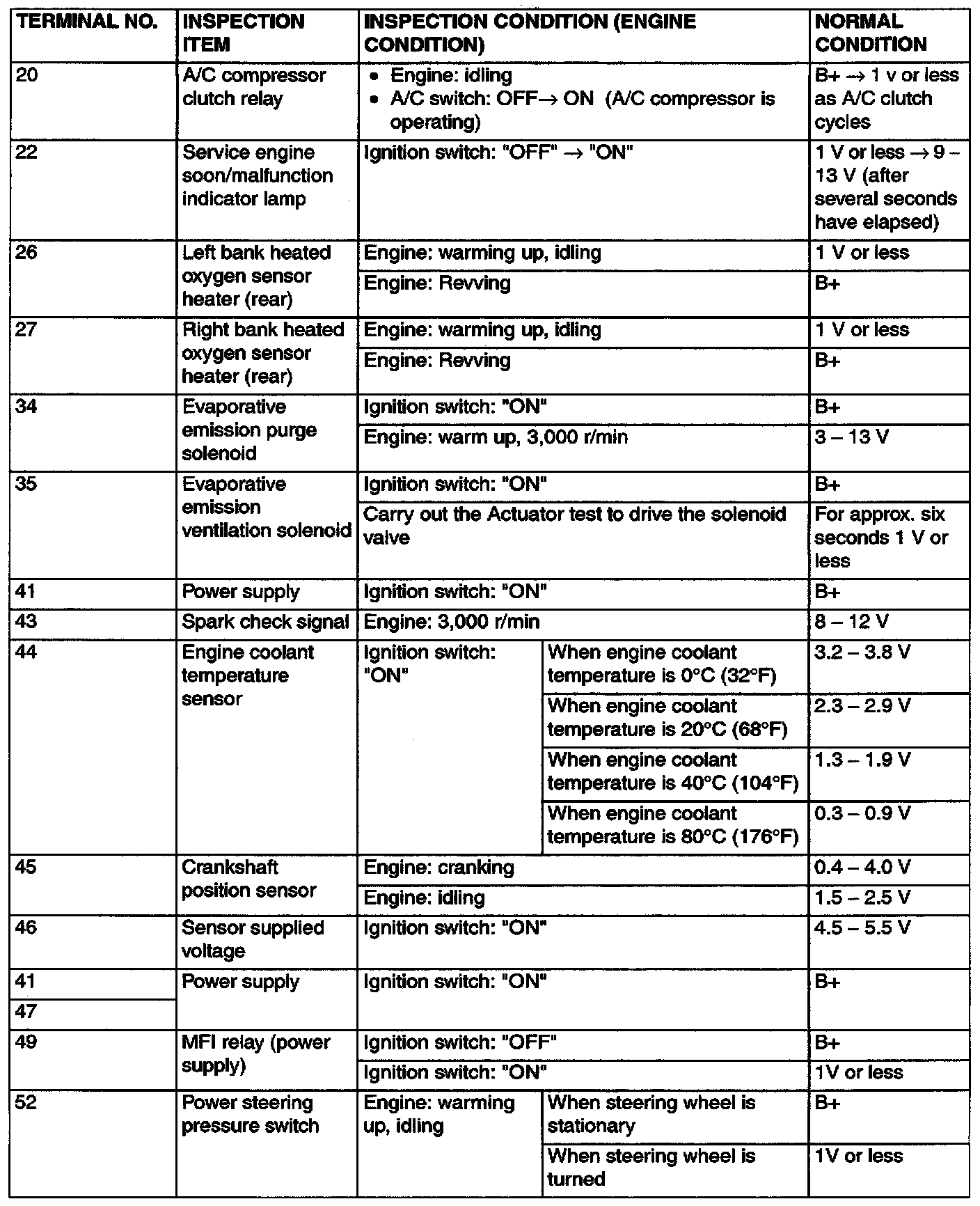

Part 2:

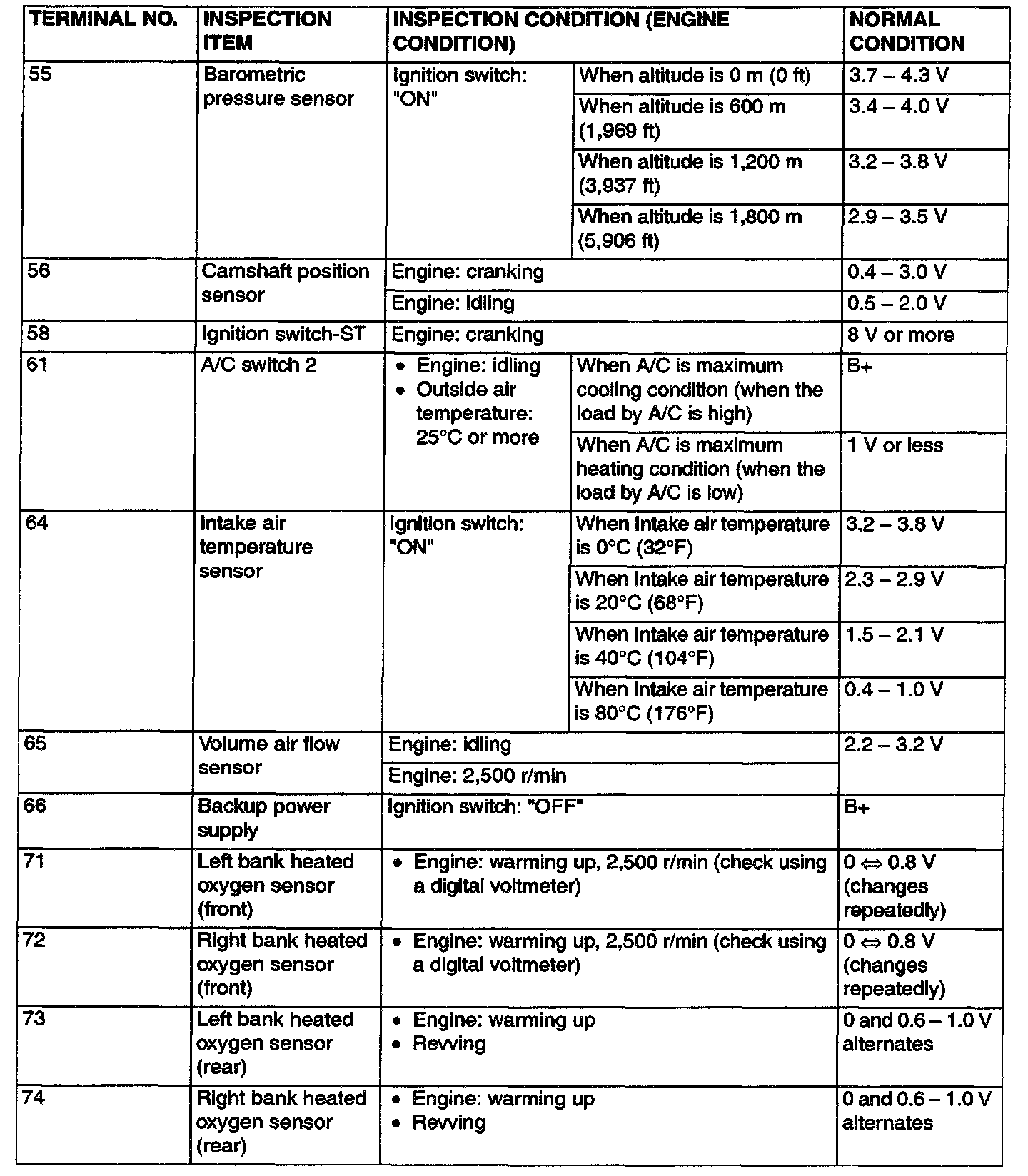

Part 3:



Part 4:
