System Diagram

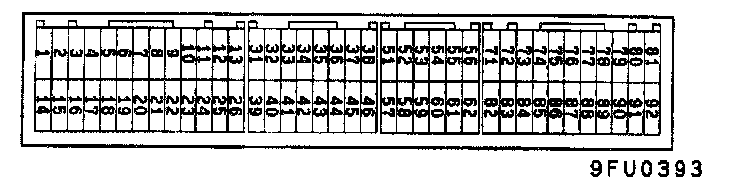

ECM Connector Terminal Arrangement:



PCM Connector Terminal Arrangement:

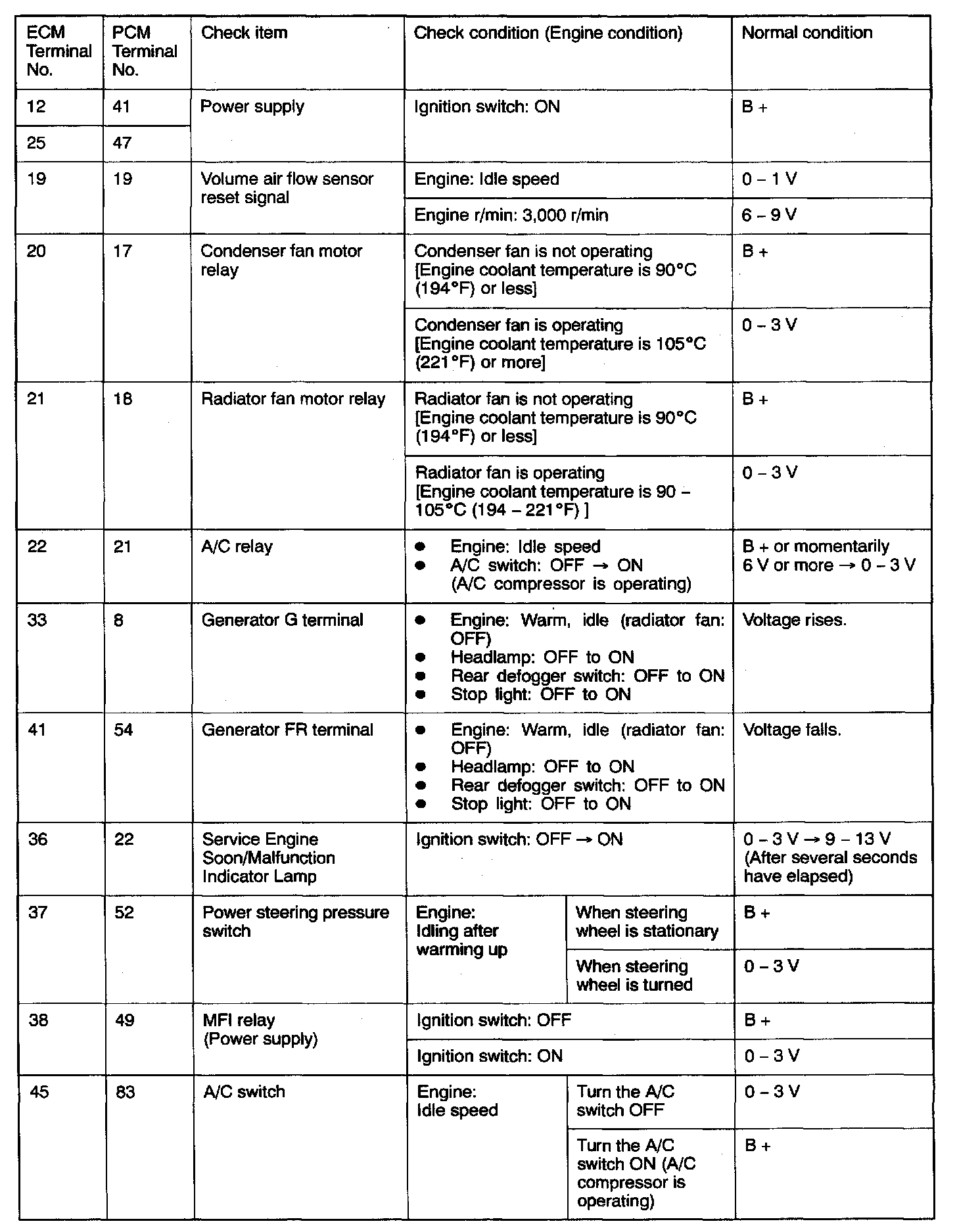

Part 1:

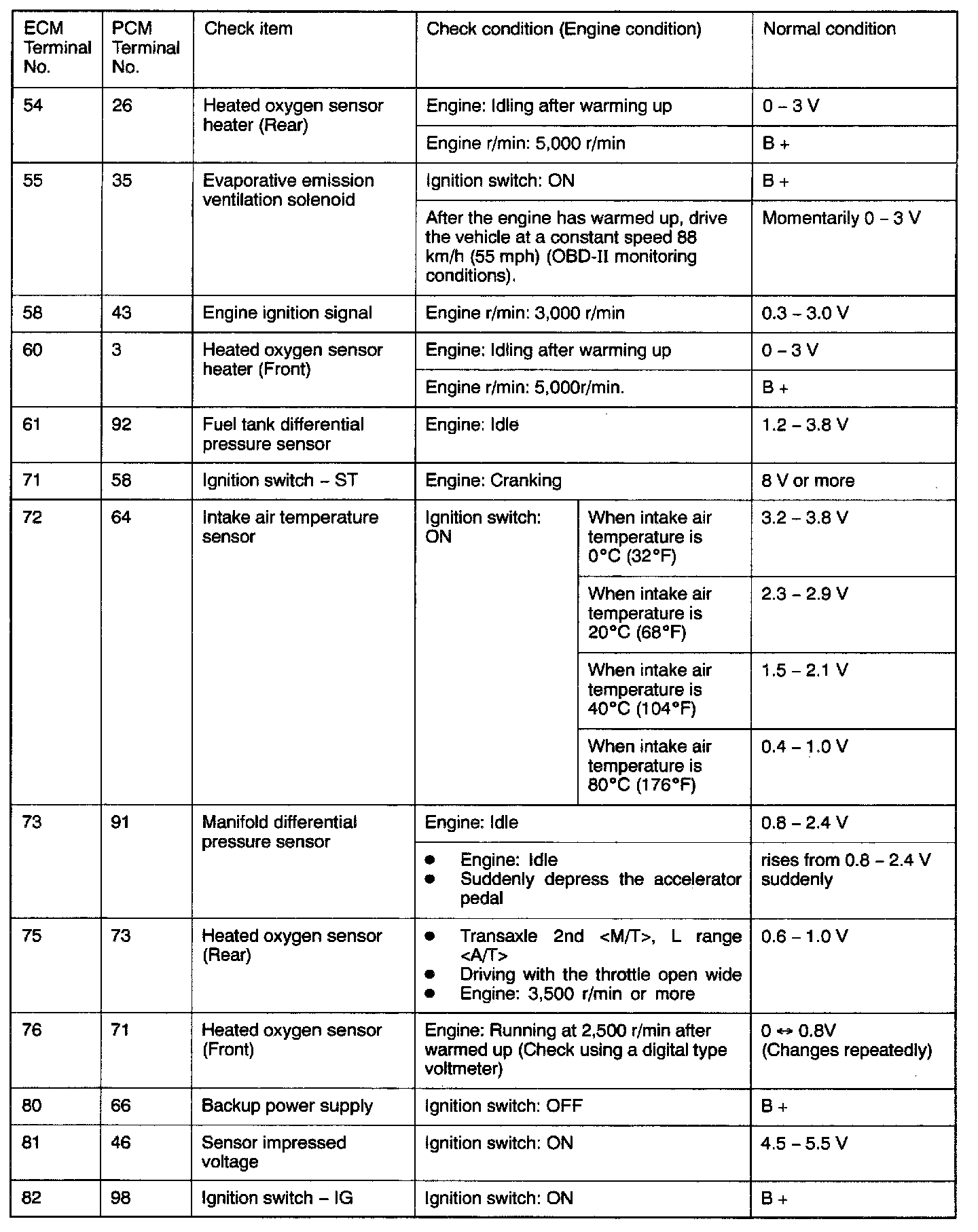

Part 2:

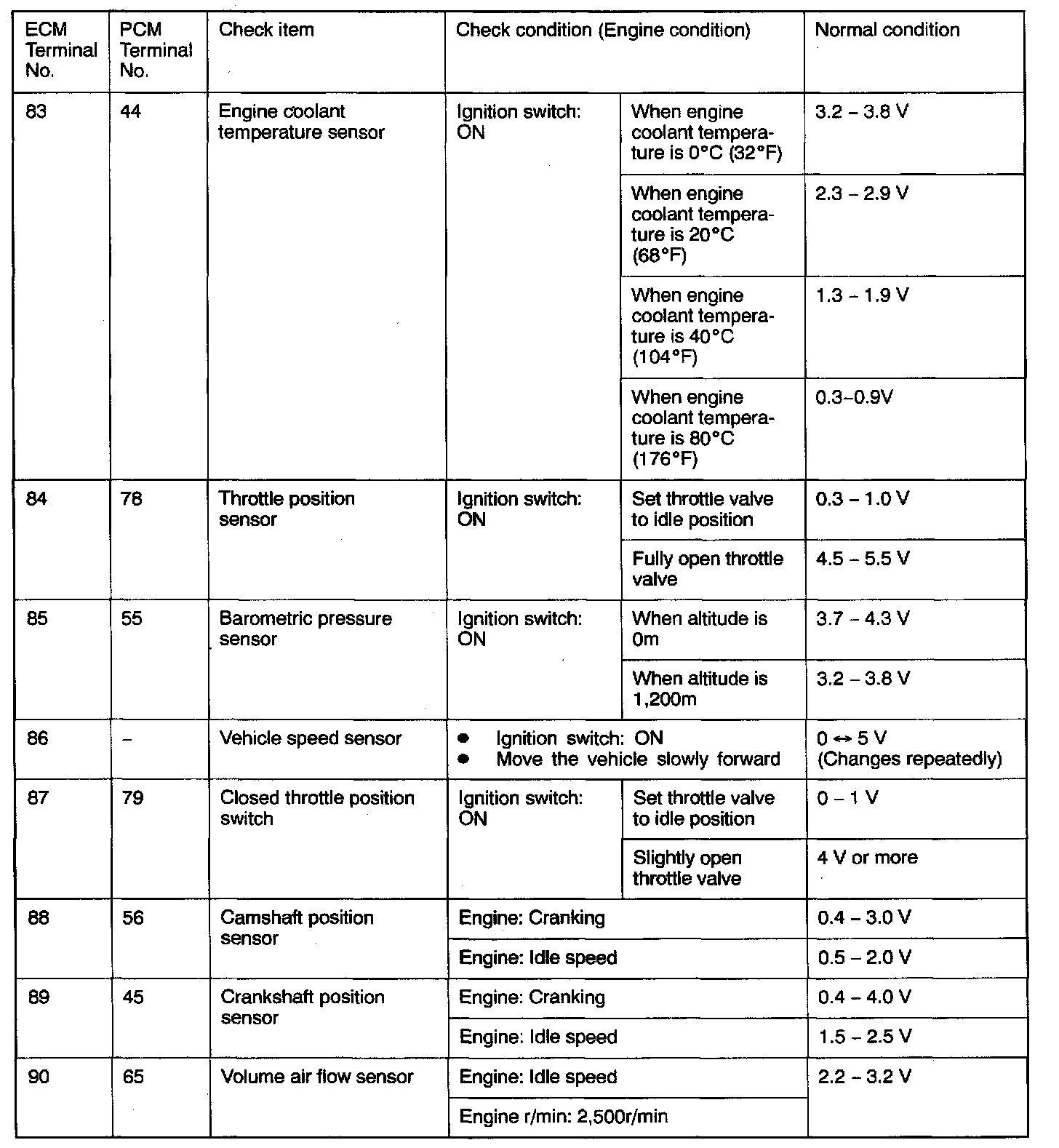

Part 3:



Part 4:
