Mirage Coupe LS L4-1834cc 1.8L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>

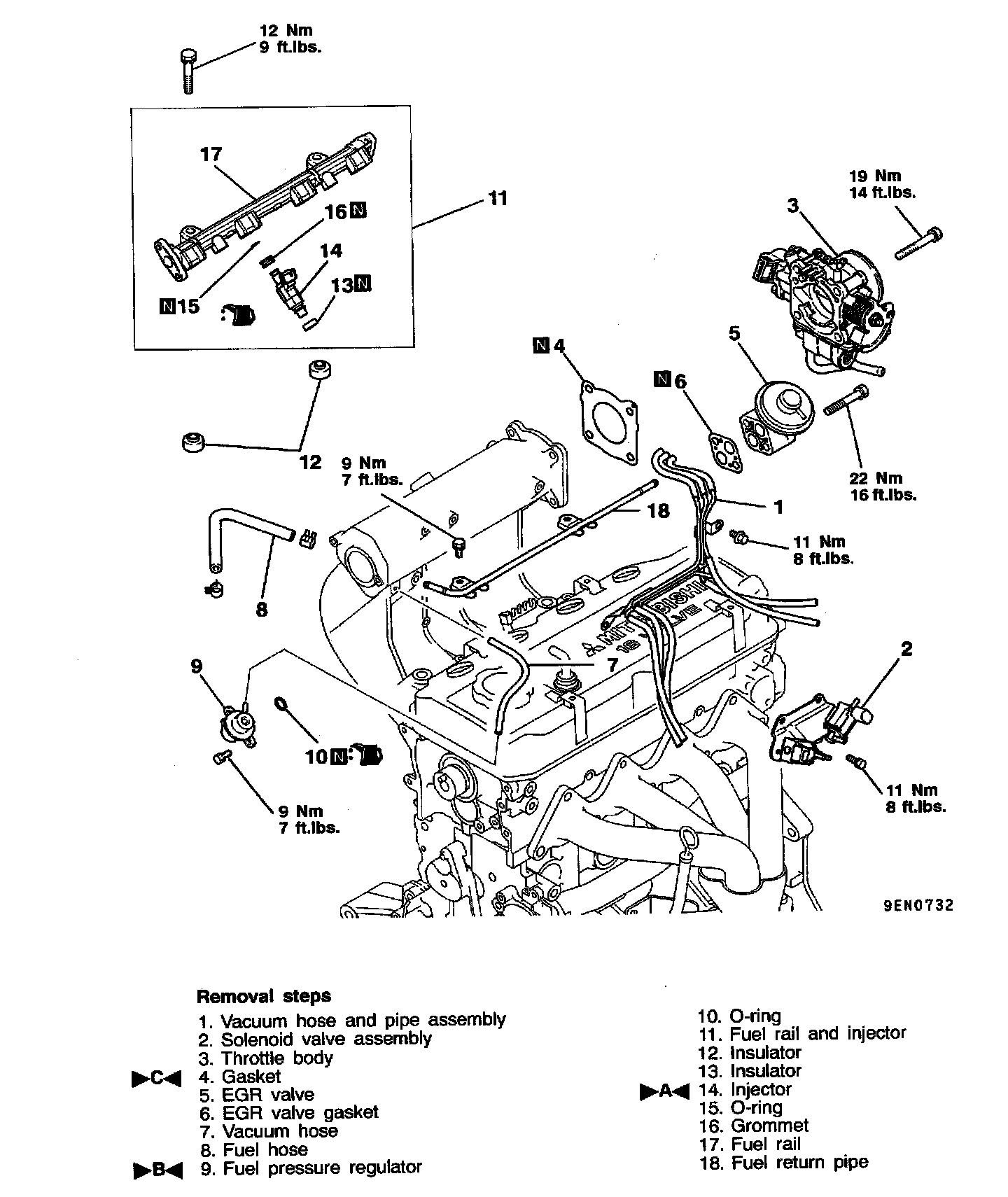

Exploded Views
>>
Engine
>>
System Diagram
>>
Engine Overhaul
>>
Fuel and Emission Control System
Fuel and Emission Control System
