Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2001
>>
Mirage Coupe LS L4-1834cc 1.8L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Unit Overhaul
>>
Transaxle
Transaxle

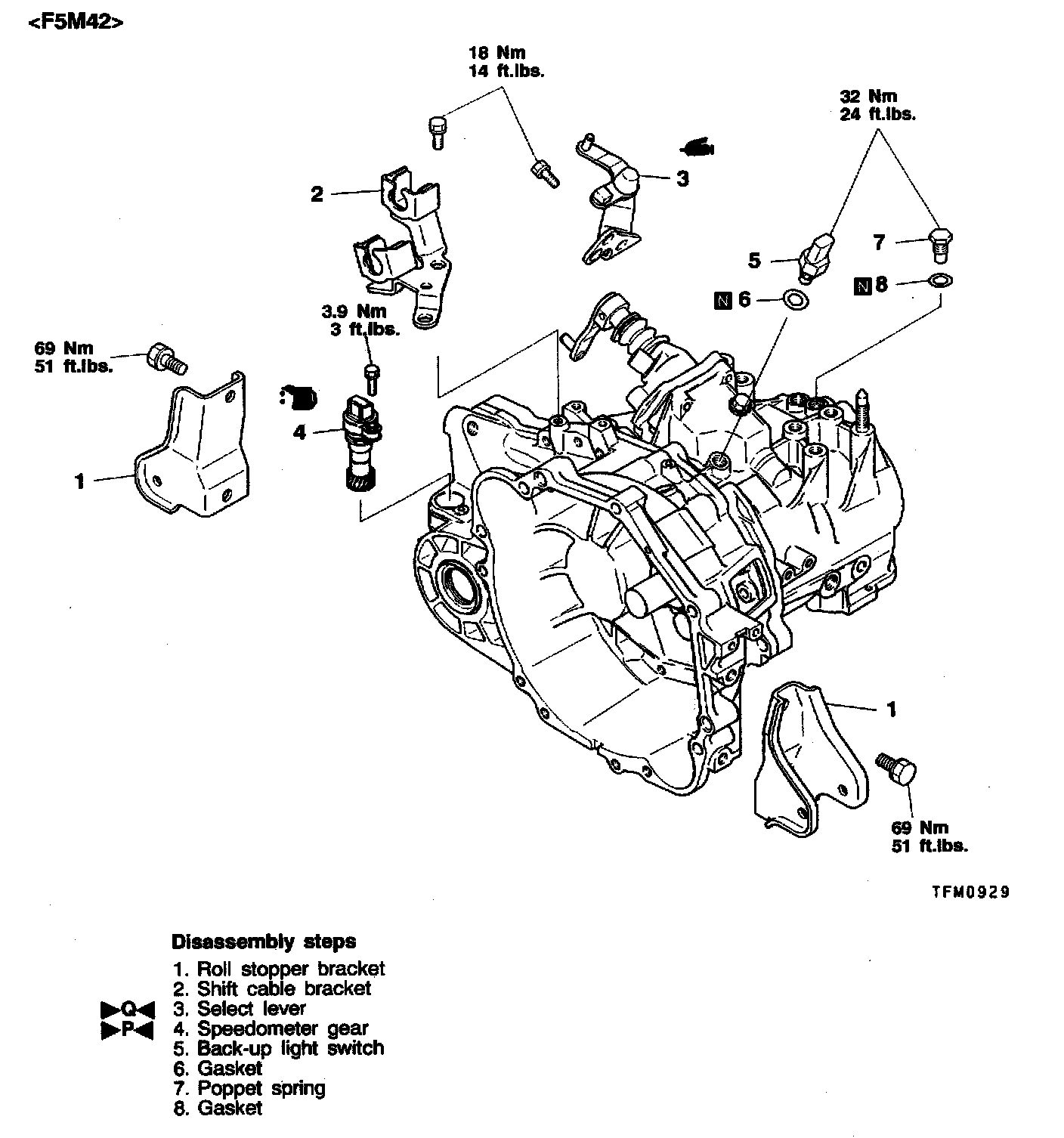

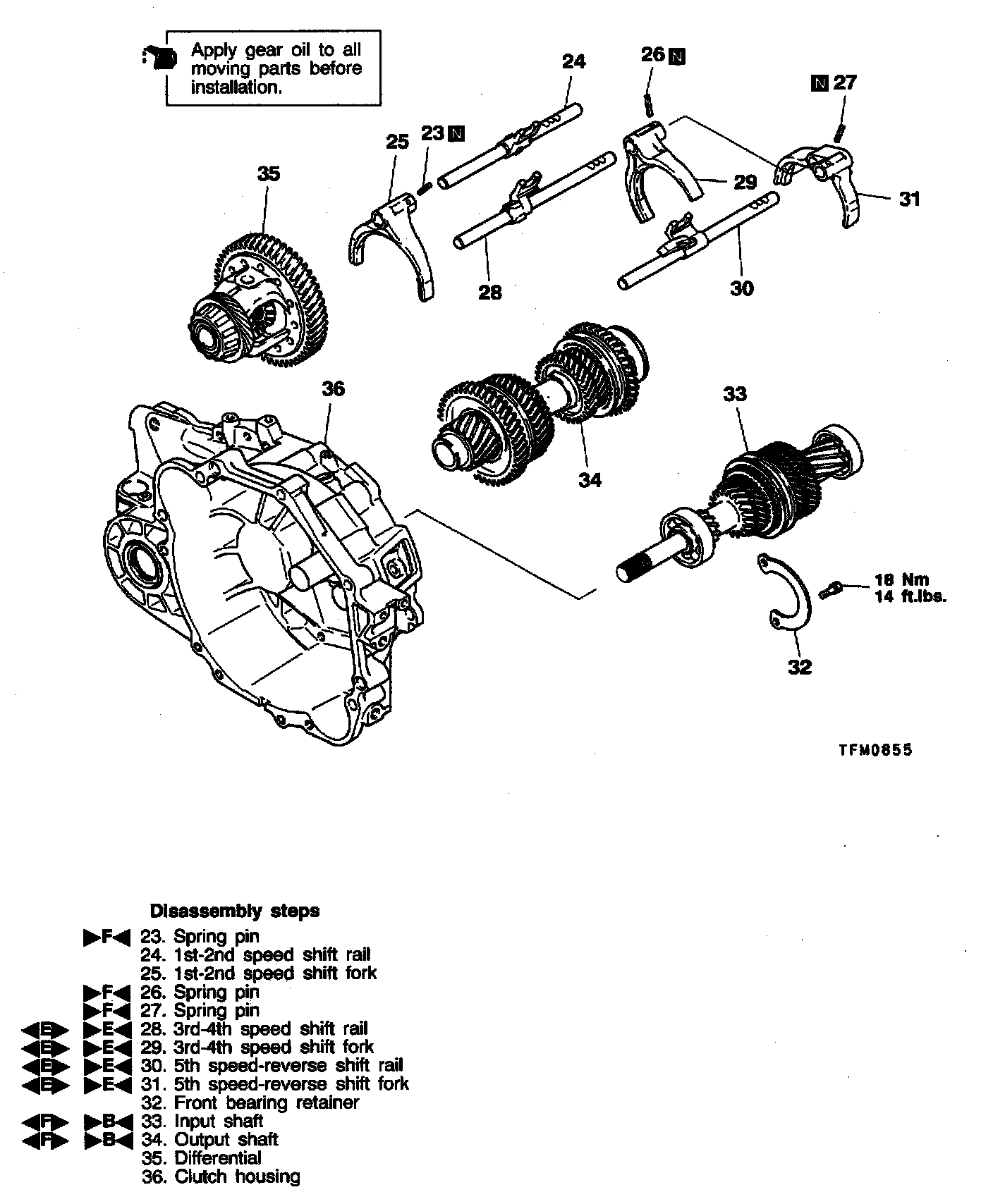

TRANSAXLE OVERHAUL W/ RELATED COMPONENTS
