Mirage Coupe LS L4-1834cc 1.8L SOHC MFI
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Control Unit
Control Unit

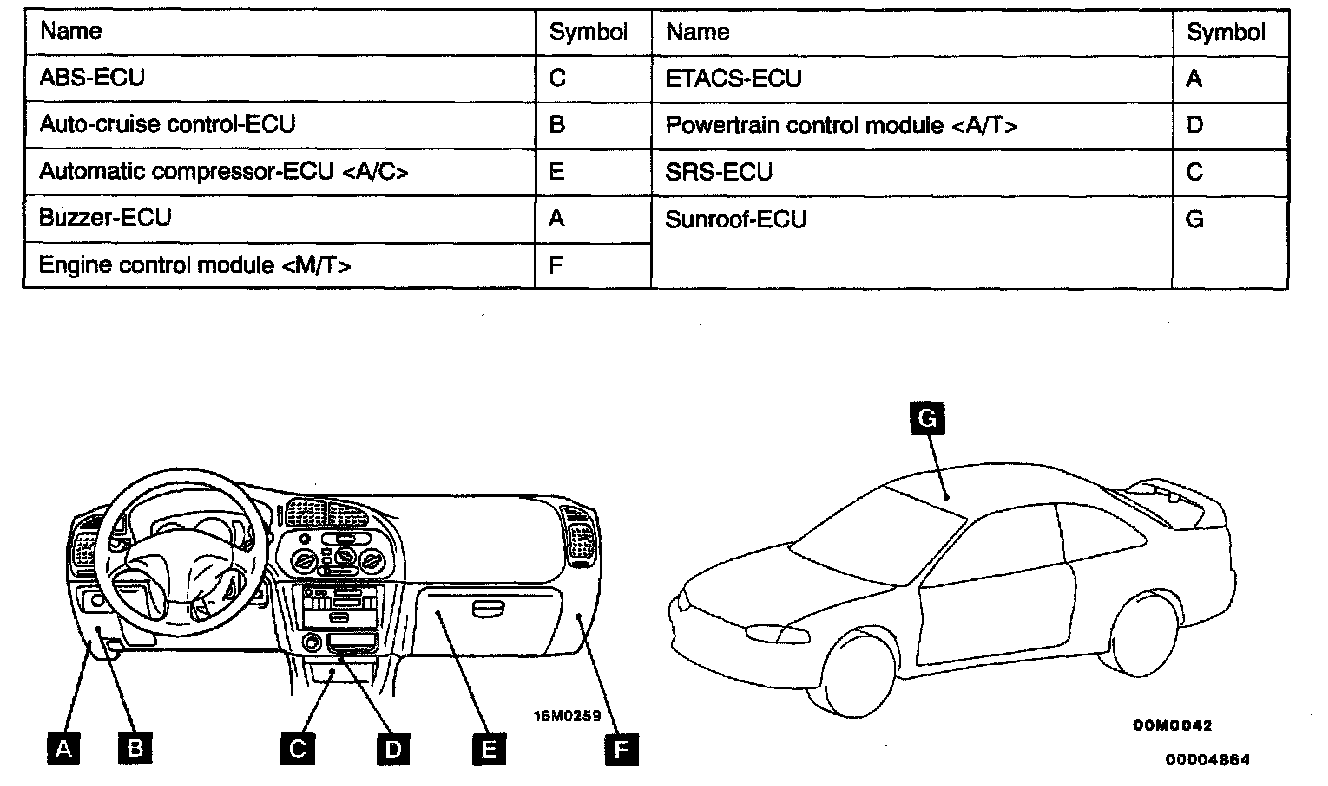

Location Chart And Overall View:

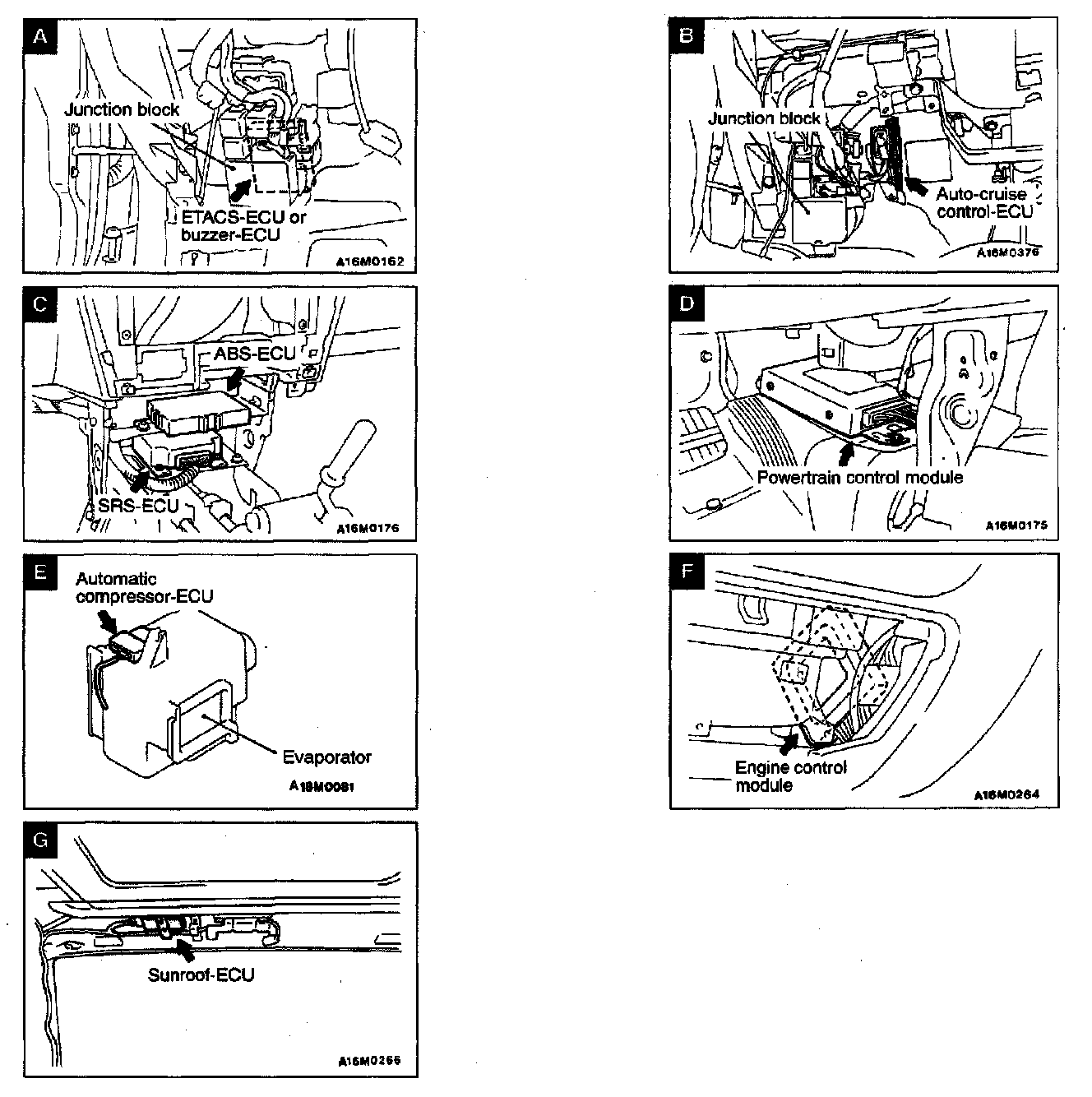

Views A - G:
