Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2002
>>
Diamante ES Sedan V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Axle Shaft Assembly
Axle Shaft Assembly
DRIVE SHAFT REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

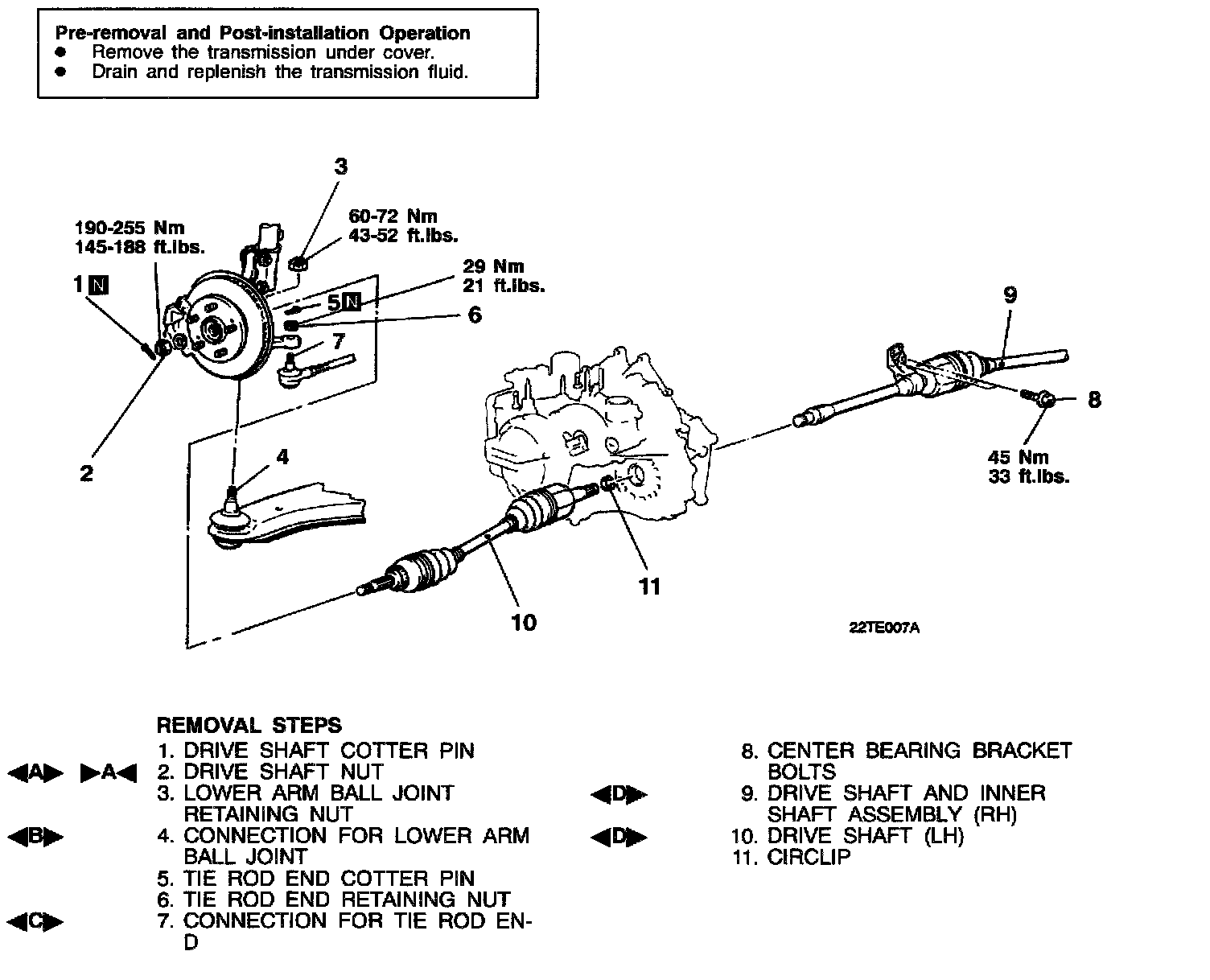

Replacement

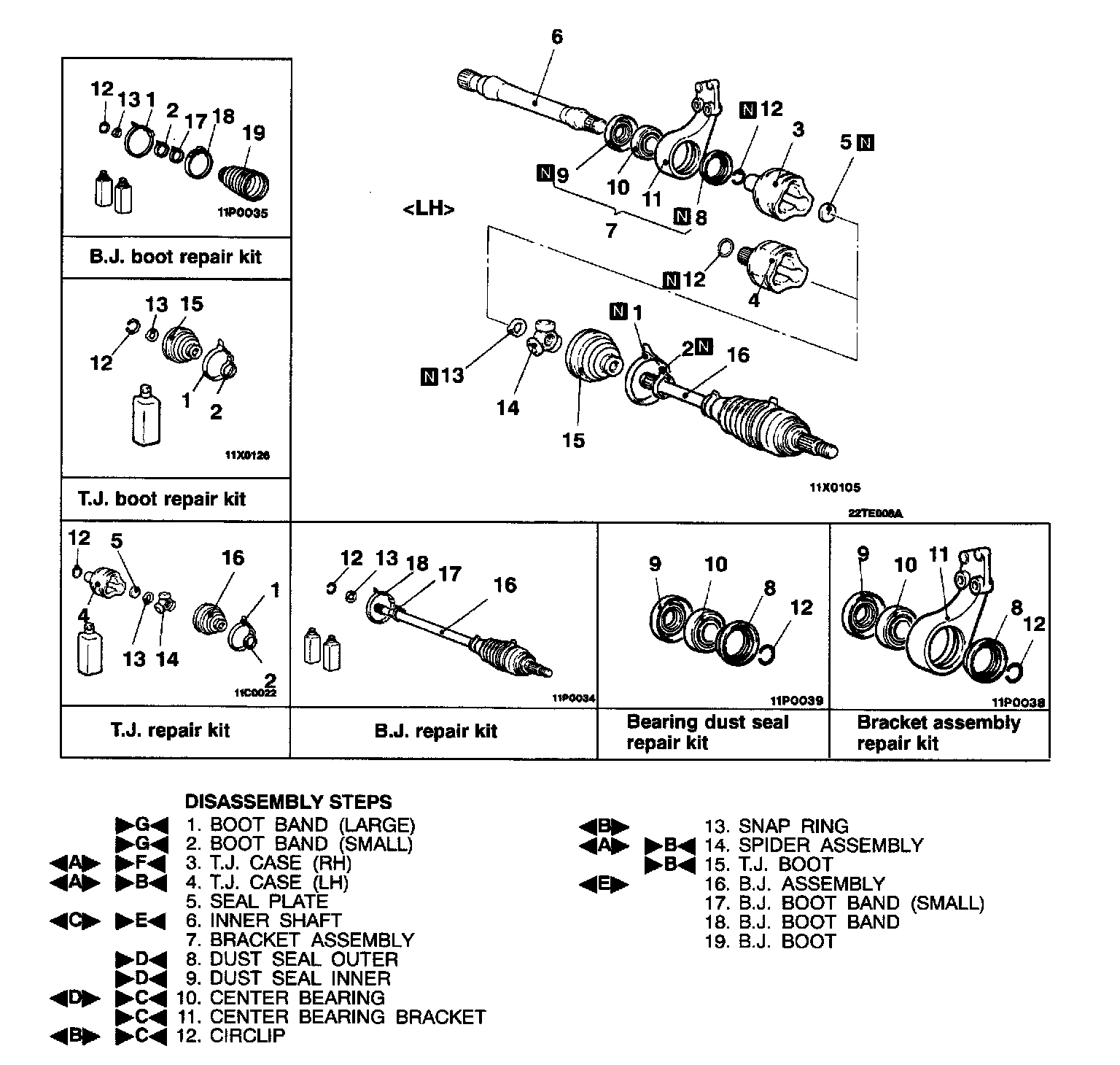

Overhaul
