Accelerator Pedal Position Sensor: Testing and Inspection

ACCELERATOR PEDAL POSITION SENSOR CHECK

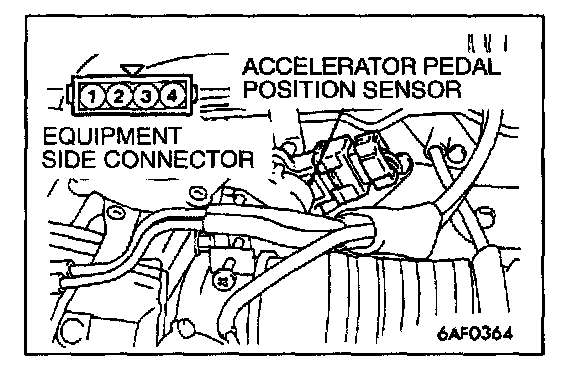

1. Disconnect the accelerator pedal position sensor connector.
2. Measure the resistance between the accelerator pedal position sensor side connector terminal 1 and terminal 4.

Standard value: 3.5 - 6.5 kohm

3. Measure the resistance between the accelerator pedal position sensor side connector terminal 1 and terminal 2.

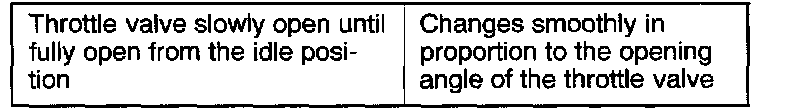

Normal Condition:

4. If the resistance is outside the standard value, or if it doesn't change smoothly, replace the accelerator pedal position sensor.

NOTE: Refer to accelerator pedal position sensor adjustment procedure.
