Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2002
>>
Diamante ES Sedan V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Locations
>>
Component Locations
Component Locations

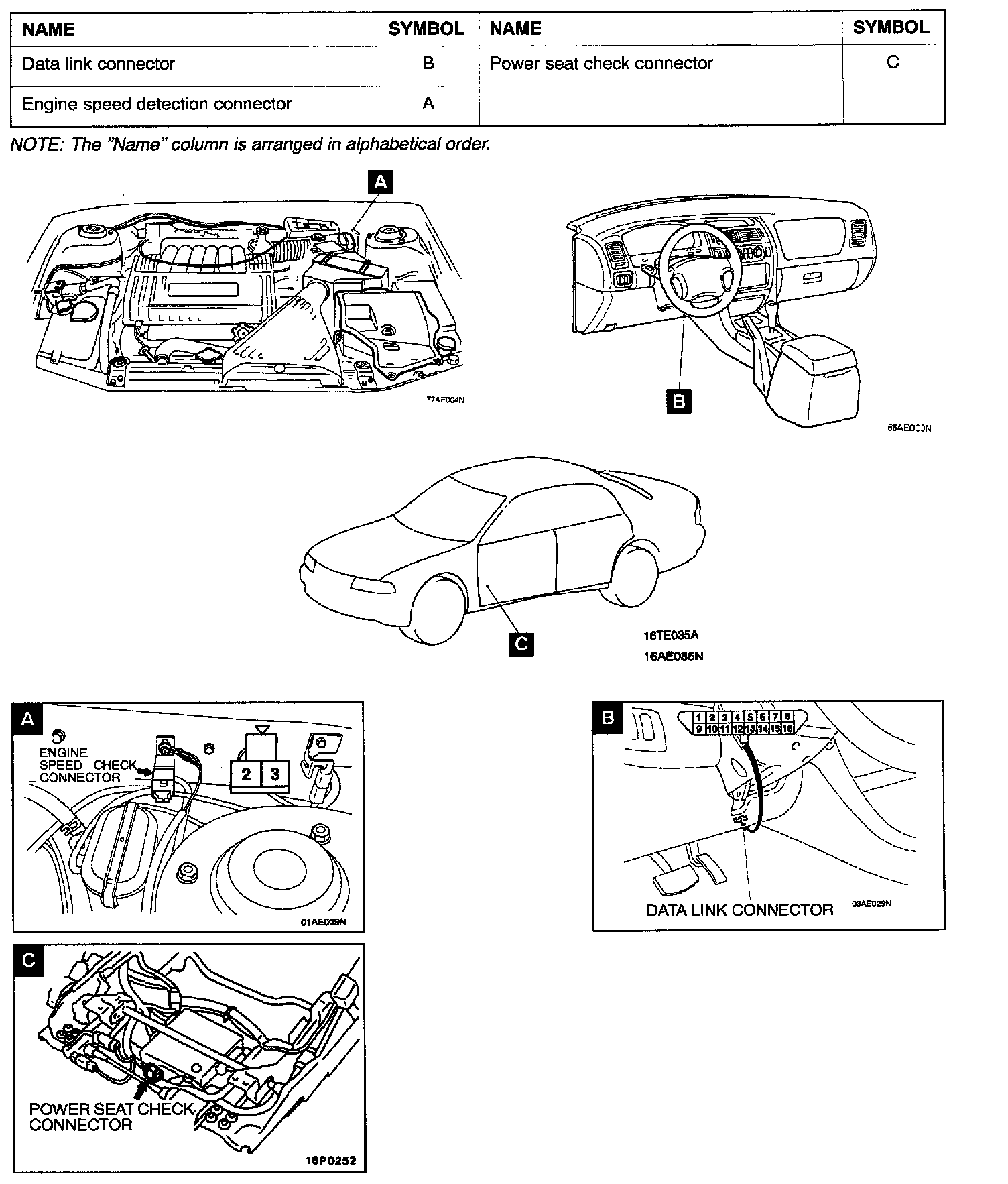

Inspection Terminal Location Index, Overall View & Views A - C:
