Throttle Position Sensor: Testing and Inspection
THROTTLE POSITION SENSOR CHECK

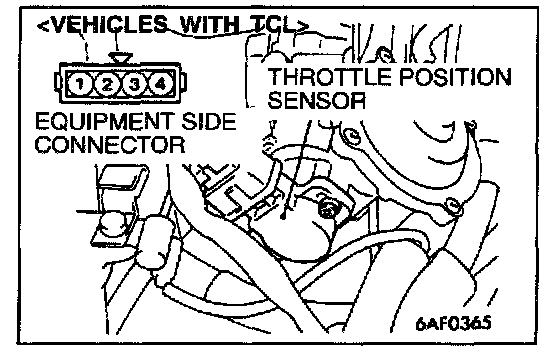

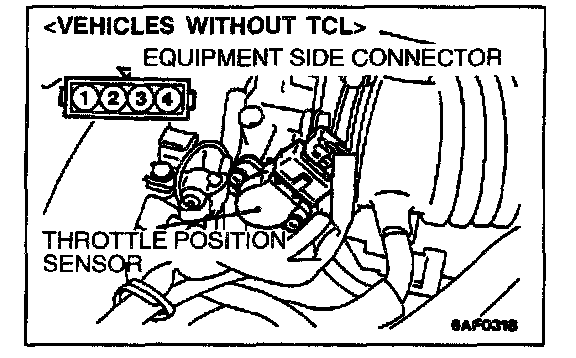

1. Disconnect the throttle position sensor connector.
2. Measure the resistance between the throttle position sensor side connector terminal 1 and terminal 4.
Standard value: 3.5 - 6.5 kohm
3. Measure the resistance between the throttle position sensor side connector terminal 3 and terminal 4.

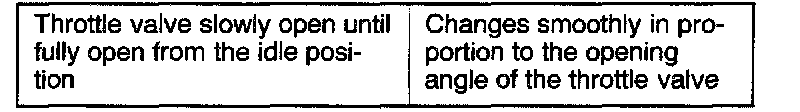

Normal Condition:
4. If the resistance is outside the standard value, or if it doesn't change smoothly, replace the throttle position sensor.
NOTE: Refer to throttle position sensor adjustment procedure
