Diamante ES Sedan V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Locations
Transmission Control Systems: Locations

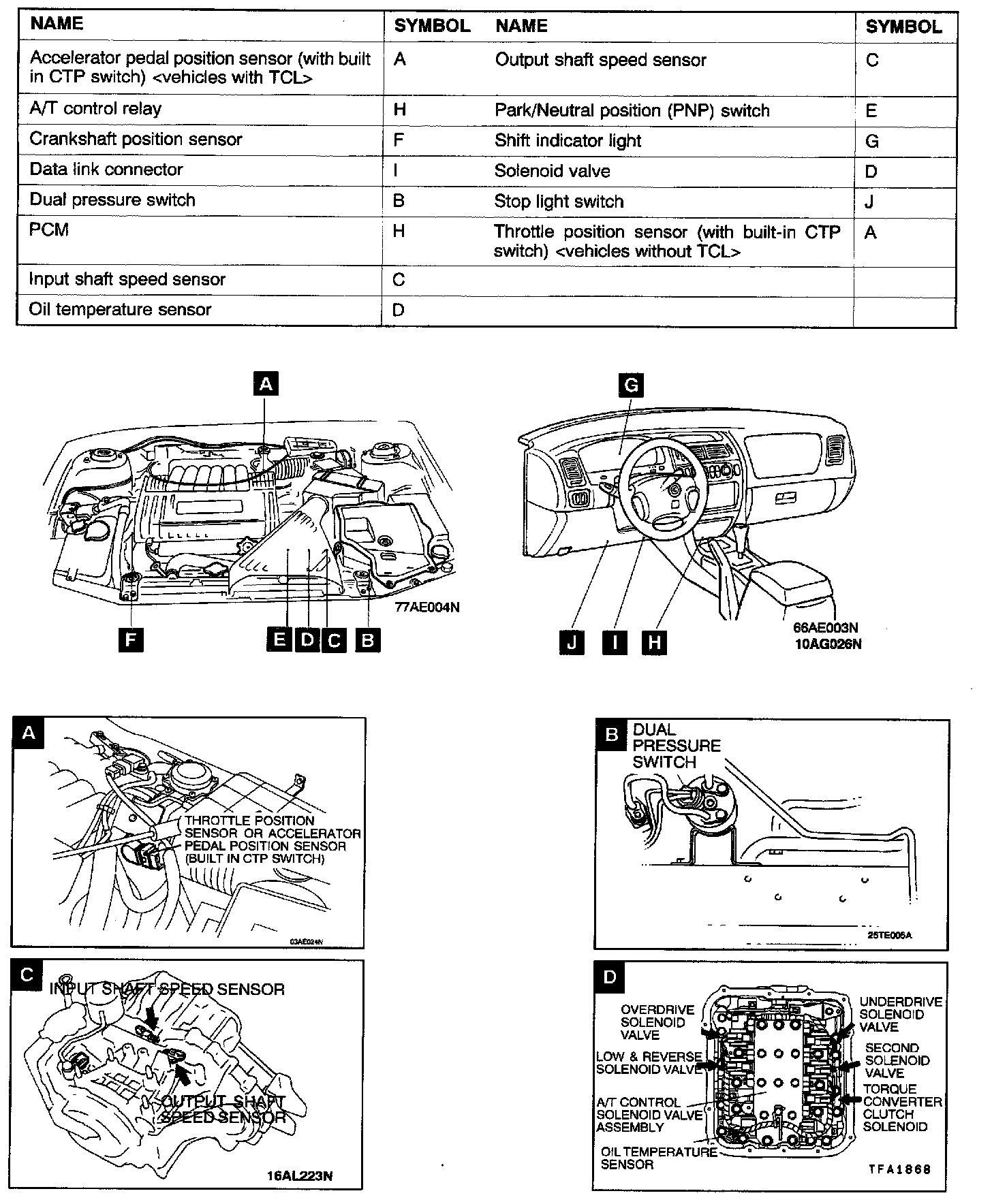

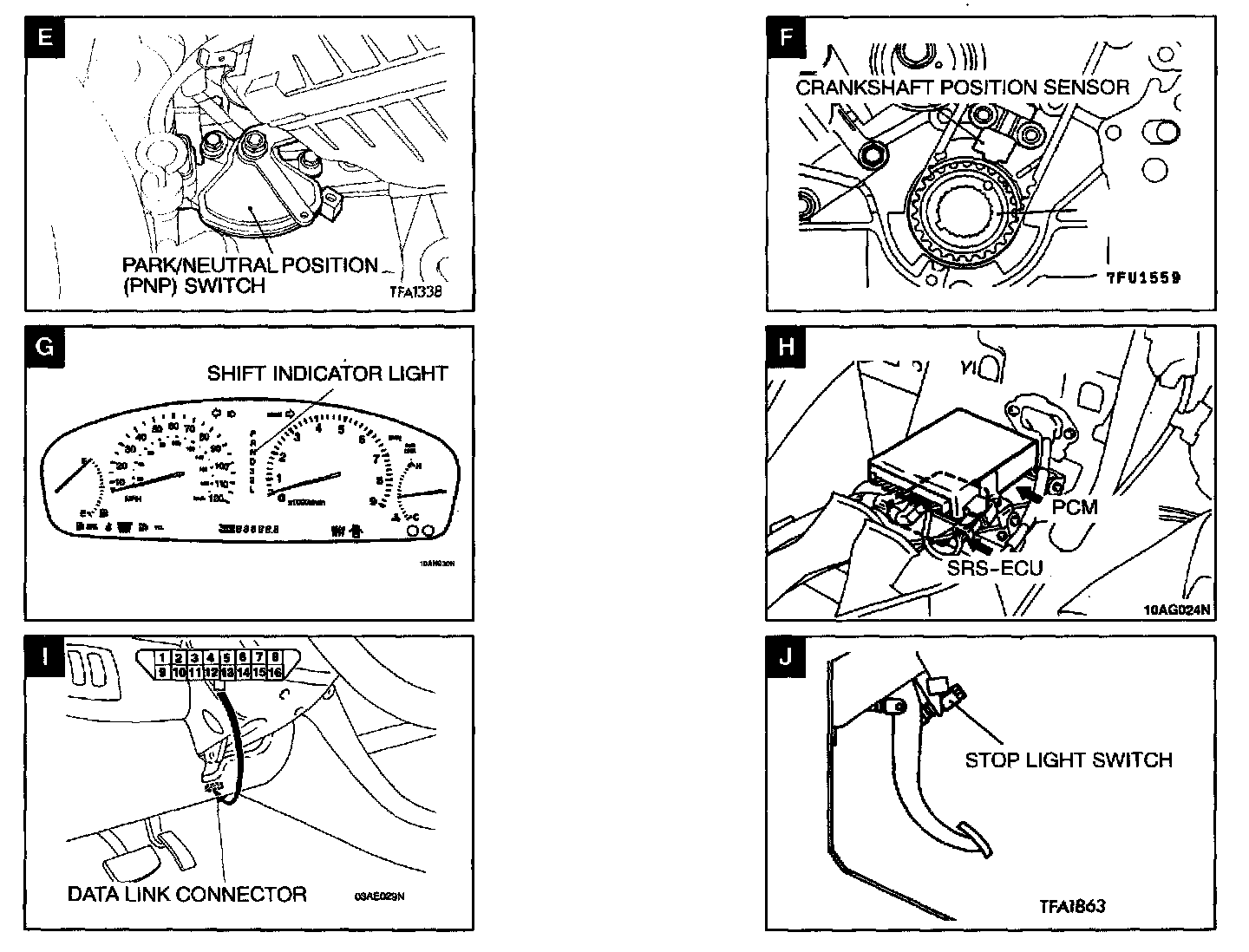

A/T CONTROL COMPONENT LOCATION
