Scan Tool Testing and Procedures

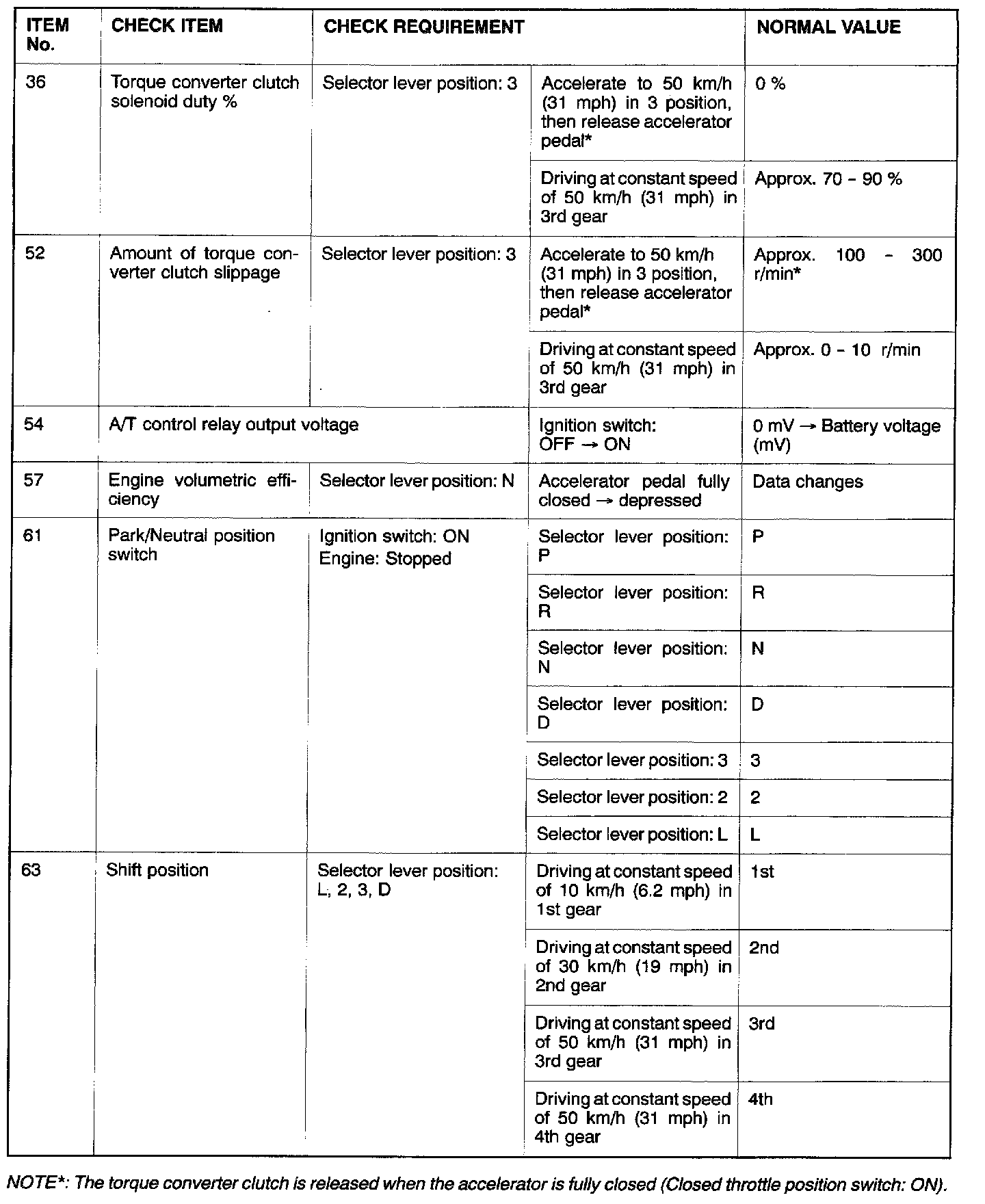

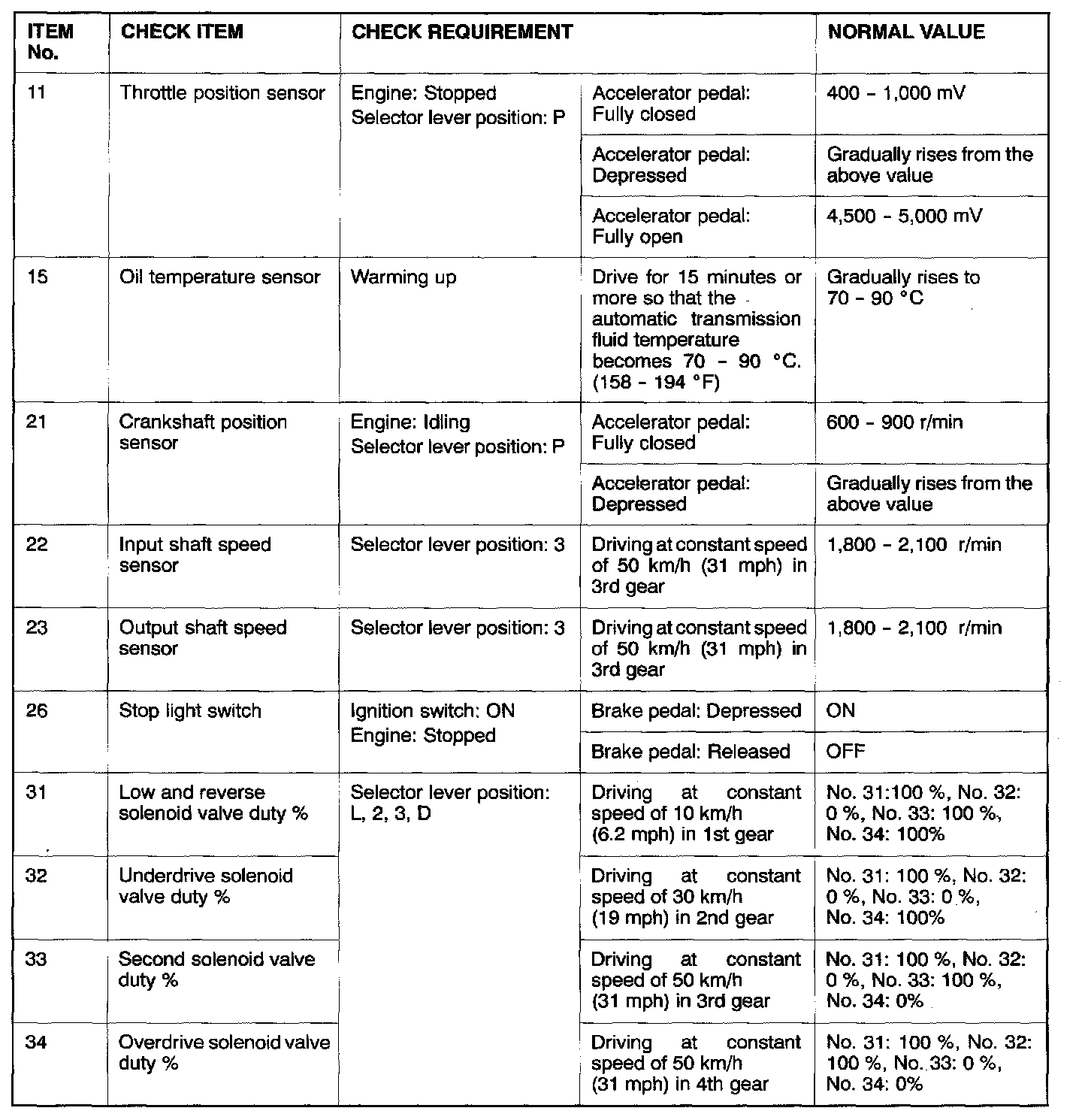

SERVICE DATA REFERENCE TABLE

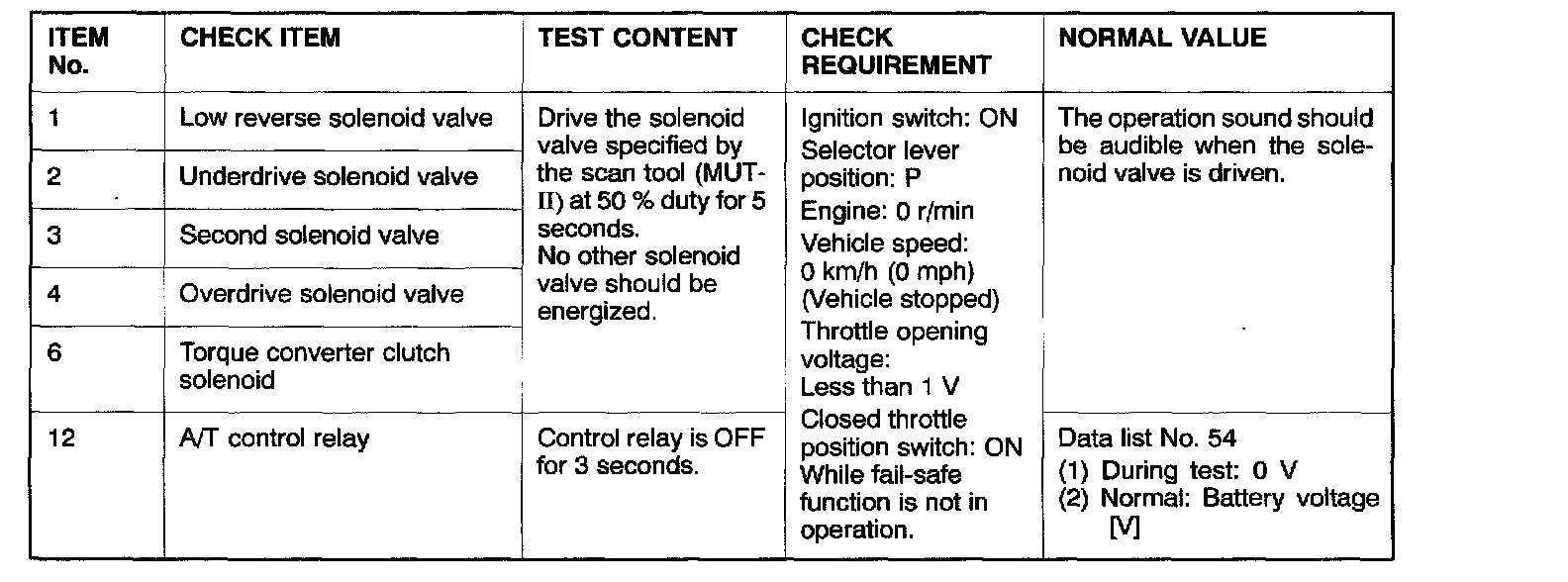

ACTUATOR
TEST JUDGEMENT VALUE

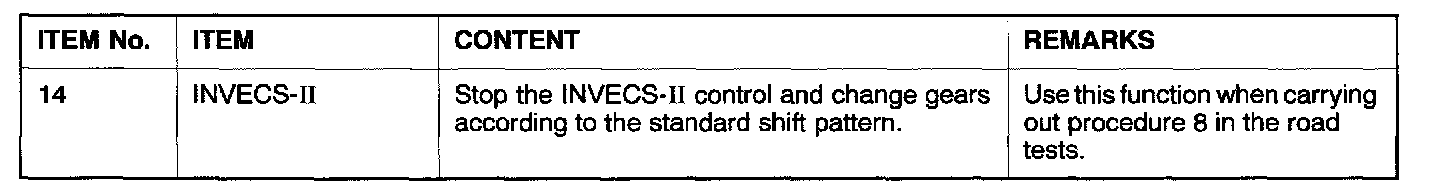

INVECS-II CANCEL COMMAND
