Electrical Diagrams

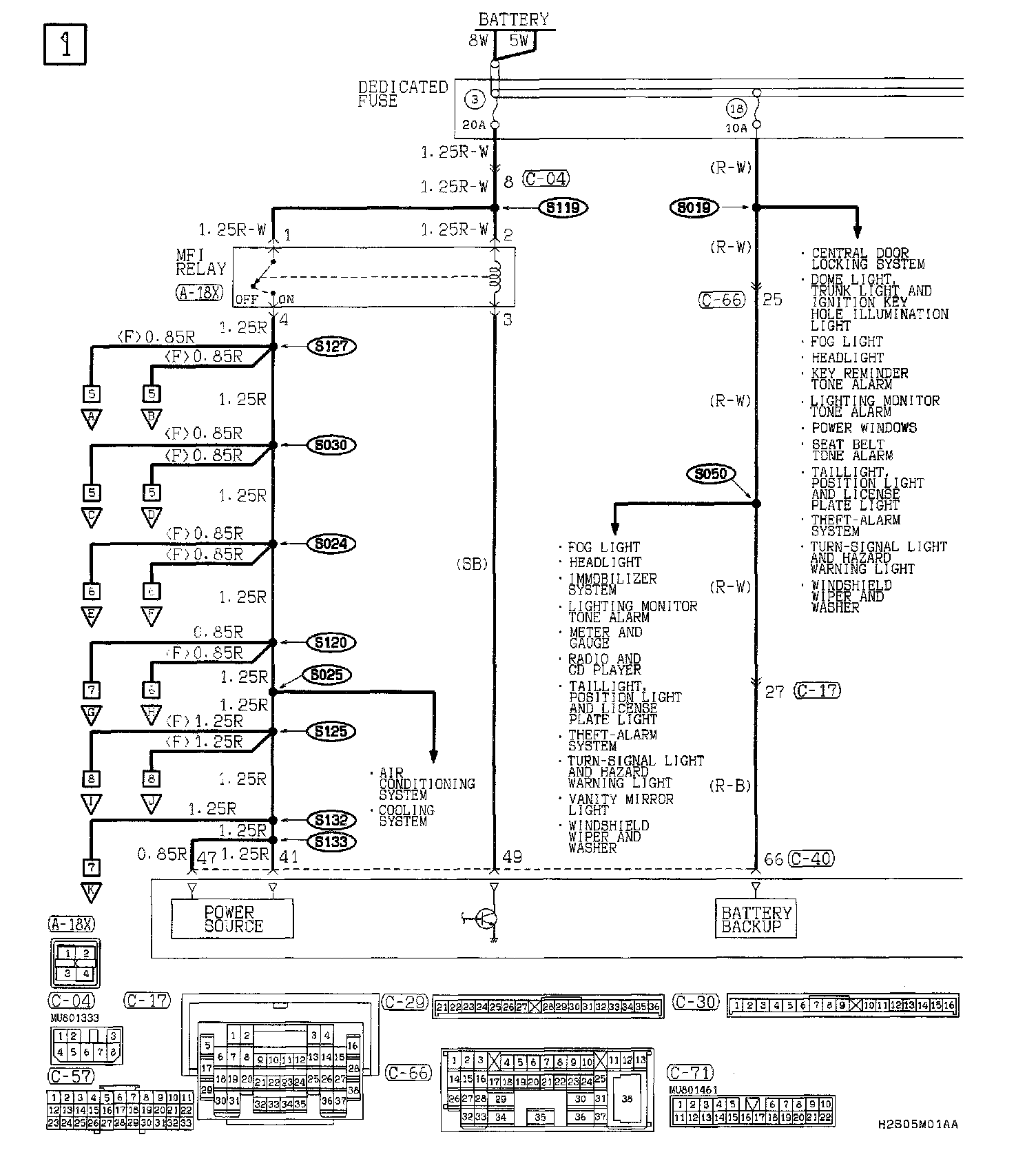

MFI System (3.0L Engine) Part 1:

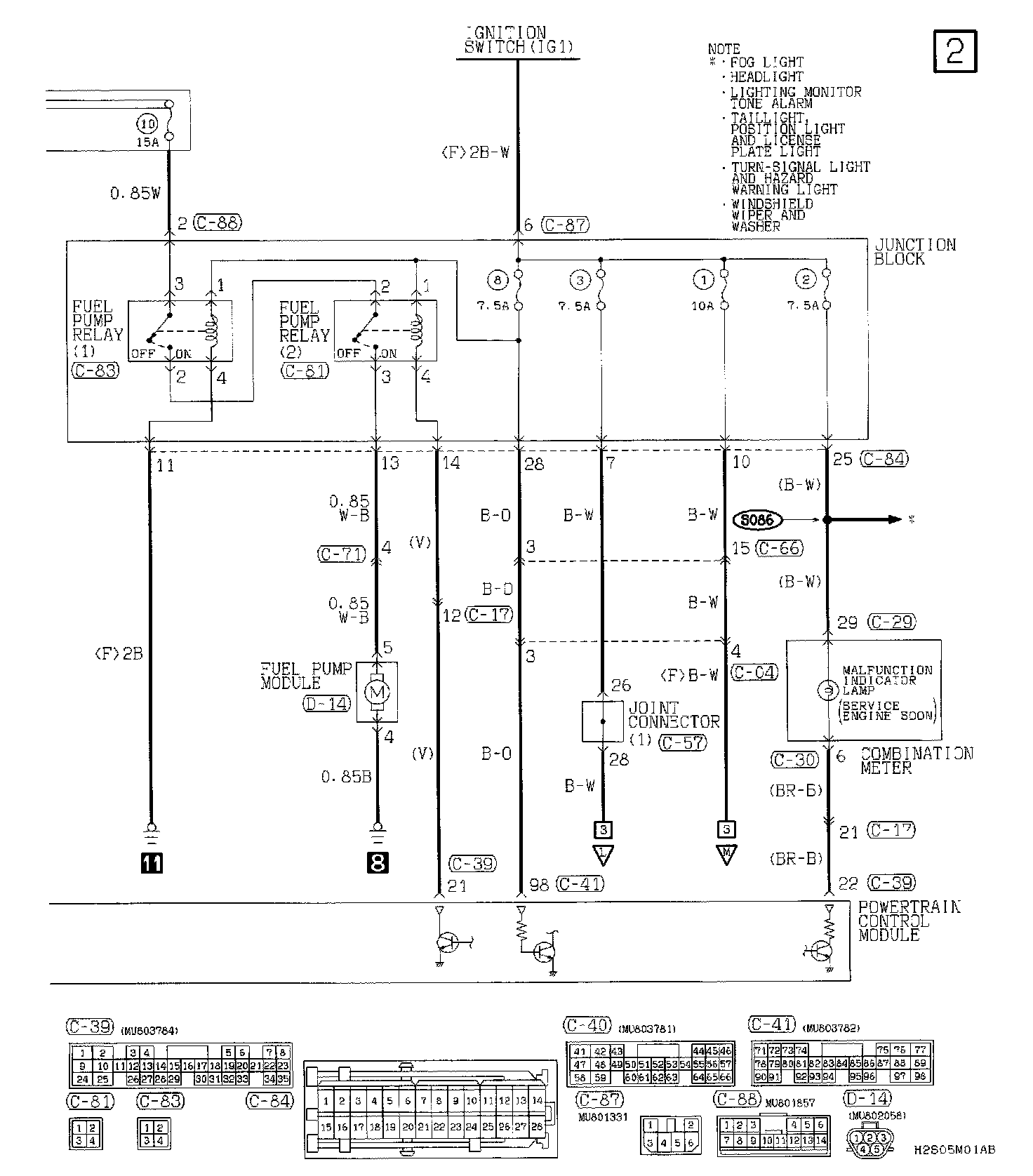

Part 2:



Part 3:

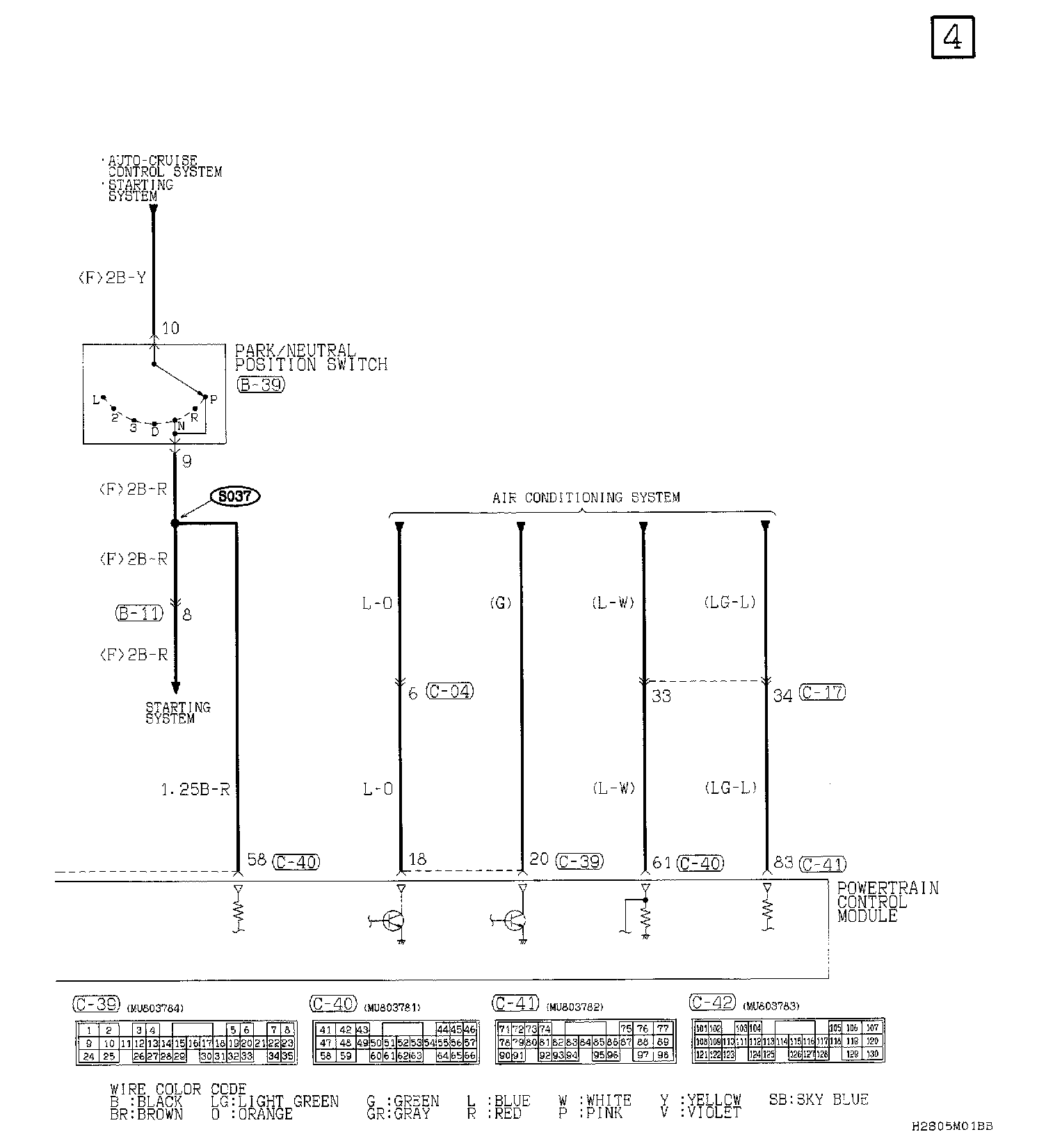

Part 4:

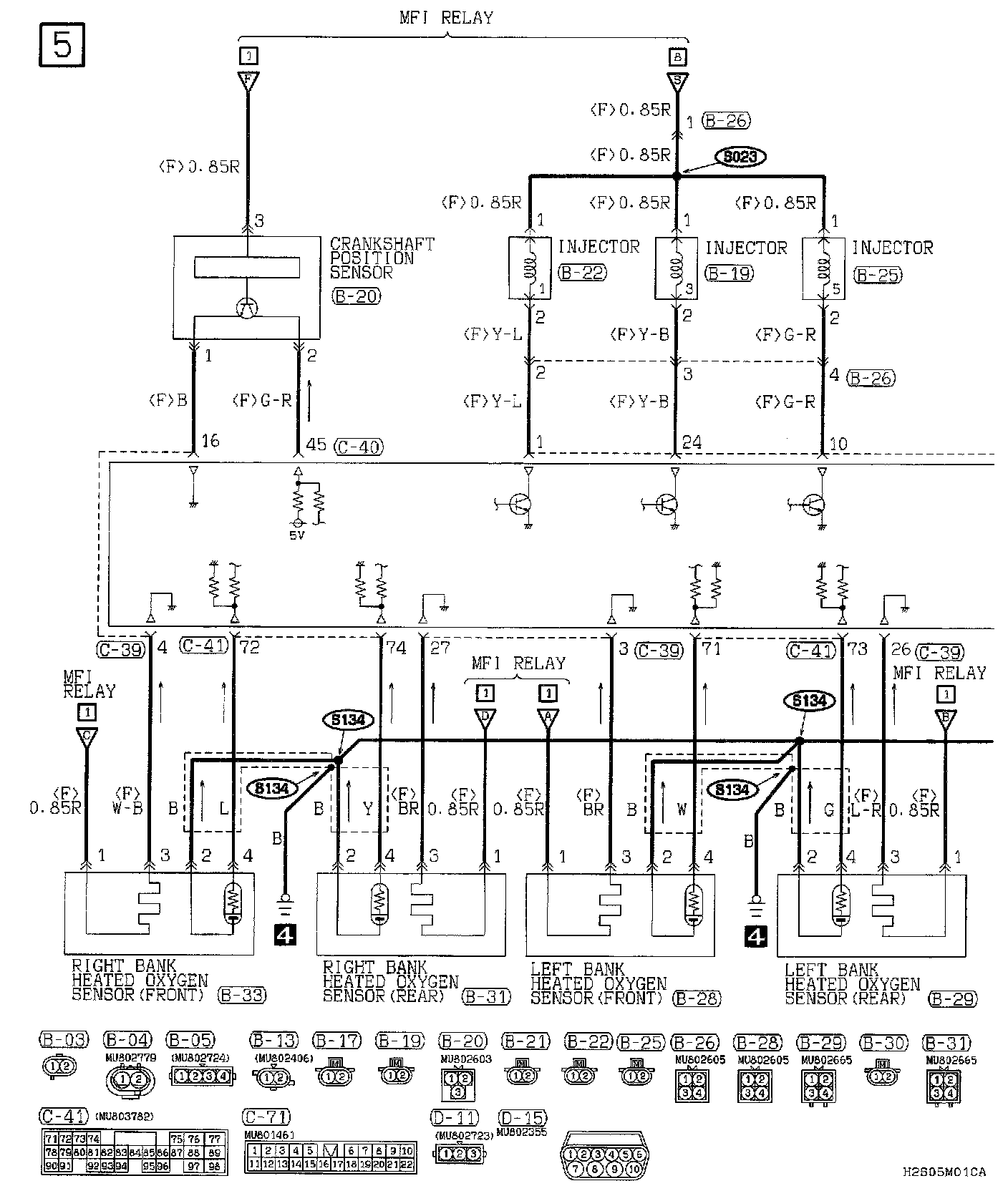

Part 5:



Part 6:

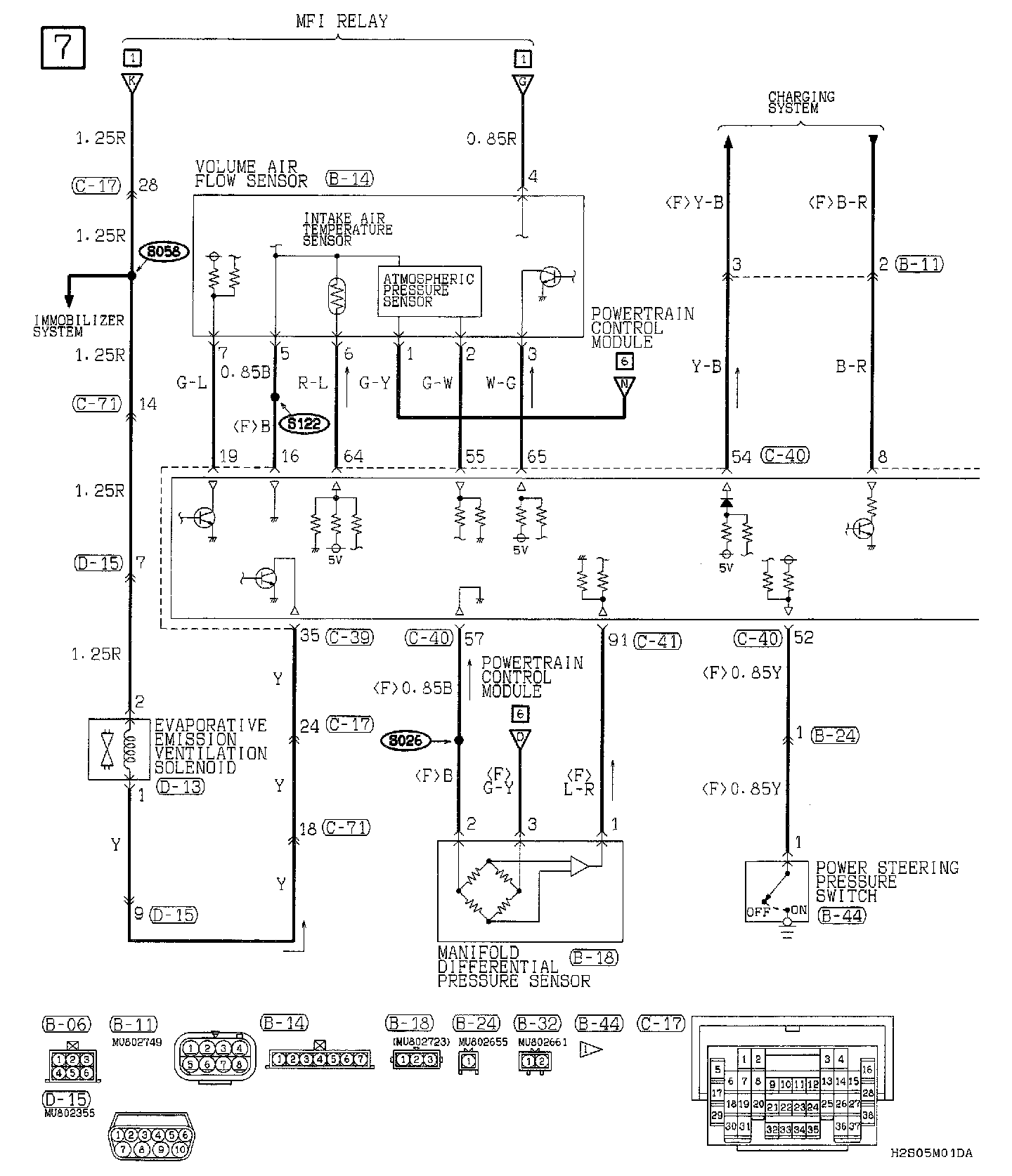

Part 7:

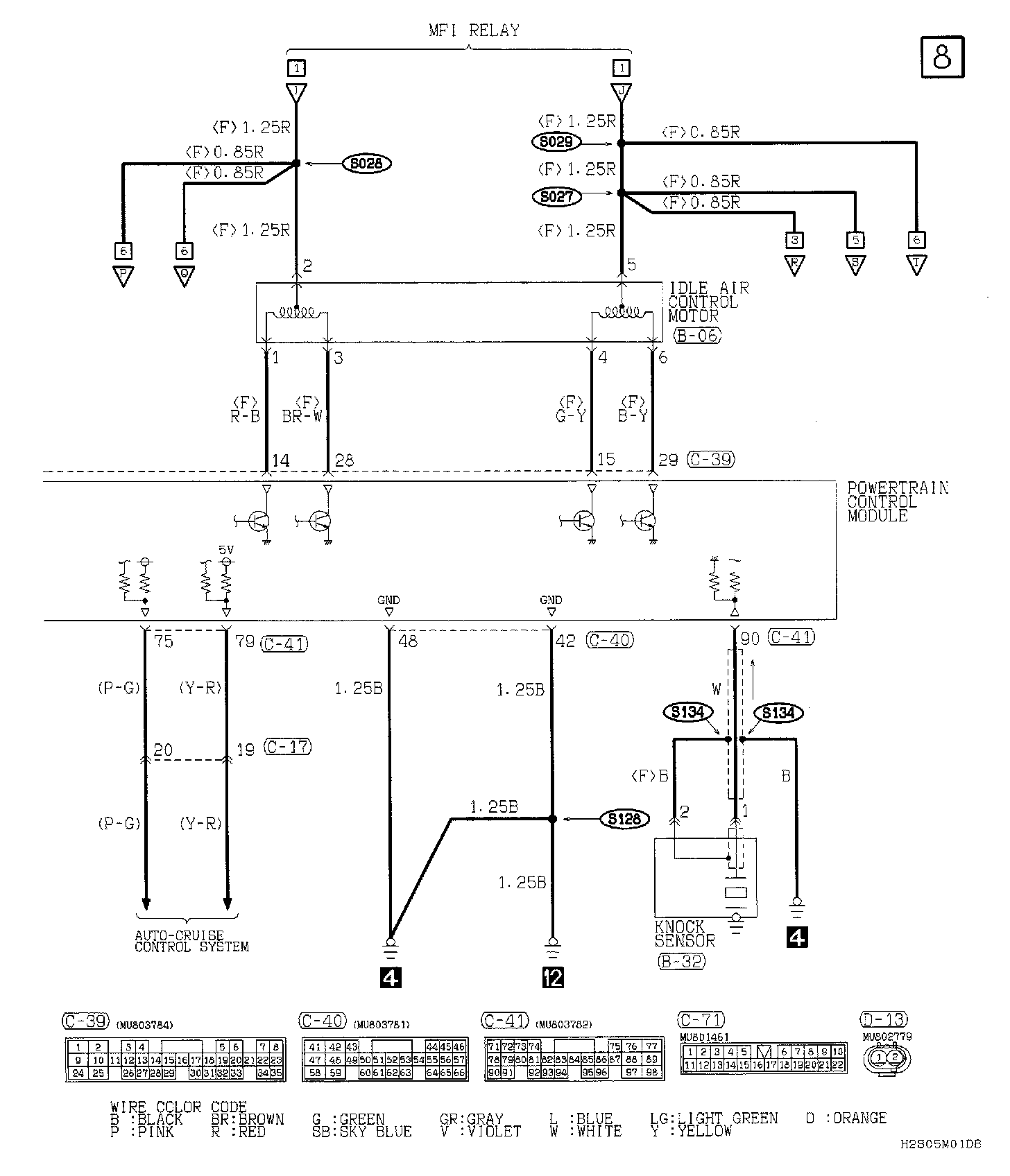

Part 8:

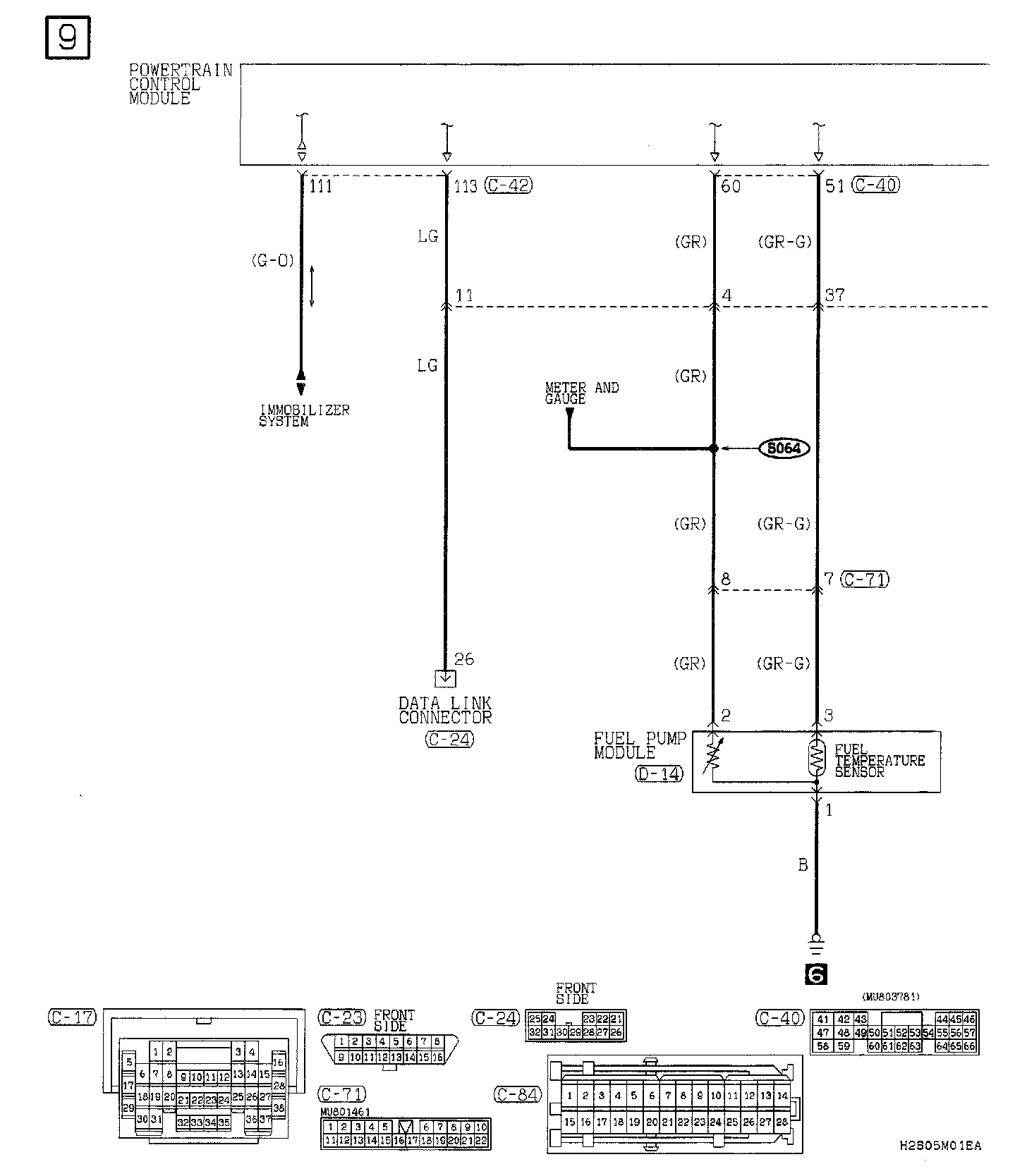

Part 9:

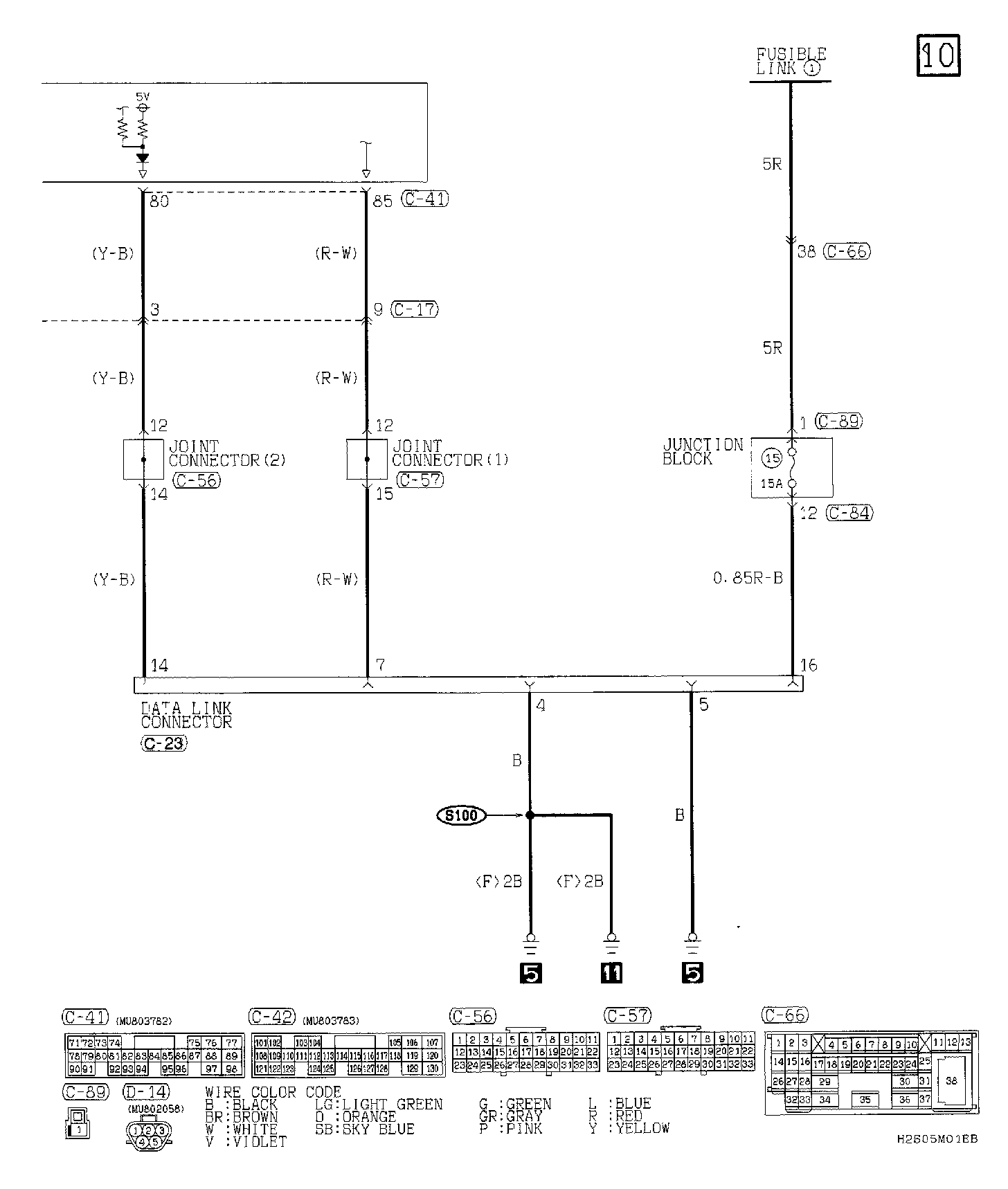

Part 10:
