Front Disc Brake Assembly

FRONT DISC BRAKE ASSEMBLY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

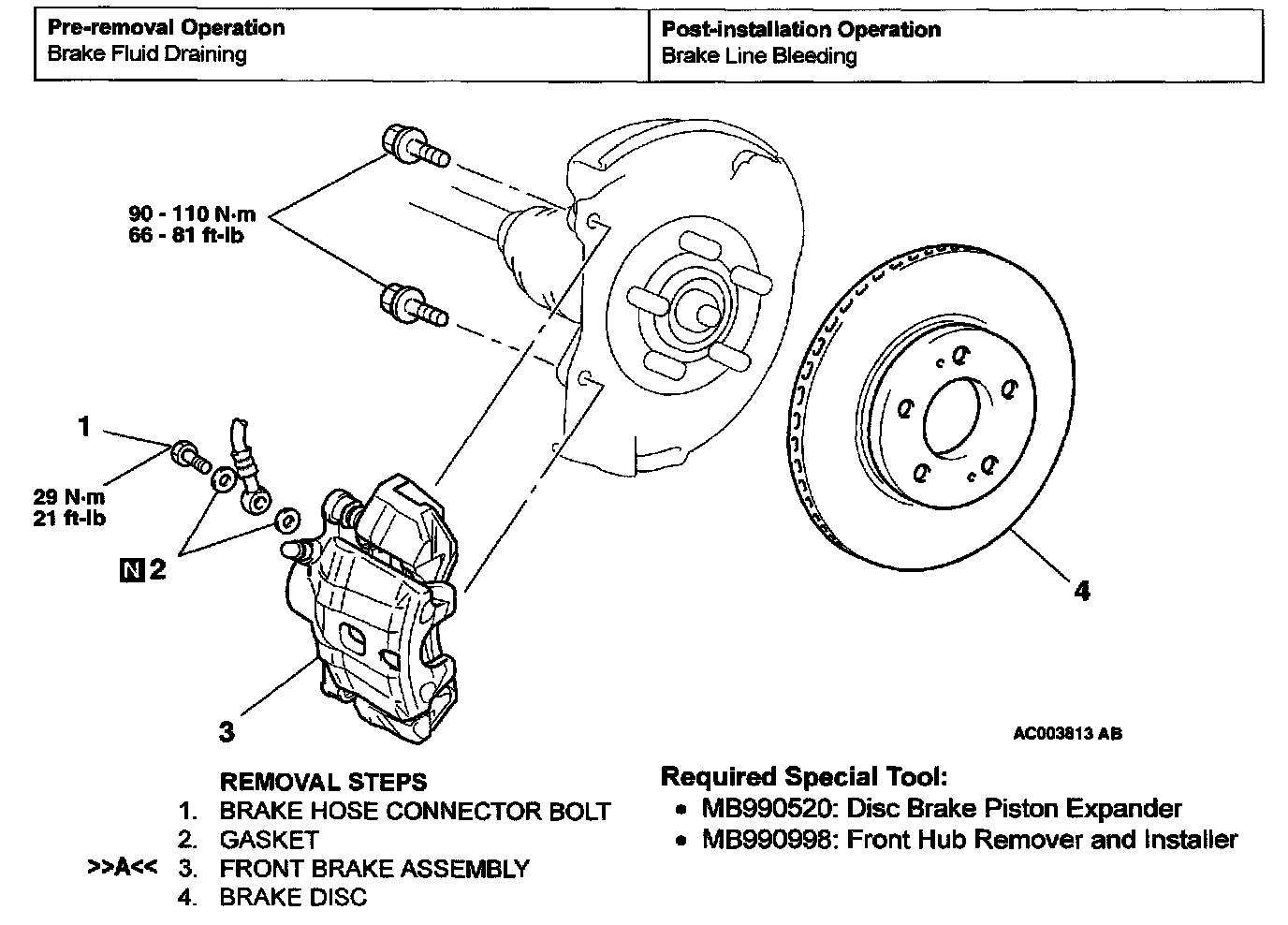

Replacement

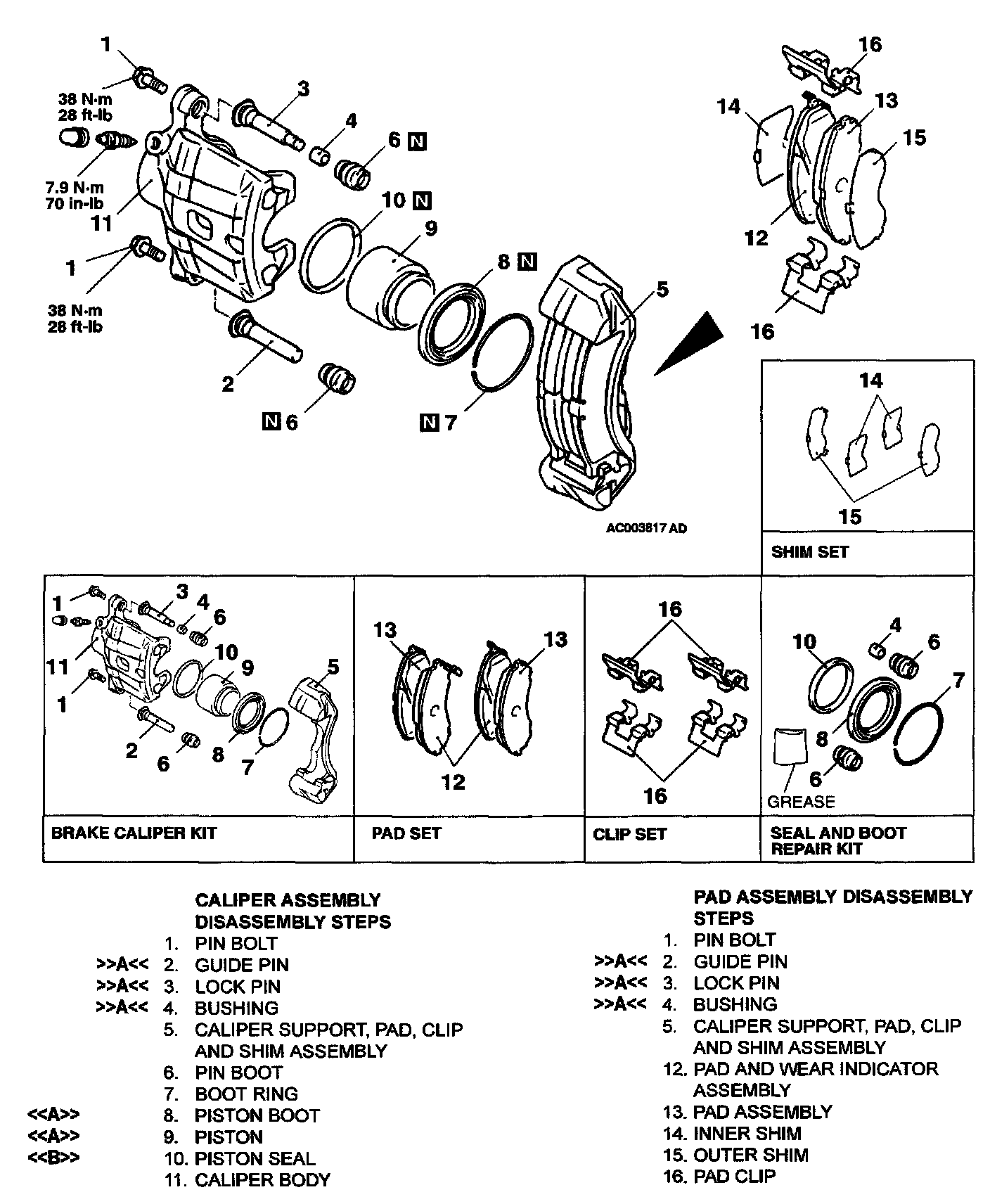

Overhaul
