Home >> Mitsubishi >> 2002 >> Galant LS V6-3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Chart

Symptom Chart

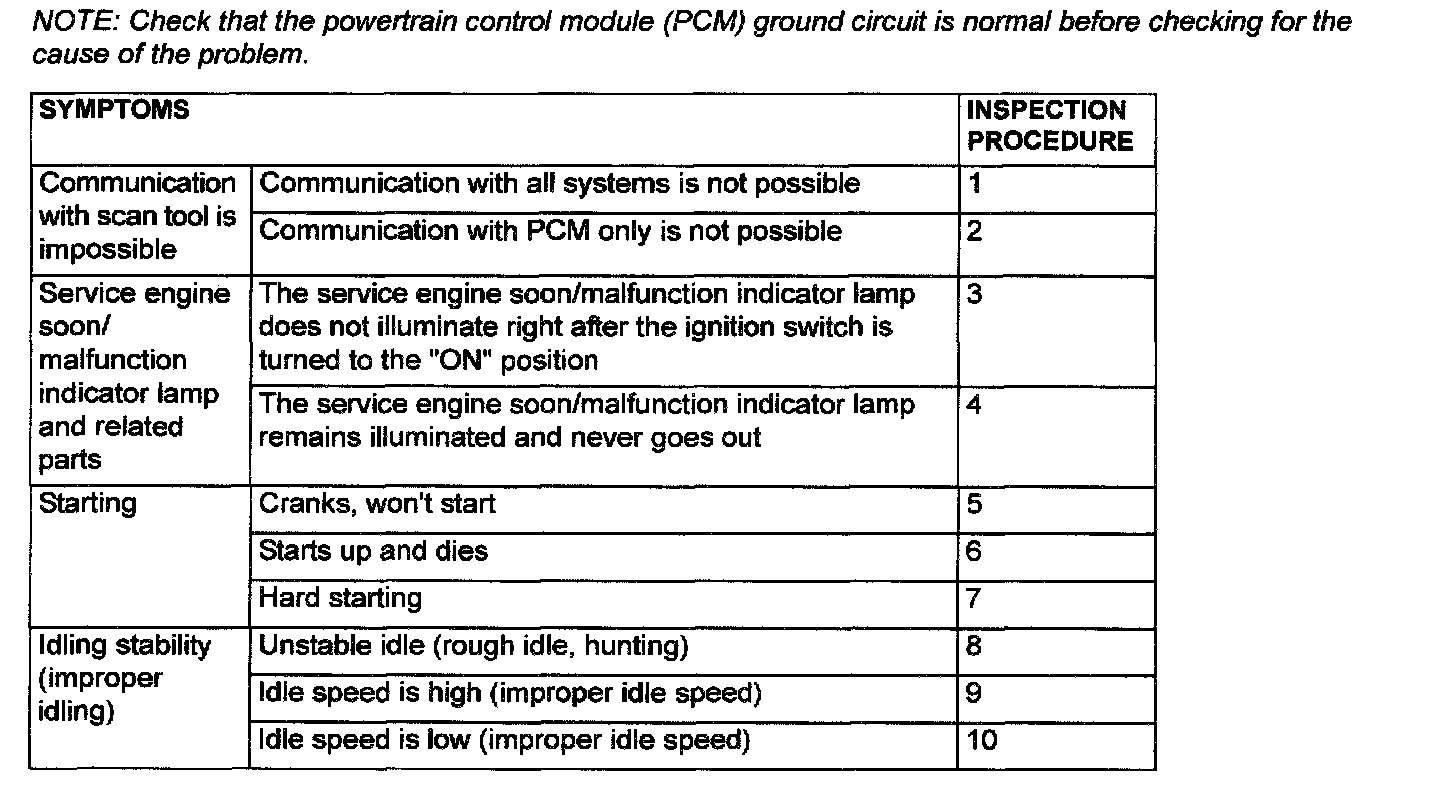

Symptom Chart Part 1:

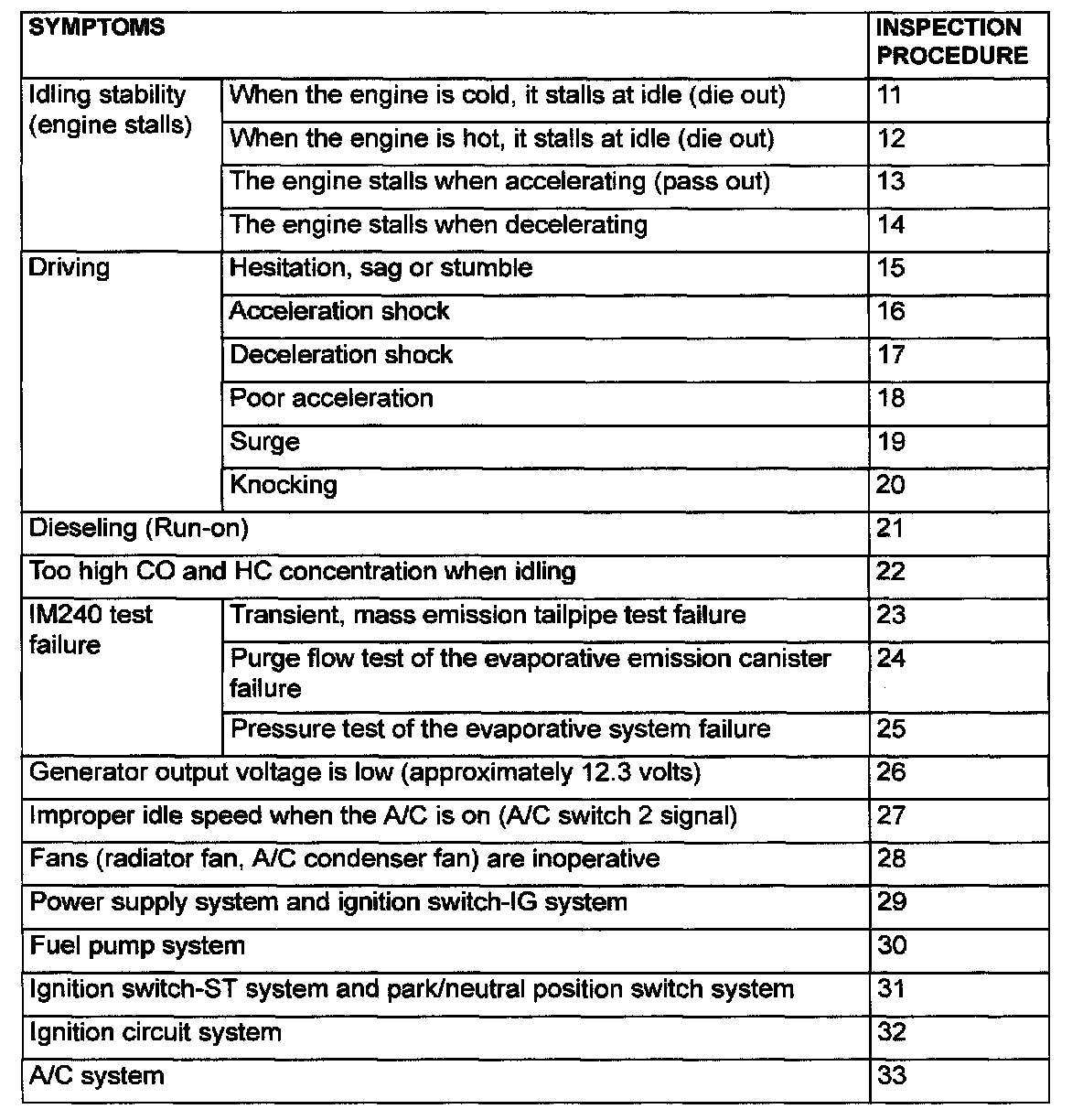

Part 2:
