Keyless Entry Module: Testing and Inspection

ETACS-ECU (KEYLESS ENTRY) TERMINAL VOLTAGE CHECK

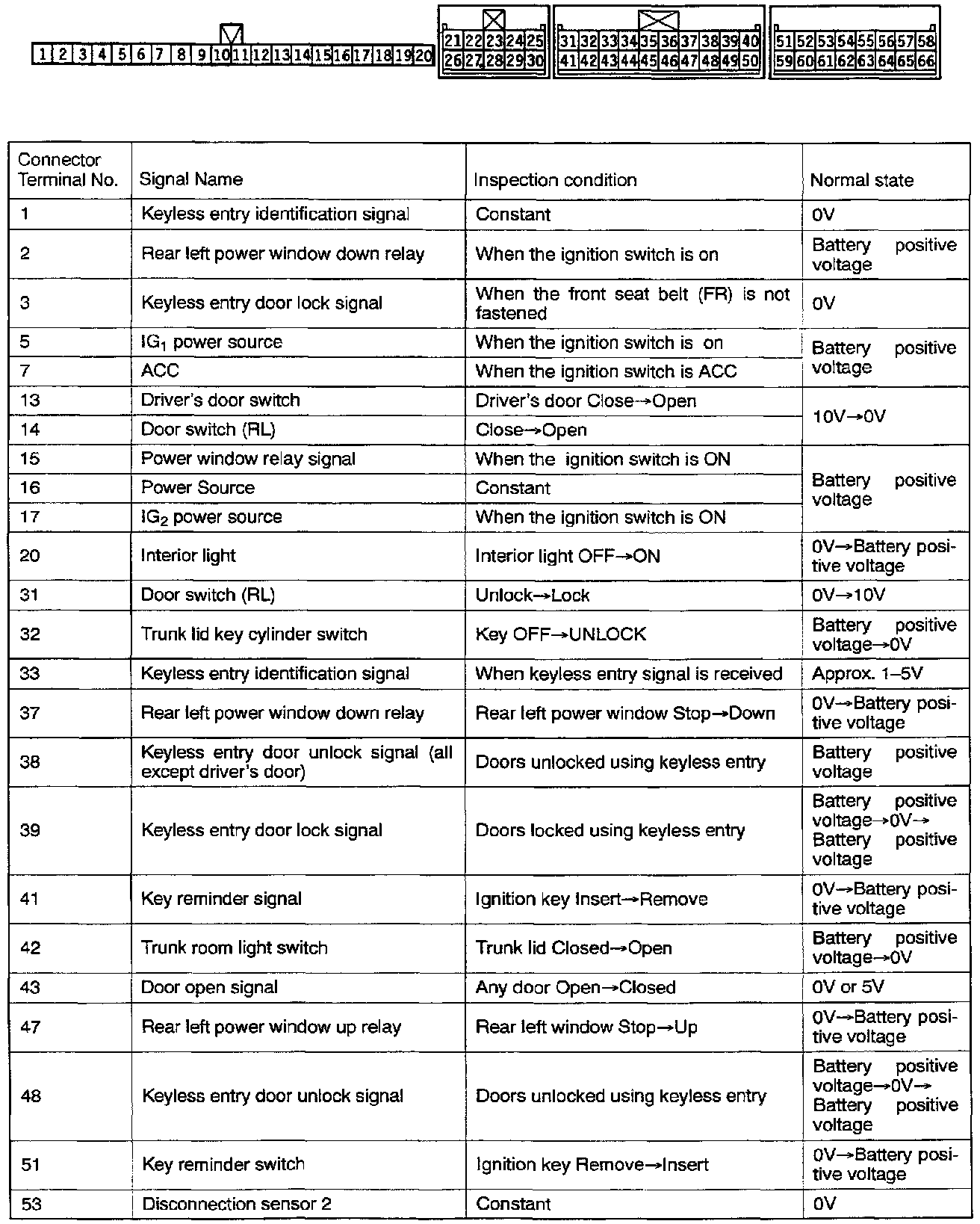

Connector Terminal No 1 - 53:




PART 1 OF 2

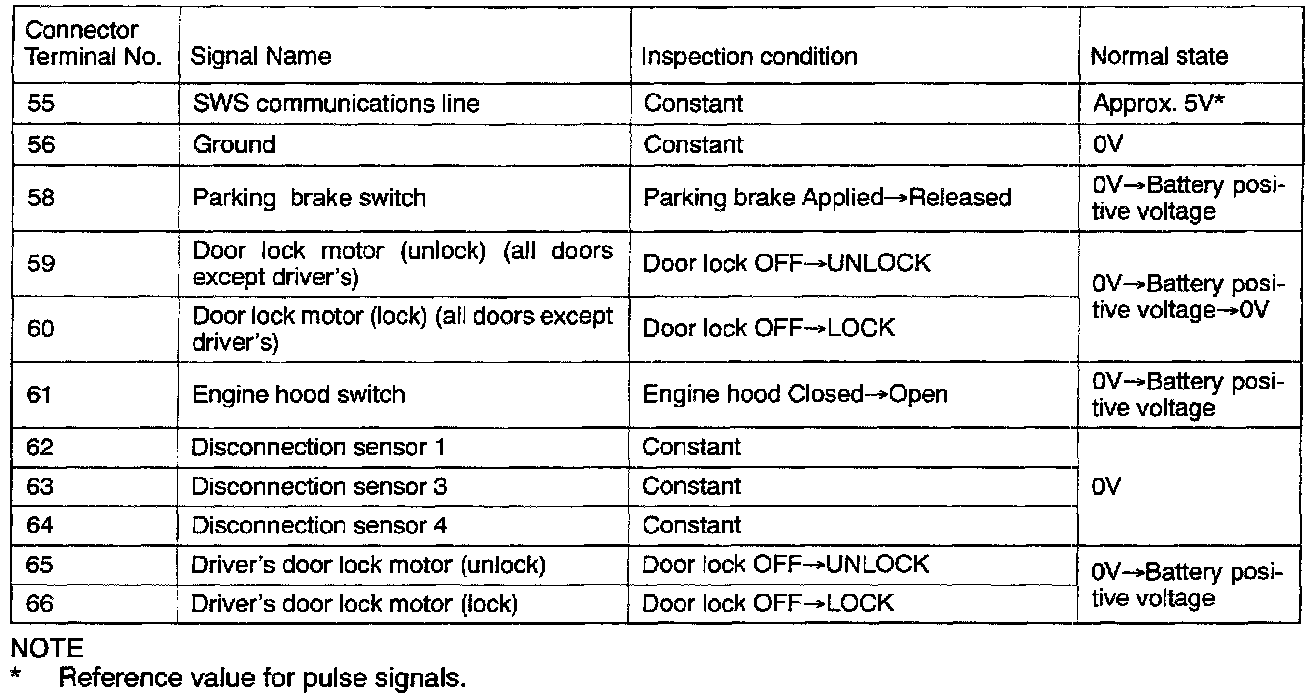

Connector Terminal No 55 - 66:




PART 2 OF2

NOTE: For ETACS-ECU code related diagnosis refer to: Computers and Control Systems, Information Bus, Testing and Inspection.
