Exploded Views

FRONT BODY

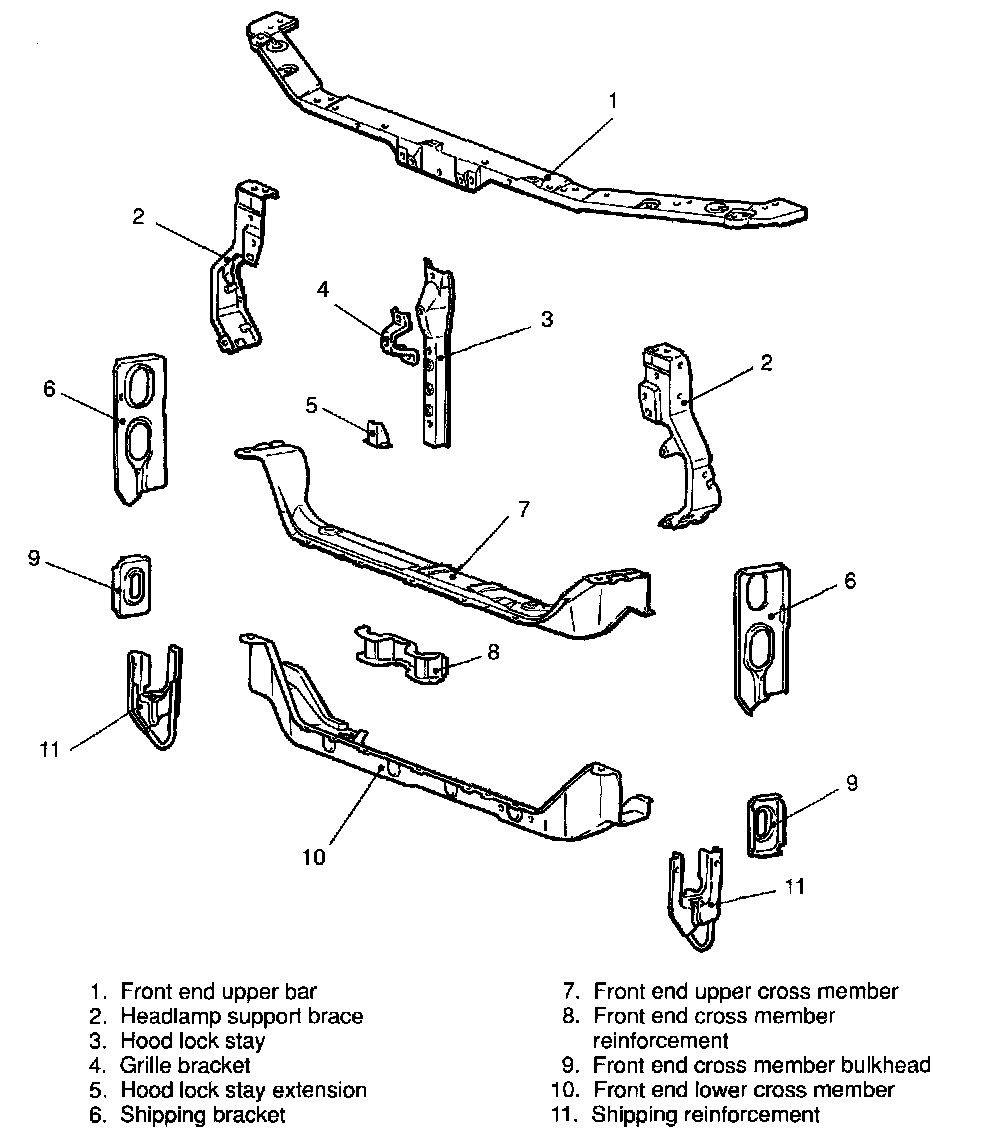

HEADLAMP SUPPORT




Eliminating the headlamp support panel and providing a split construction for the headlamp support reduced the weight and made vehicle servicing procedures more efficient.

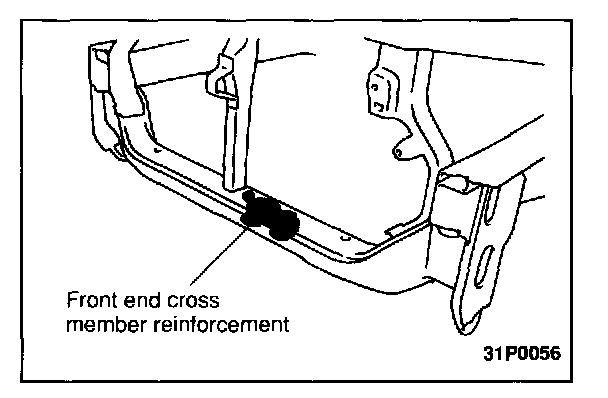

To reinforce the strength of the center member mounting area, a reinforcement is provided for the front end cross member.
