Front Steering Knuckle
Front Steering Knuckle

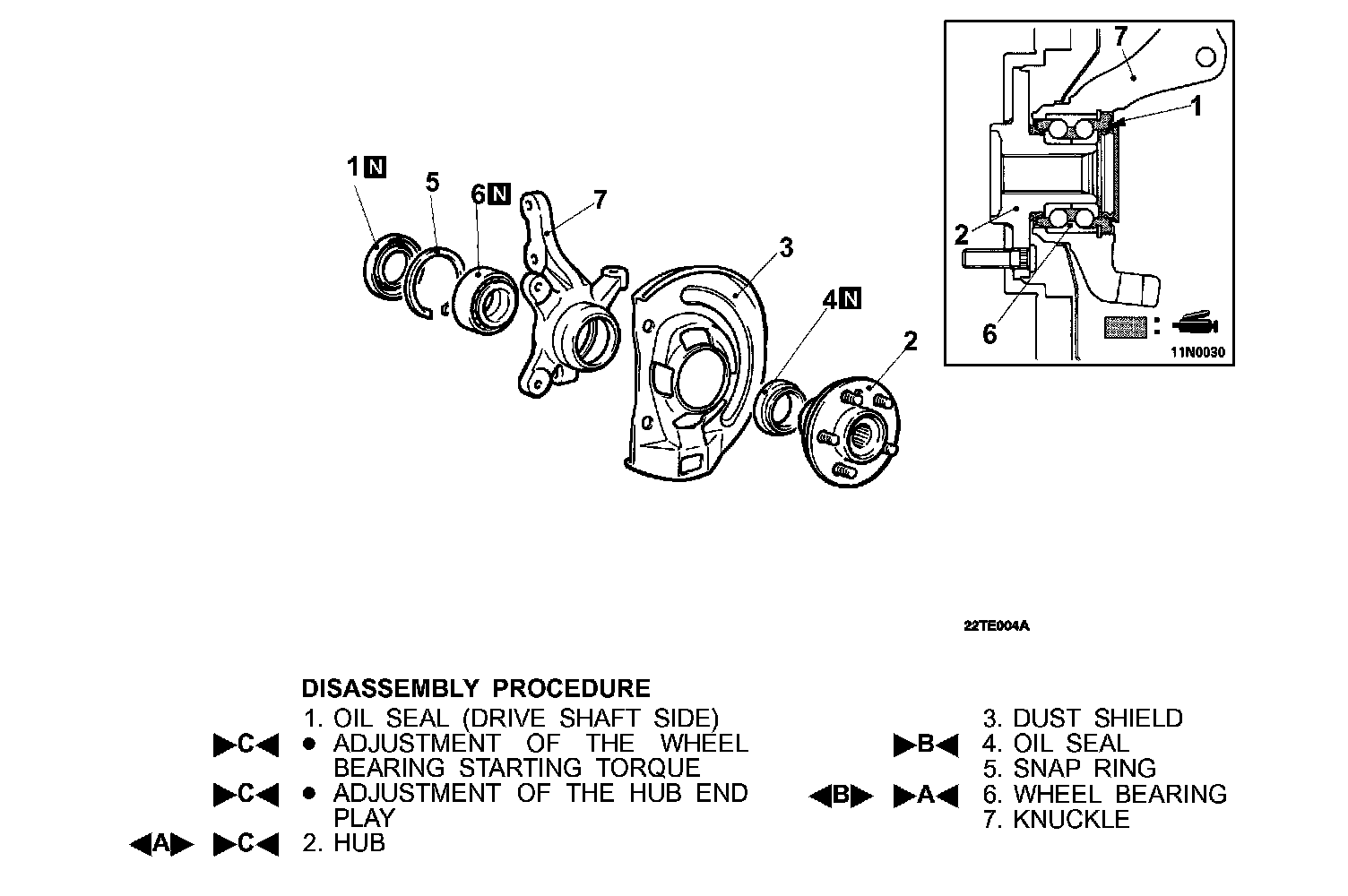

FRONT HUB AND KNUCKLE ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
