Solar Sensor: Service and Repair

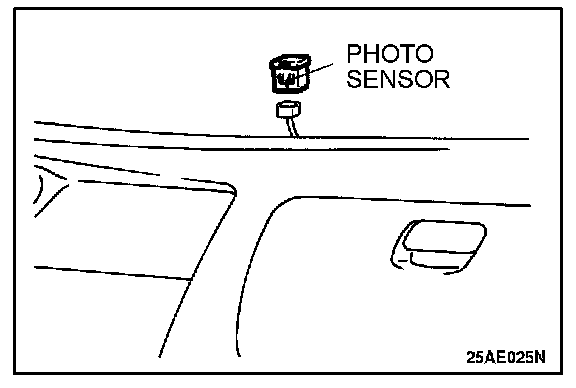

PHOTO SENSOR
REMOVAL AND INSTALLATION
1.
Remove the center air outlet assembly.
2.
Remove the center warning display.
3.
Remove the photo sensor.
