Alignment: Testing and Inspection

STEERING ANGLE CHECK

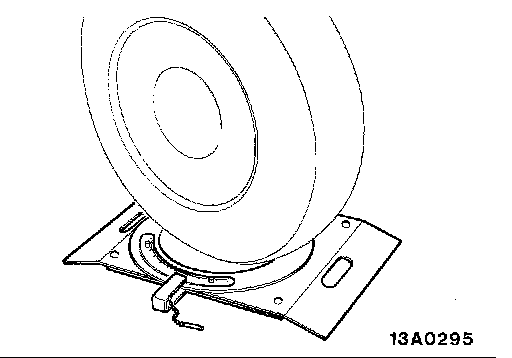

1. Locate front wheels on turning radius gauge and measure steering angle.
Standard value:
Inside wheel: 37°00' ± 2°
Outside wheel: 30°00'
2. When the angle is not within the standard value, the toe is probably incorrect. Adjust toe and recheck steering angle.
