Without Traction Control

CLOSED THROTTLE POSITION SWITCH CHECK
1. Disconnect the throttle position sensor connector.

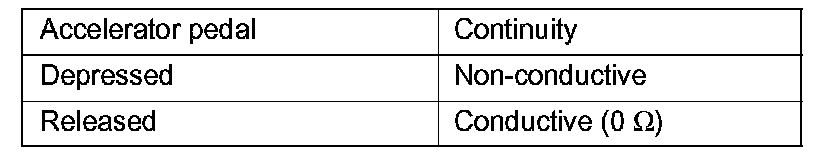

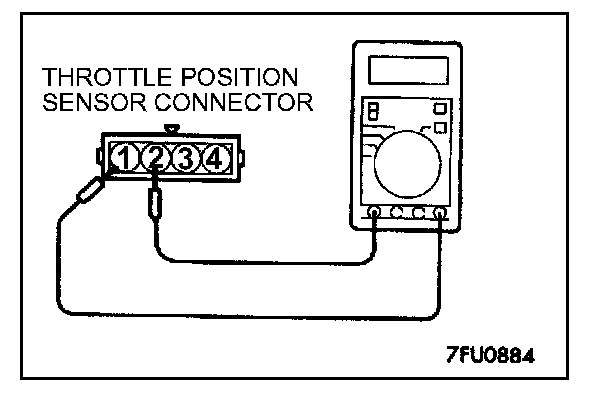

2. Check the continuity between the throttle position sensor connector side terminal 1 and terminal 2.
3. If out of specification, replace the throttle position sensor.

NOTE: After replacement, the closed throttle position switch and throttle position sensor should be adjusted.
