Throttle Position Sensor Check

THROTTLE POSITION SENSOR CHECK

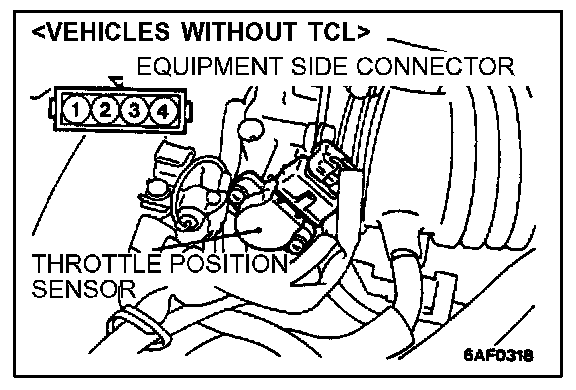

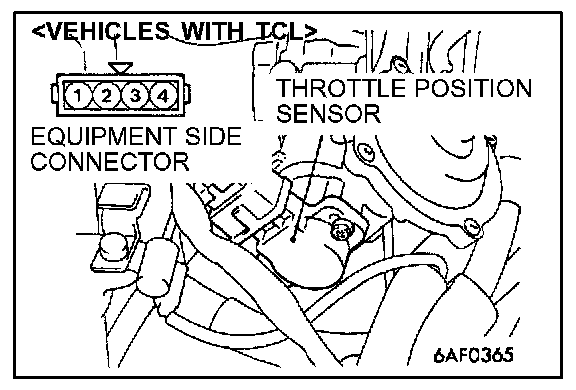

1. Disconnect the throttle position sensor connector.
2. Measure the resistance between the throttle position sensor side connector terminal 1 and terminal 4.
Standard value: 3.5 - 6.5 kOhm

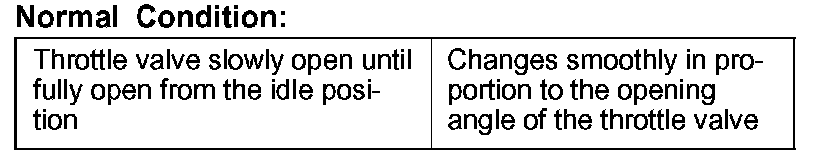

Normal Condition:

3. Measure the resistance between the throttle position sensor side connector terminal 3 and terminal 4.

4. If the resistance is outside the standard value, or if it doesn't change smoothly, replace the throttle position sensor.

NOTE: For the throttle position sensor adjustment procedure, refer to , .
