Air Bag Control Module: Service and Repair

SRS AIR BAG CONTROL UNIT (SRS-ECU)

CAUTION: Never attempt to disassemble or repair the SRS-ECU. If faulty, replace it.

CAUTION: Do not drop or subject the SRS-ECU to impact or vibration.

If denting, cracking, deformation, or rust are discovered in the SRS-ECU, replace it with a new SRS-ECU. Discard the old one.

CAUTION: After deployment of an air bag, replace the SRS-ECU with a new one.

CAUTION: Never use an ohmmeter on or near the SRS-ECU, and use only the special test equipment described.

SRS Air Bag Control Unit (SRS-ECU):

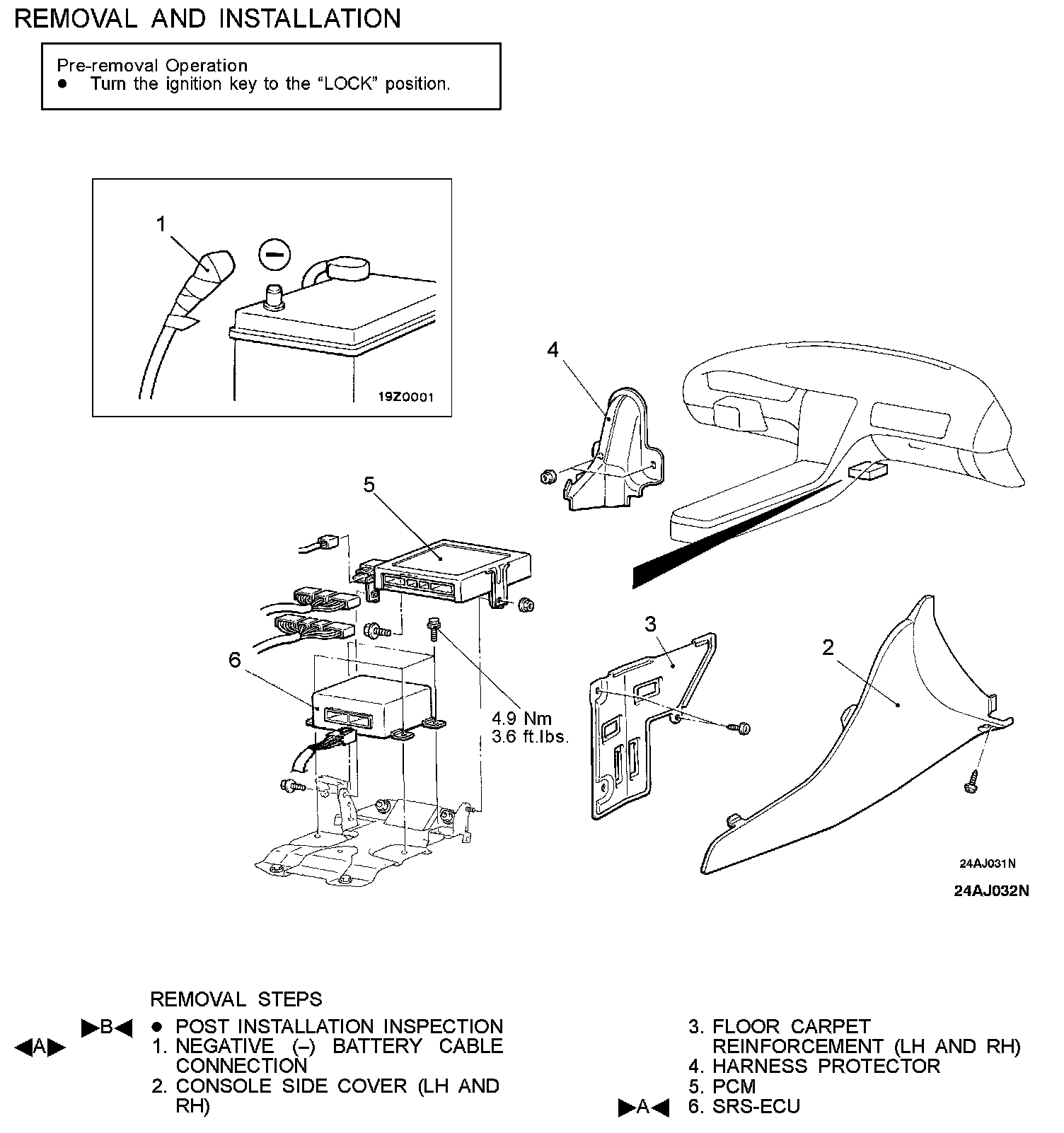

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




NEGATIVE (-) BATTERY CABLE DISCONNECTION
Disconnect the negative battery cable from the battery and tape the terminal.

CAUTION: Wait at least 60 seconds after disconnecting the battery cable before doing any further work.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING.

INSTALLATION SERVICE POINTS

>A< SRS-ECU INSTALLATION

CAUTION: The SRS may not activate if SRS-ECU is not installed properly, which could result in serious injury or death to the vehicle's driver or front passenger.

>B< POST-INSTALLATION INSPECTION
1. Turn the ignition key to the "ON" position.
2. Does the "SRS" warning light illuminate for about 7 seconds, and then remain off for at least 5 seconds after turning off?
3. If yes, SRS system is functioning properly. If no, refer to Troubleshooting.
