Ignition Switch: Service and Repair

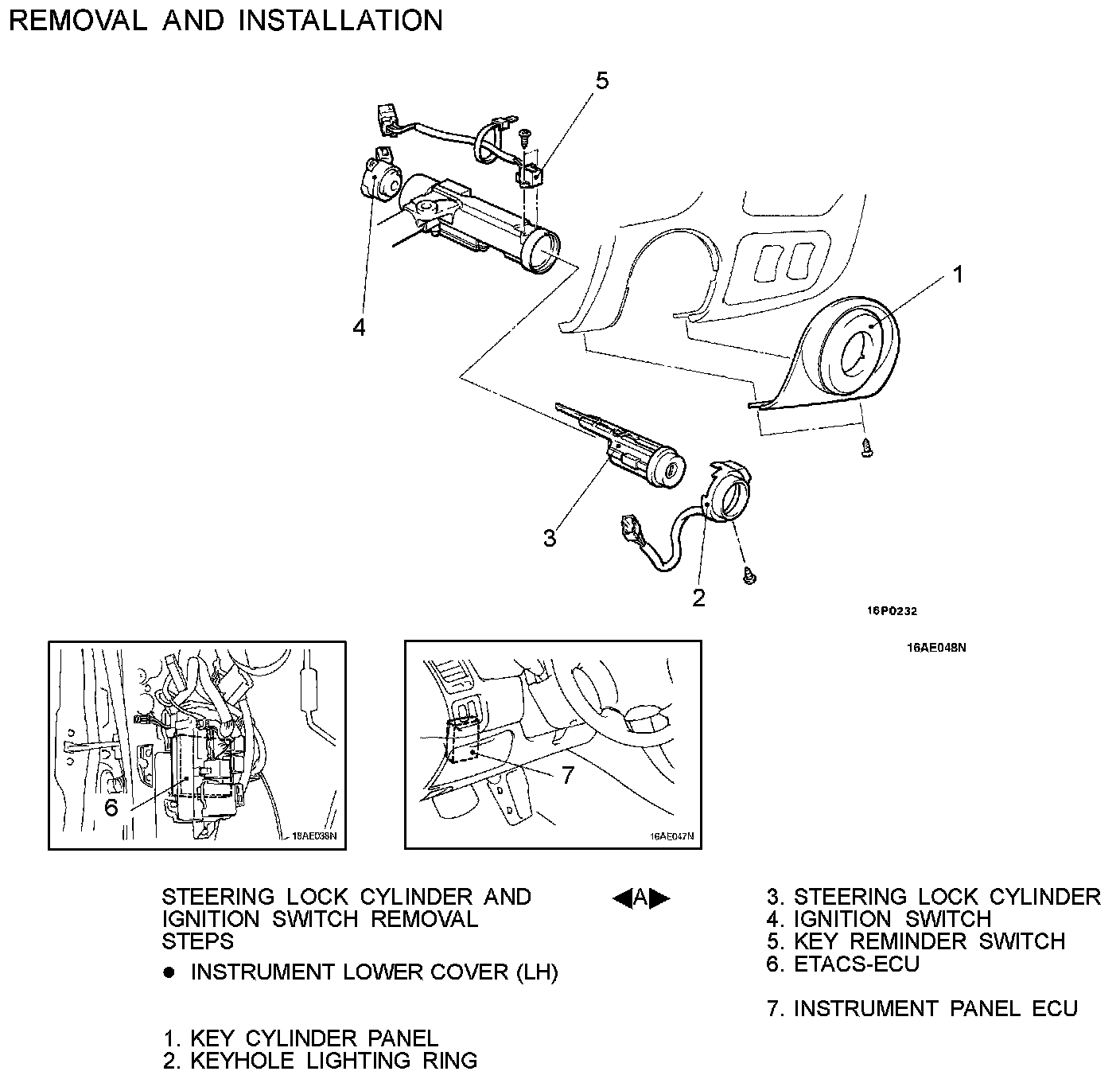

Removal and InstallationIgnition Switch:
REMOVAL SERVICE POINT
STEERING LOCK CYLINDER REMOVAL
1. Insert the key in the steering lock cylinder and turn it to the "ACC." position.

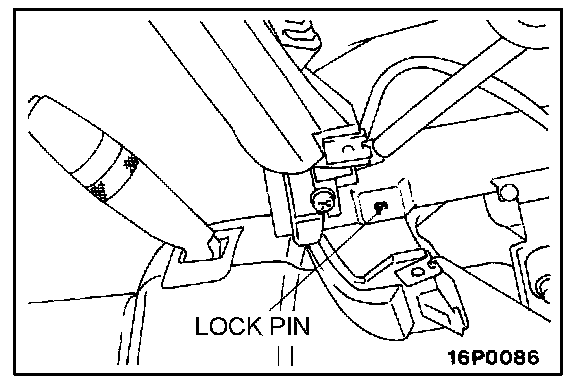

2. Using a cross-tip (+) screwdriver (small) or a similar tool, push the lock pin of the steering lock cylinder inward and then pull the steering lock cylinder toward you.
