Blower Motor Resistor: Testing and Inspection

RESISTER CHECK

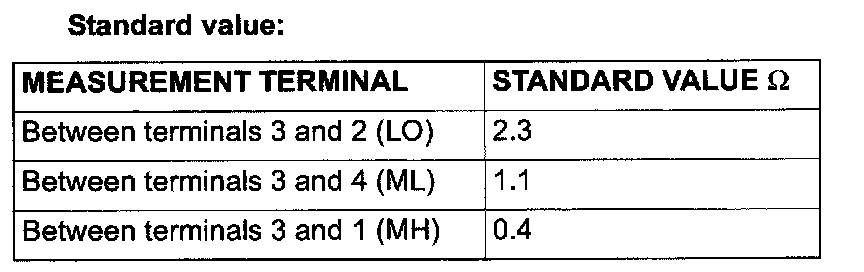

Standard Value:

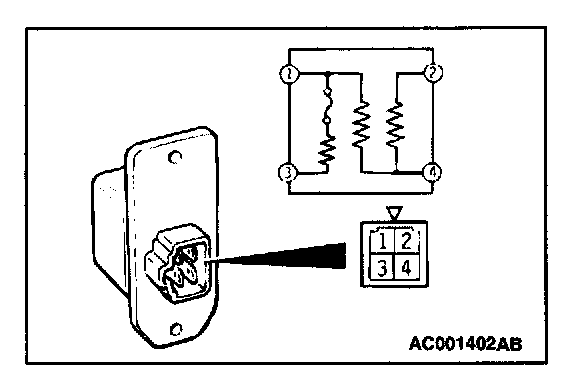

Use an Ohmmeter to measure the resistance between the terminals. Check that the measured value is at the standard value.
