Home >> Mitsubishi >> 2003 >> Eclipse L4-2.4L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Heater Control Valve >> Heater Control Valve Actuator >> Testing and Inspection

Heater Control Valve Actuator: Testing and Inspection

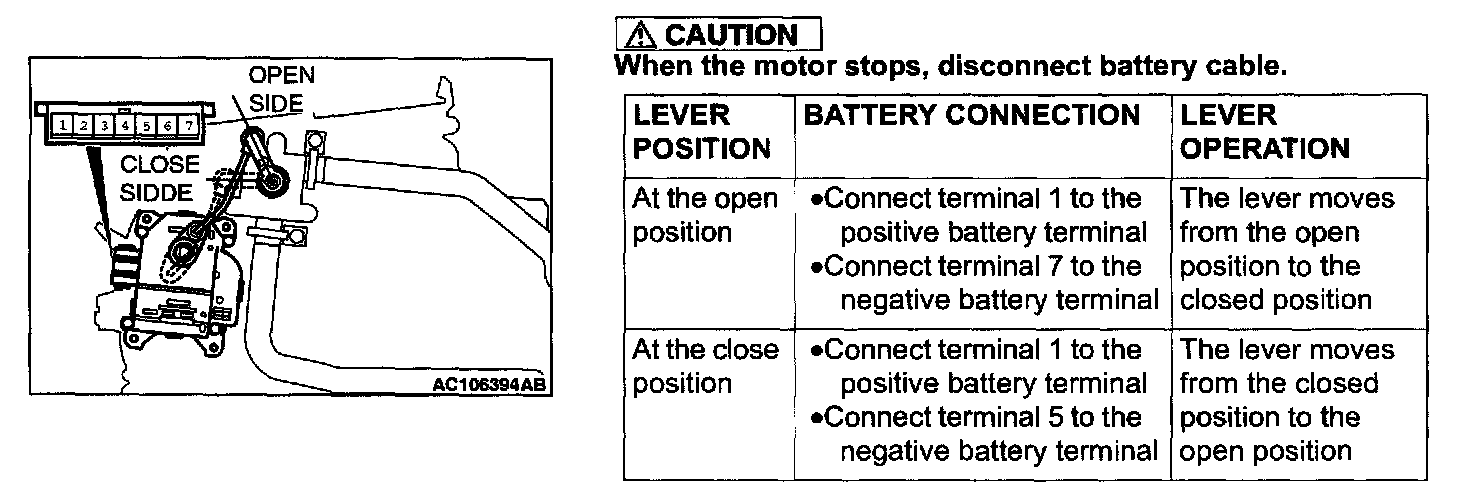

Water Shut Motor Check:
