Cylinder Head Assembly

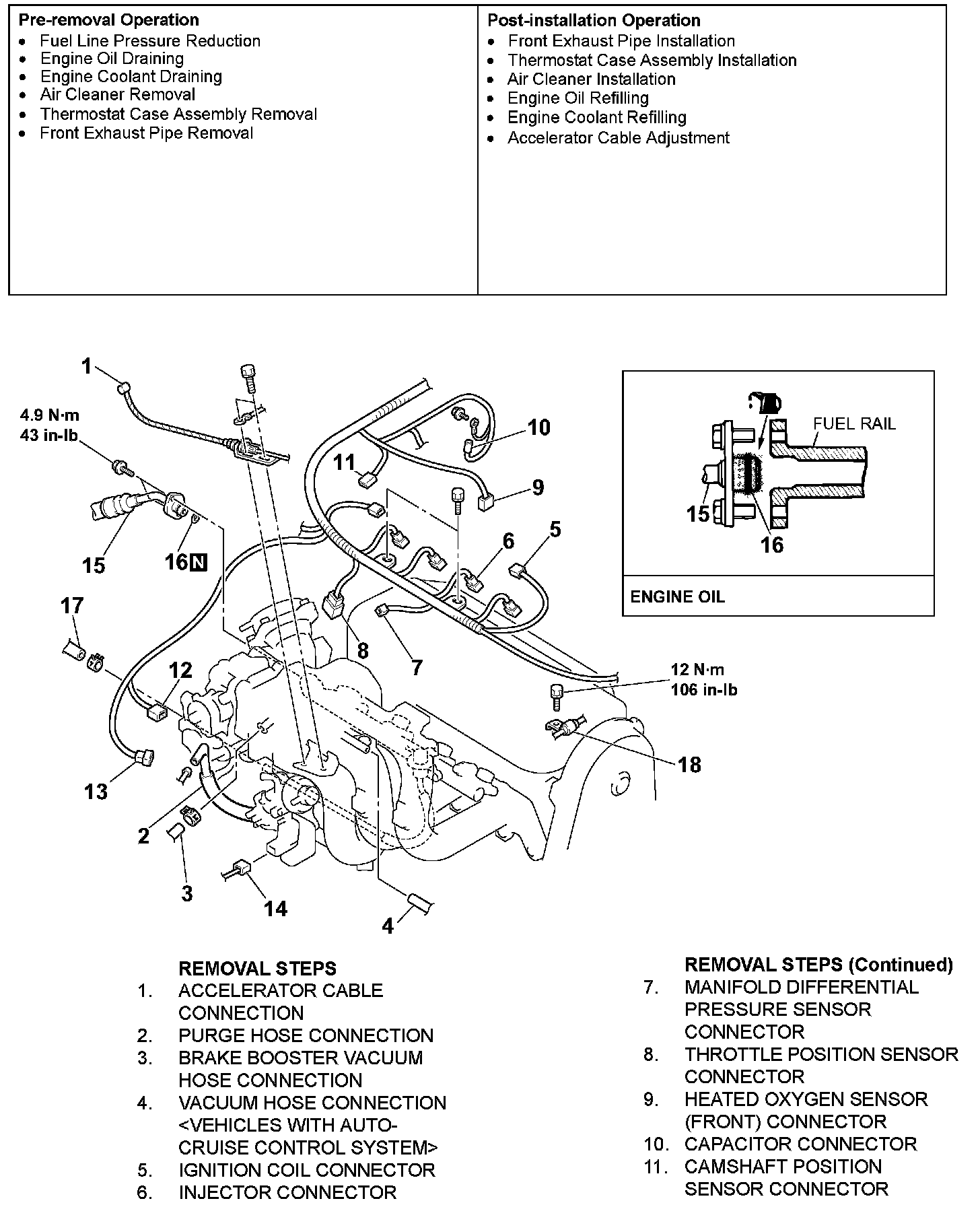

Part 1 Of 3:




Part 2 Of 3:







Part 3 Of 3:

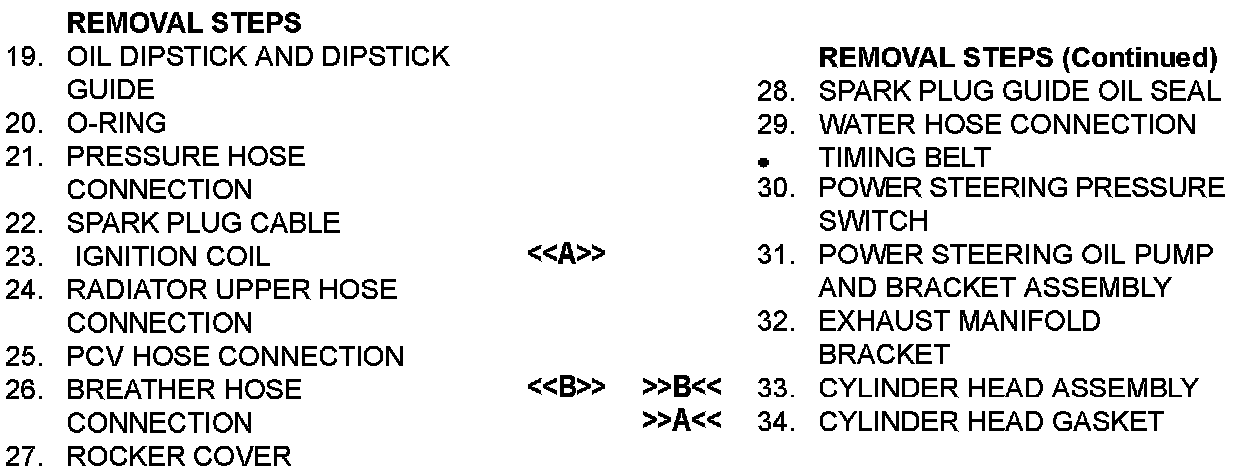

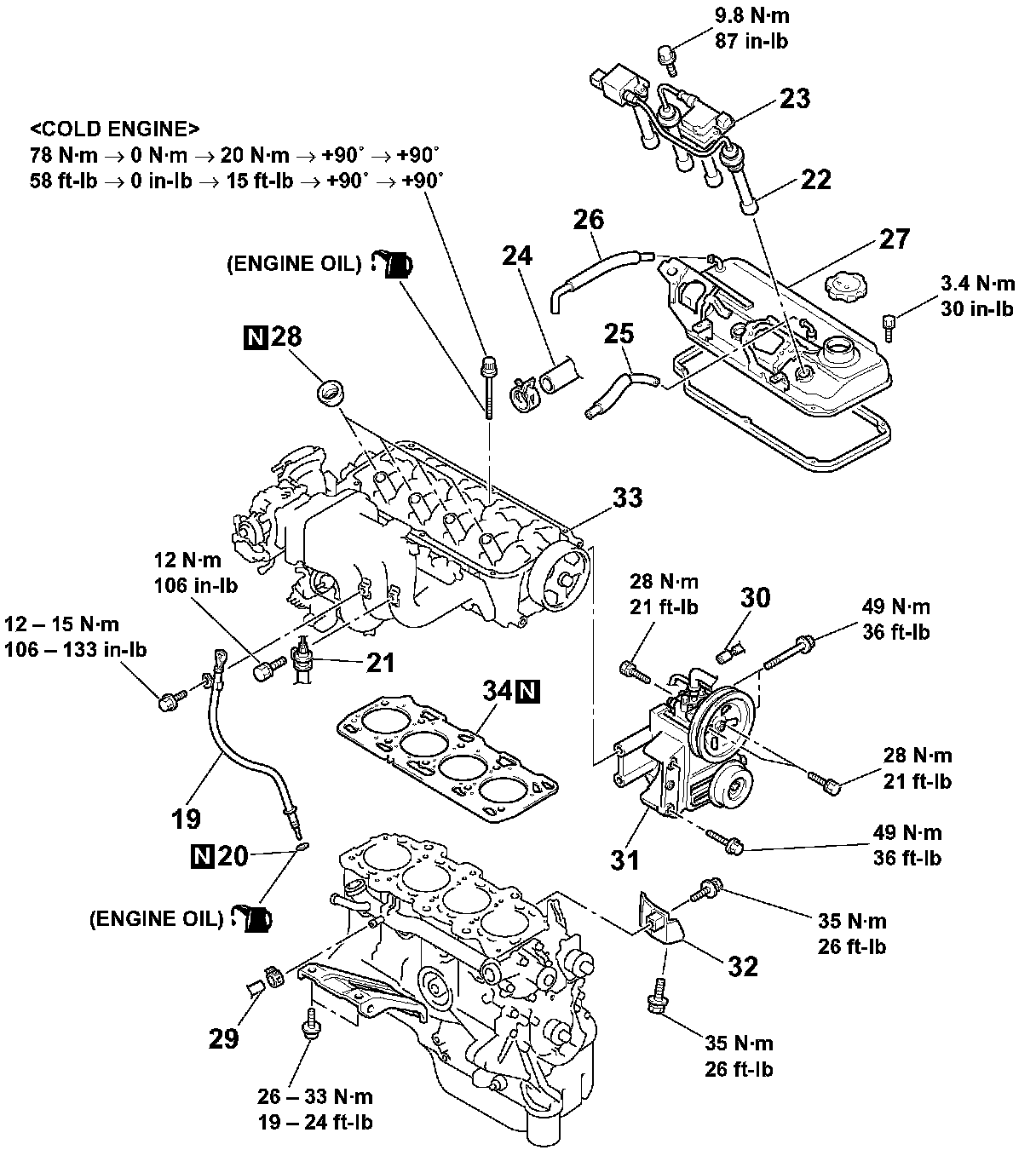

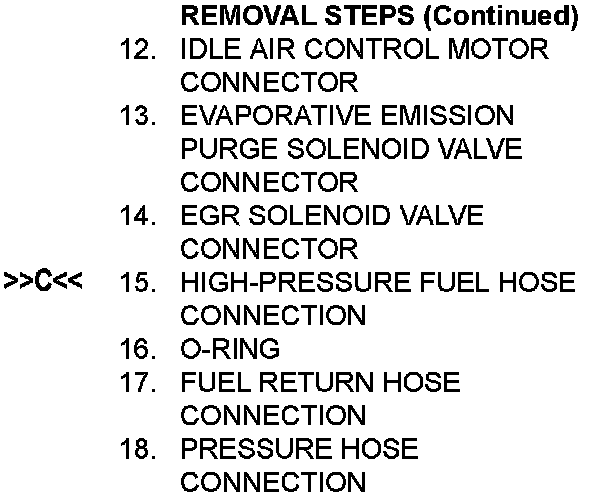

CYLINDER HEAD GASKET REPLACEMENT W/ RELATED COMPONENTS
