Lower Arm and Toe Control Arm Assembly

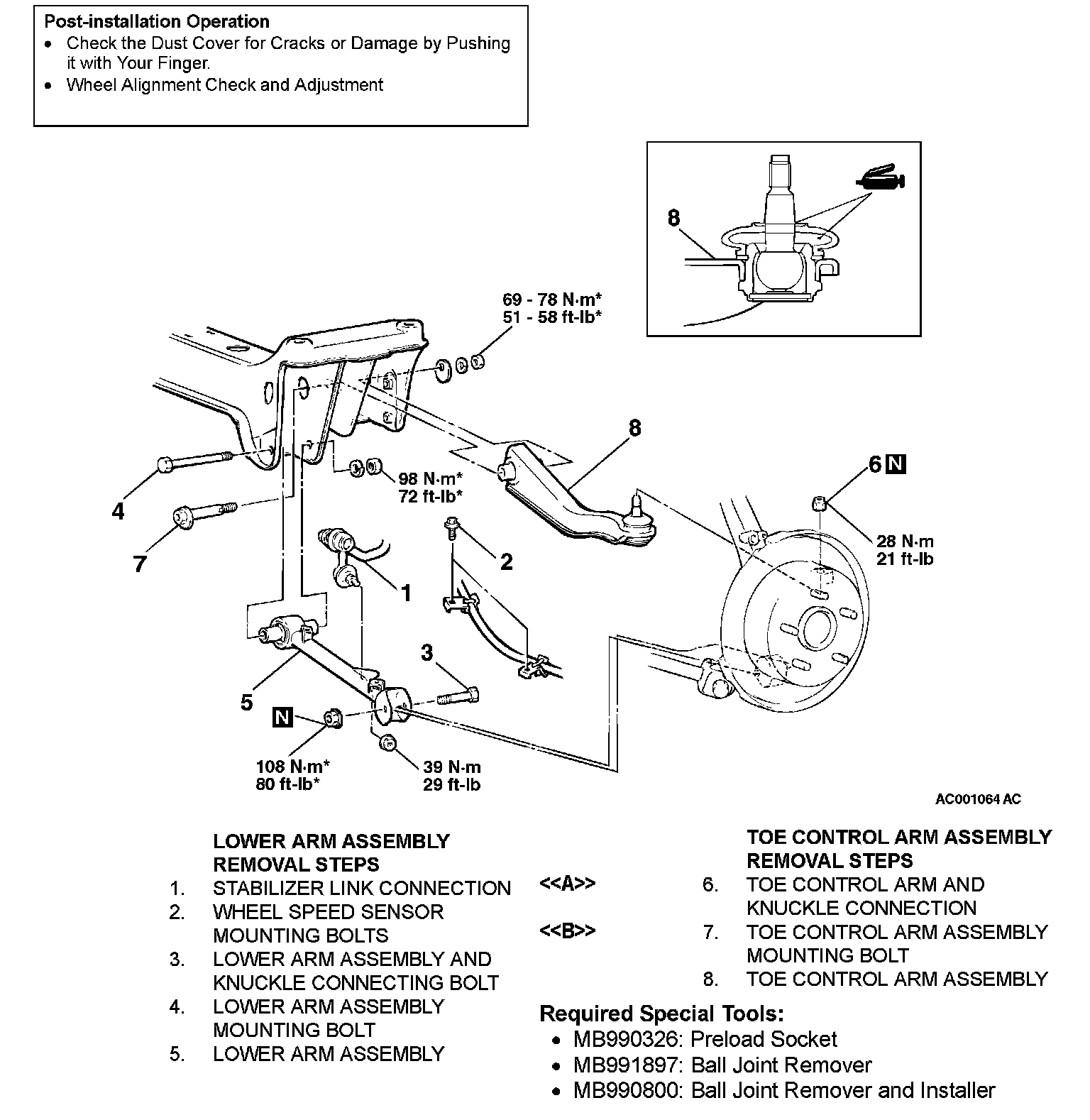

LOWER ARM AND TOE CONTROL ARM ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
