Fuel Tank Pressure Sensor: Testing and Inspection

FUEL TANK DIFFERENTIAL PRESSURE SENSOR CHECK

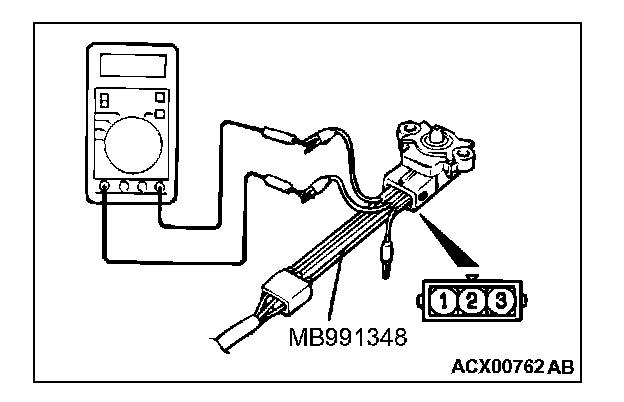

1. Disconnect the fuel tank differential pressure sensor connector and connect special tool MB991348 in-between.
2. Turn the ignition switch to "ON" and measure the output voltage between terminals 2 and 3.

Standard value: 2.0 - 3.0 V
