Pinout Values and Diagnostic Parameters

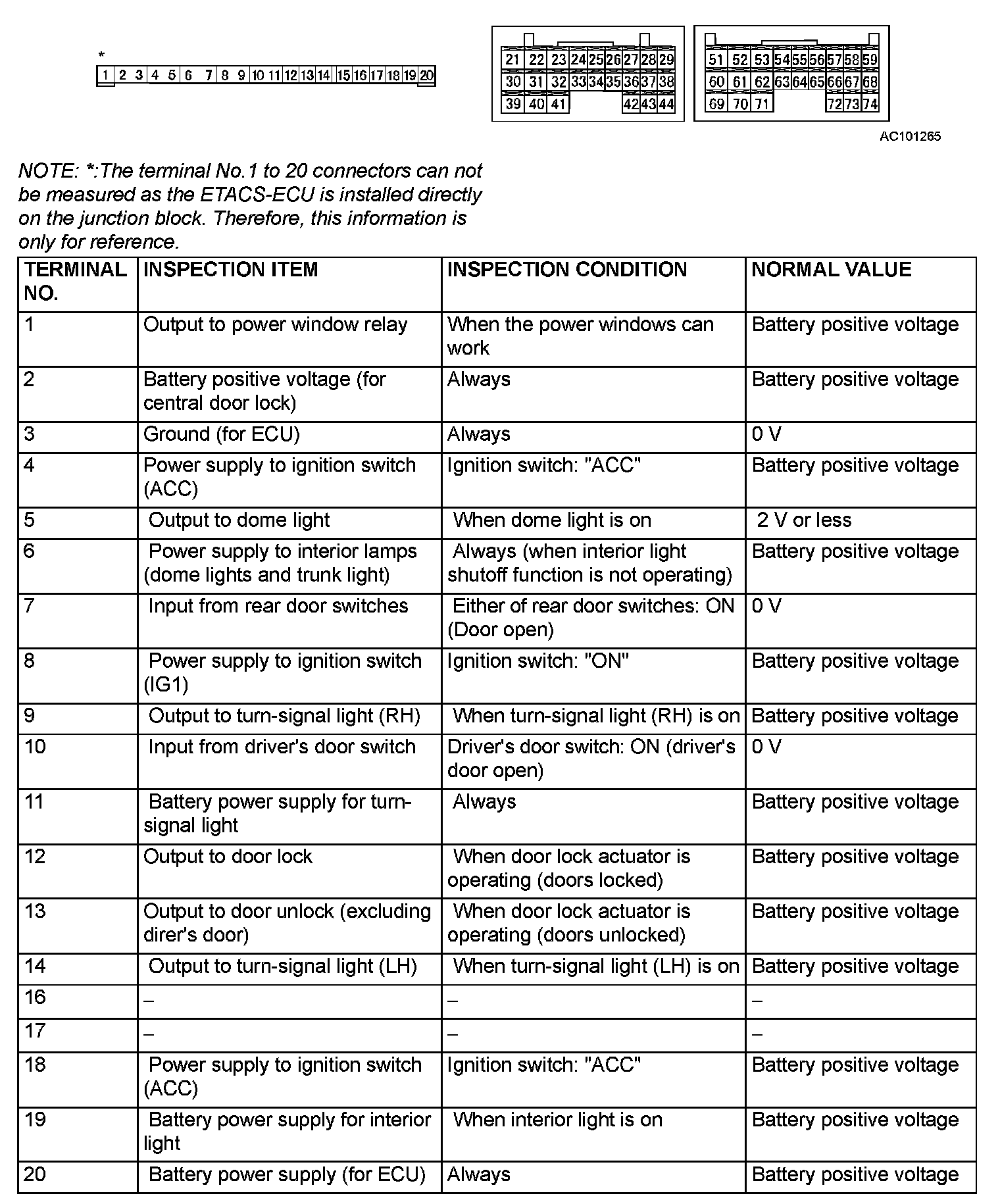

ETACS-ECU Connector View And Terminals Part 1:

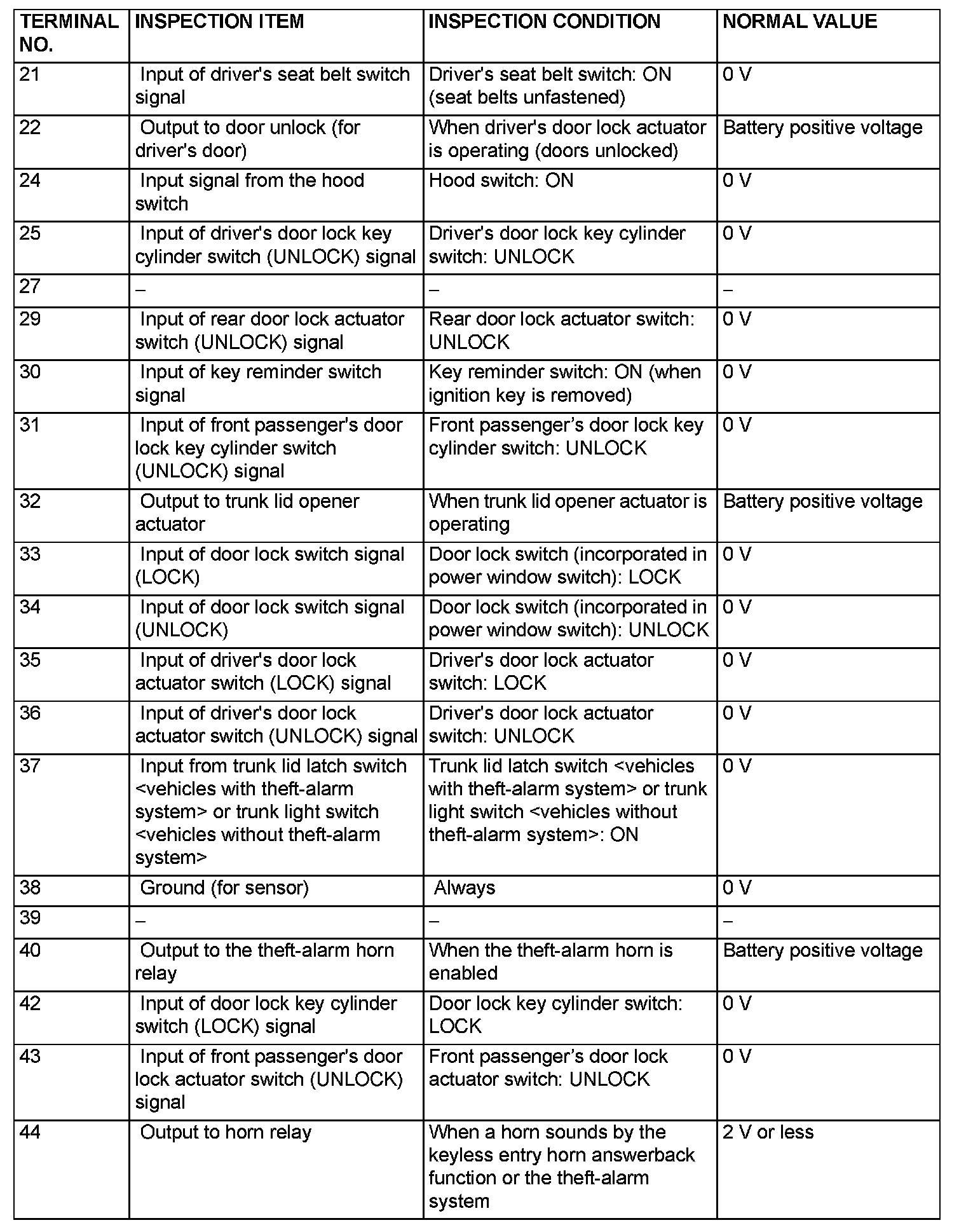

ETACS-ECU Connector View And Terminals Part 2:

ETACS-ECU Connector View And Terminals Part 3:

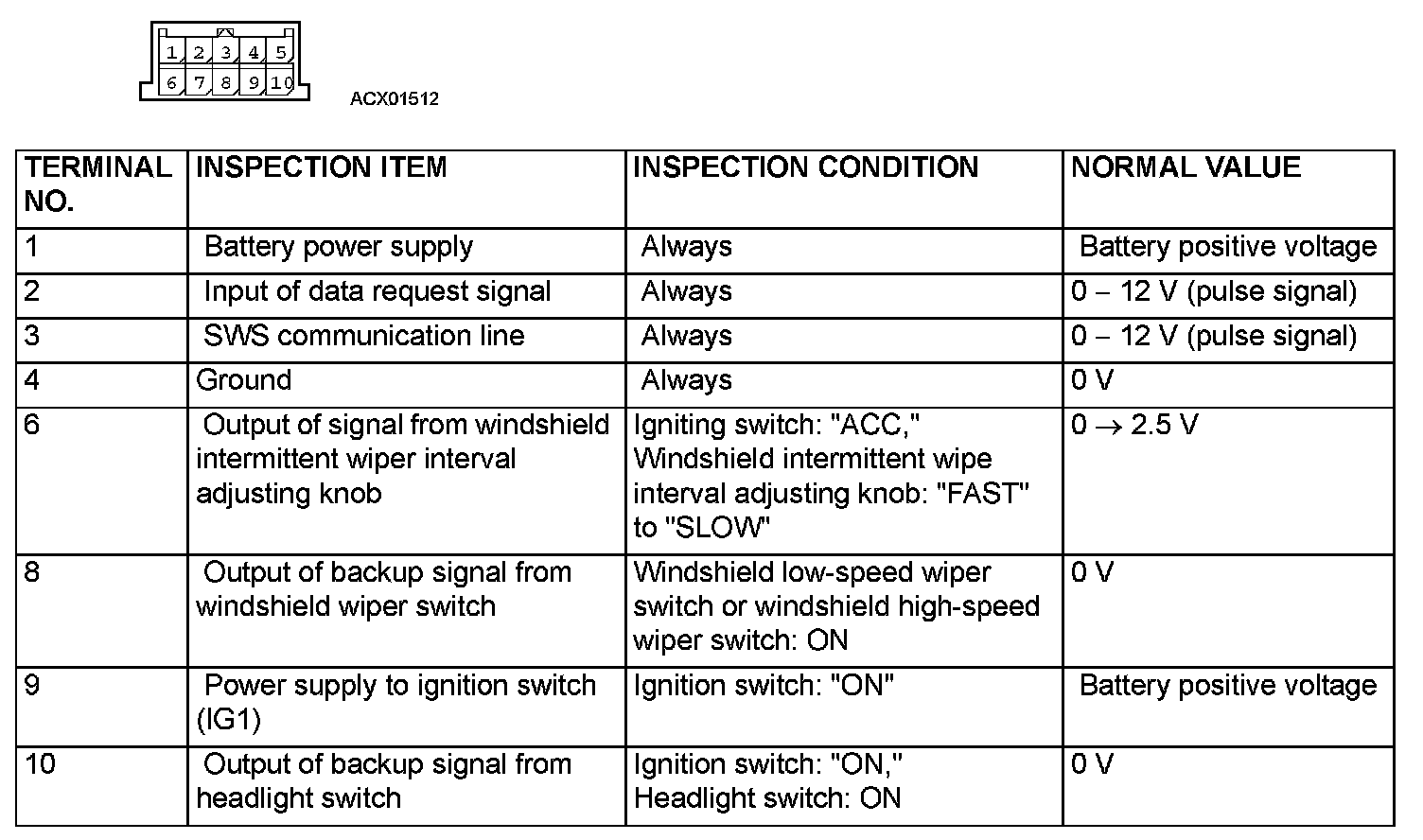

Column Switch:

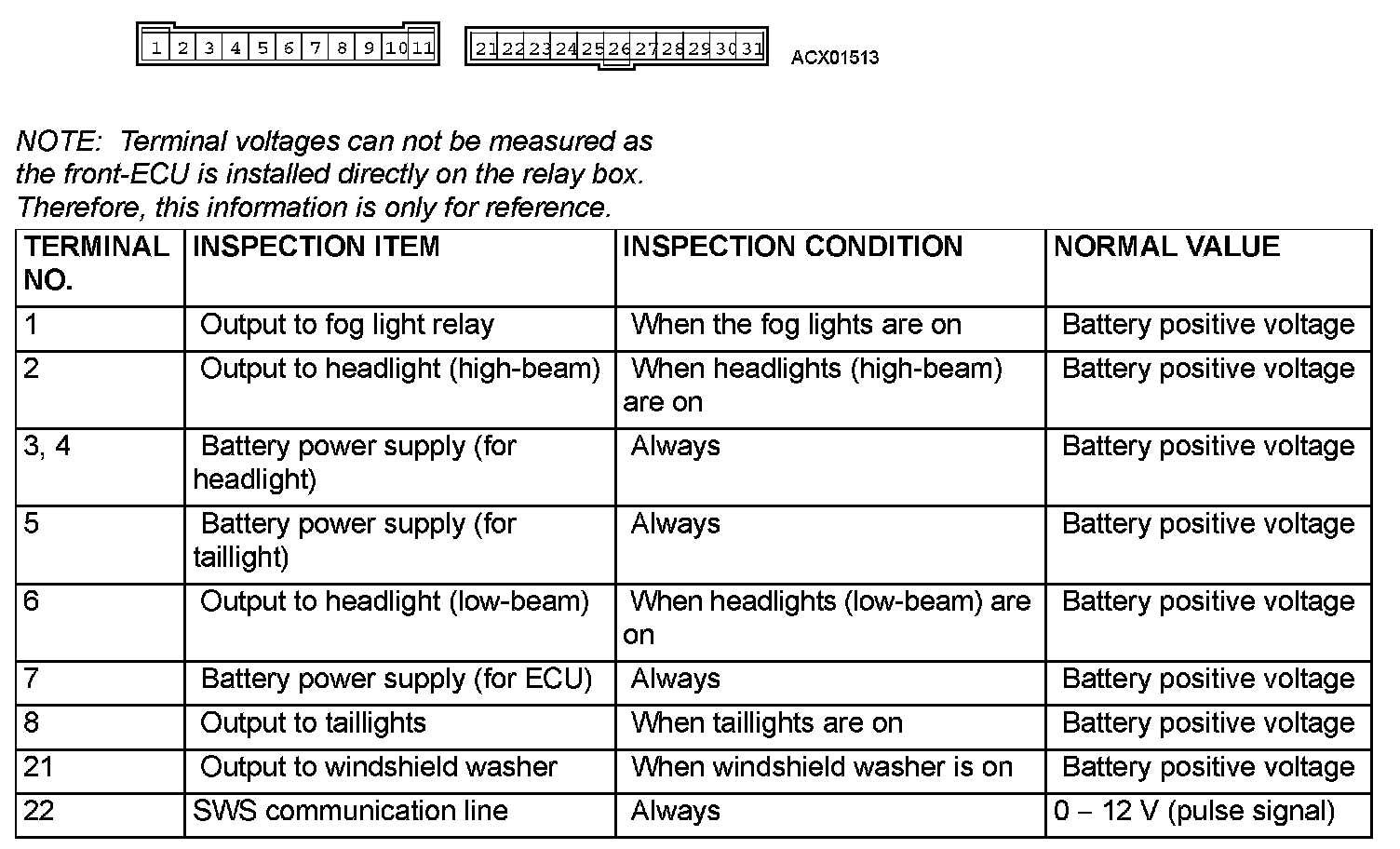

Front-ECU Connector View And Terminals Part 1:

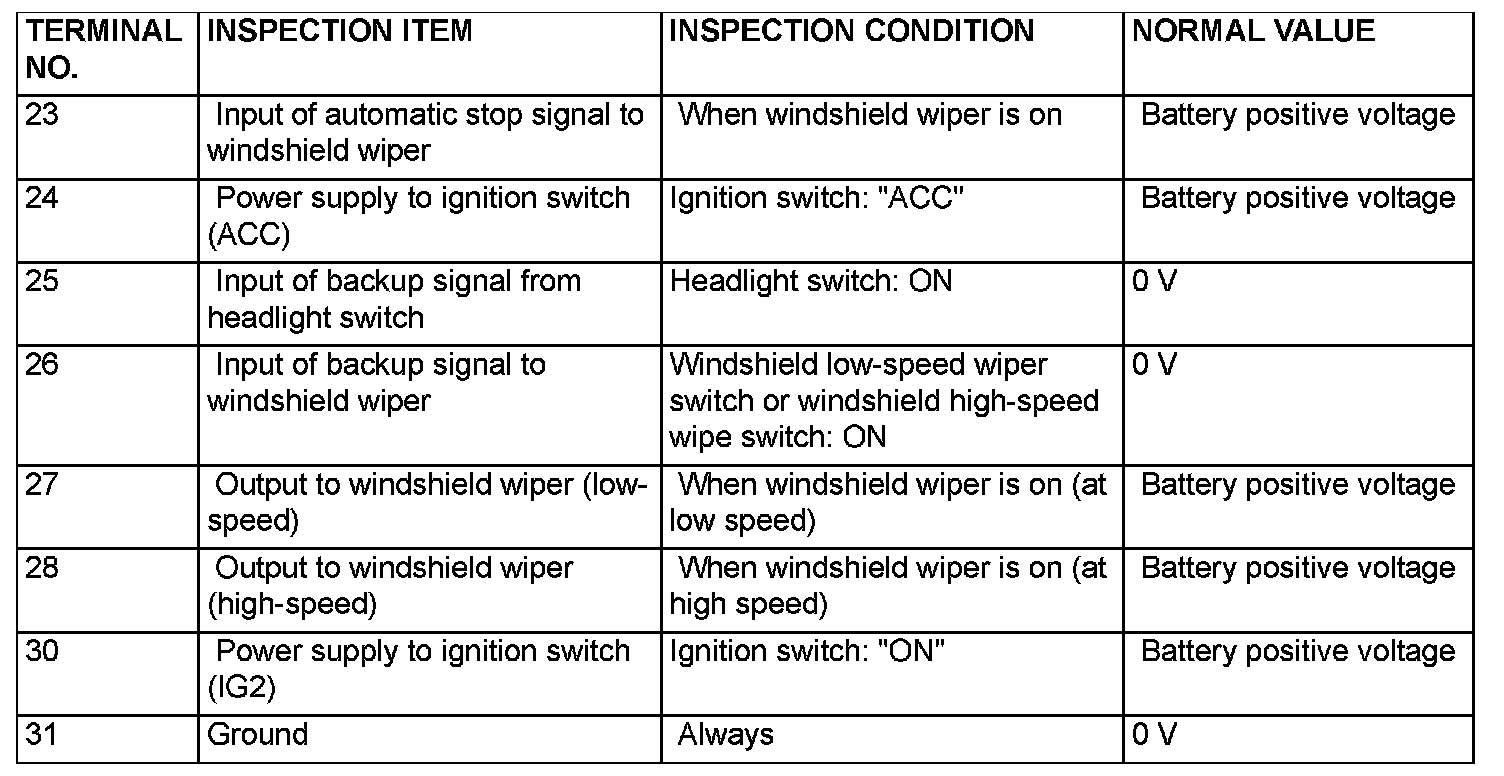

Front-ECU Connector View And Terminals Part 2:
