Road Test

ROAD TEST

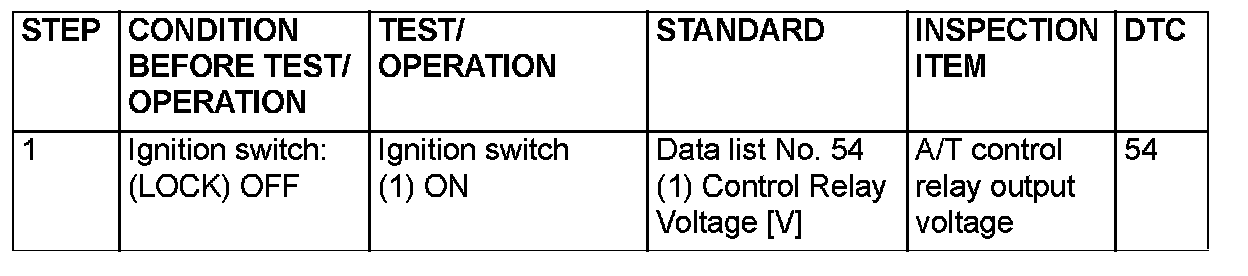

Step 1:

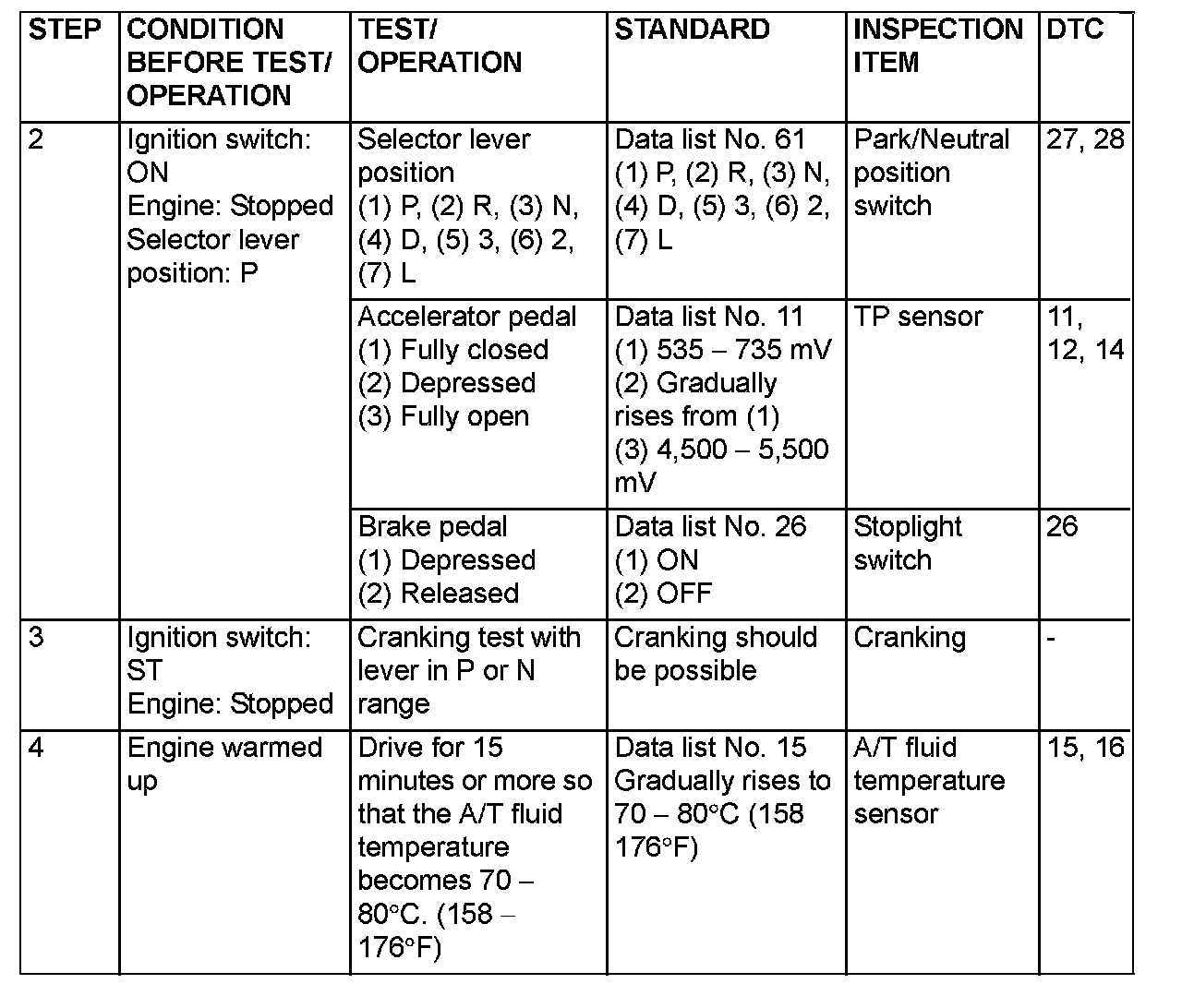

Steps 2-4:

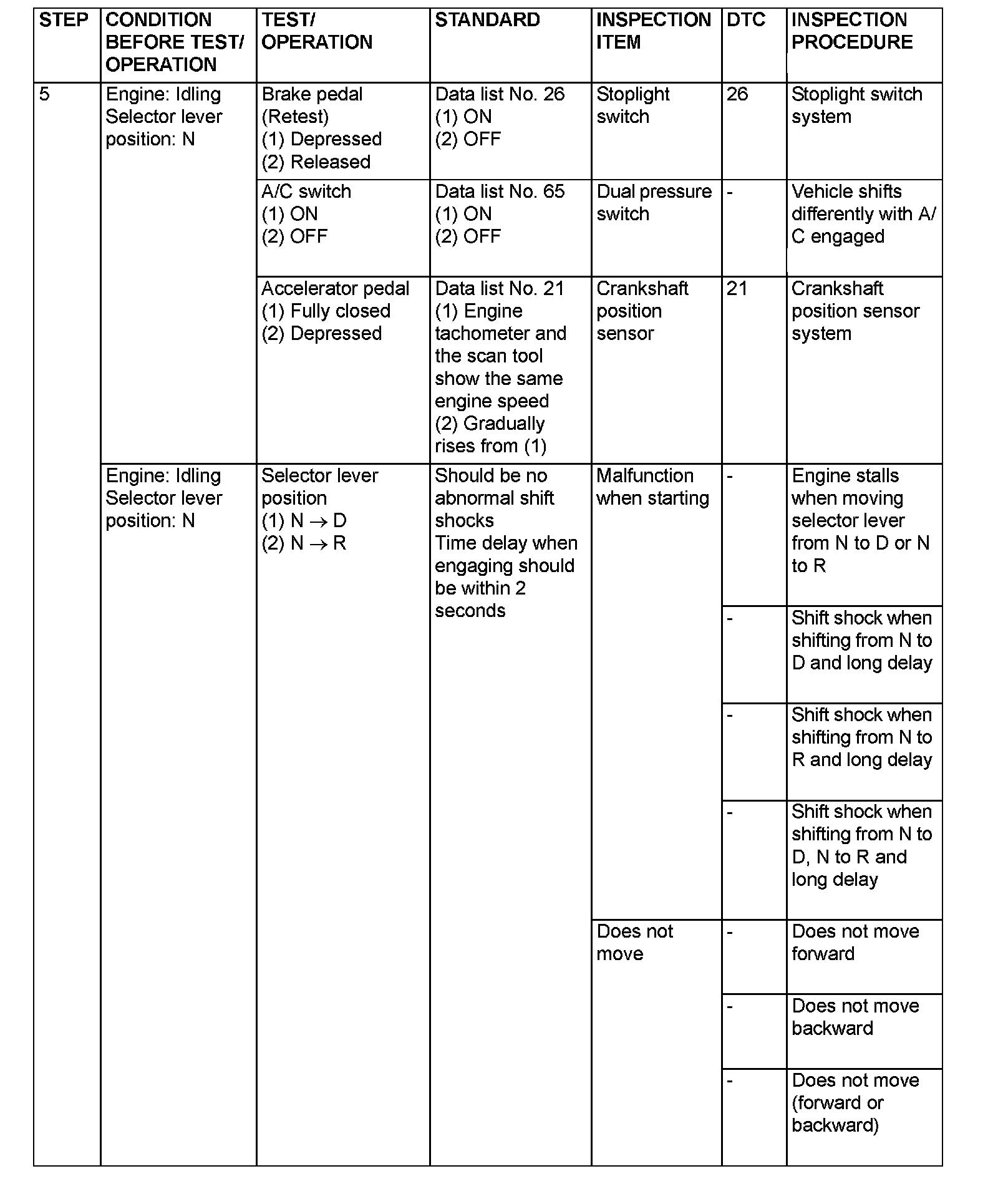

Step 5:

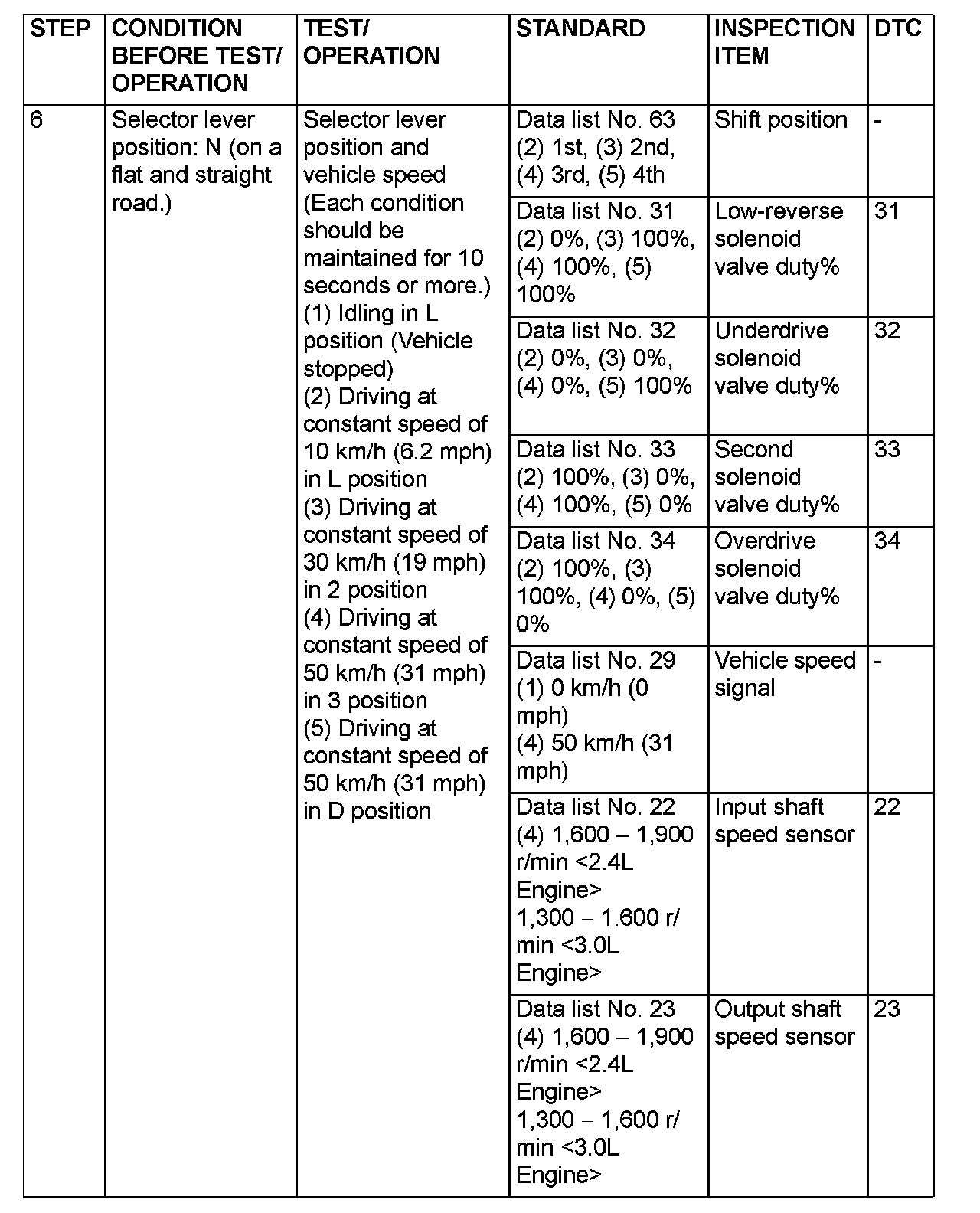

Step 6:

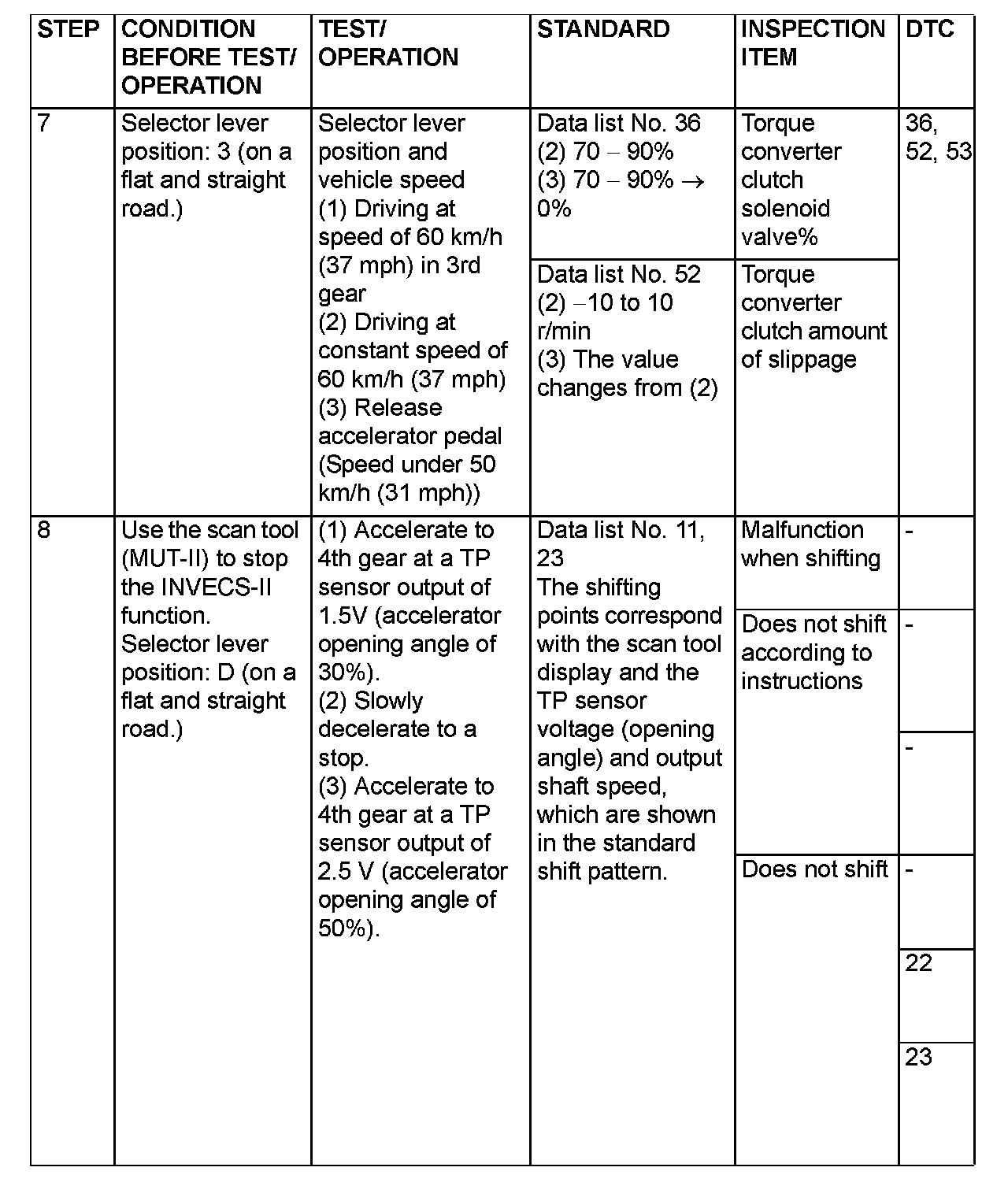

Steps 7-8:

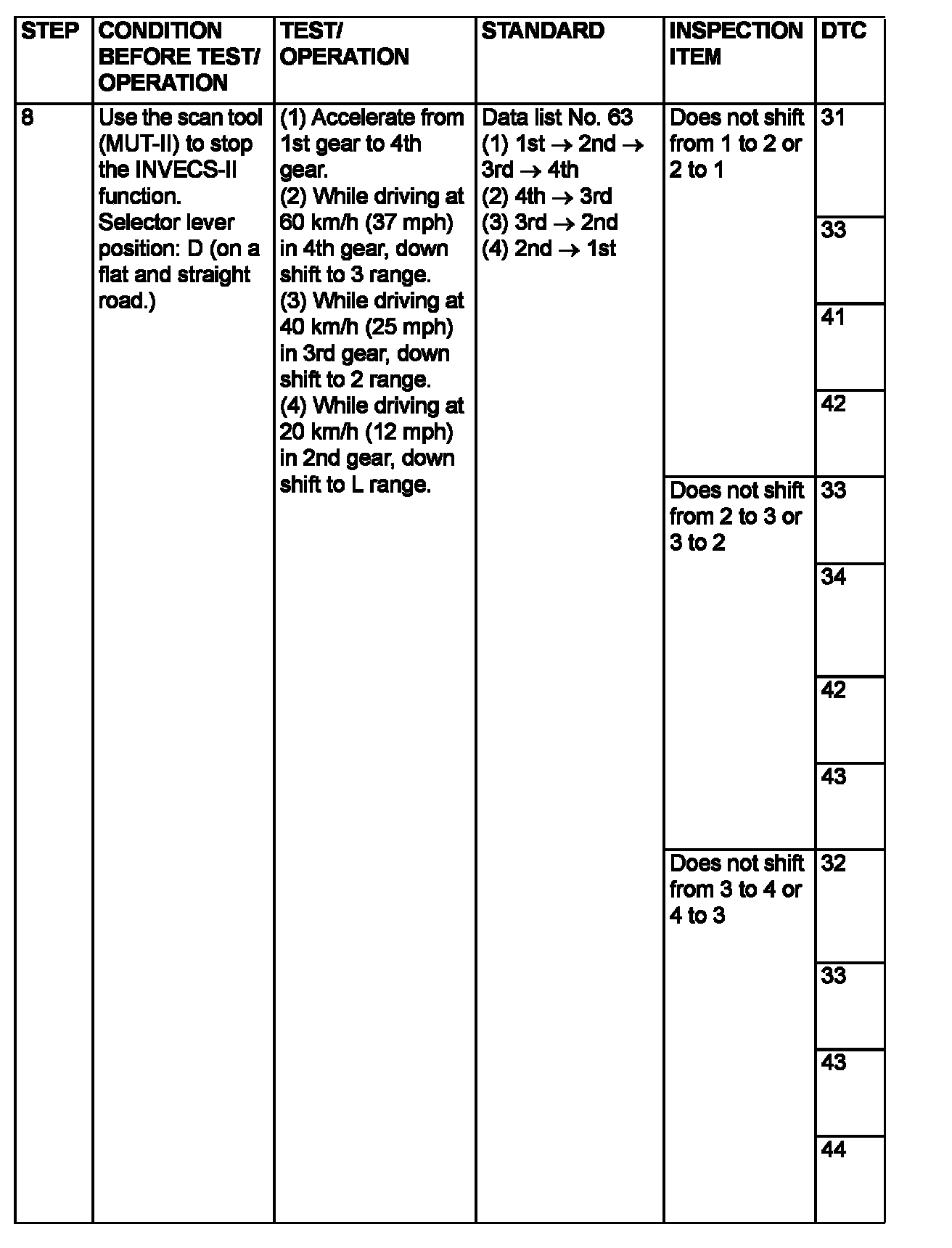

Step 8 Continued:

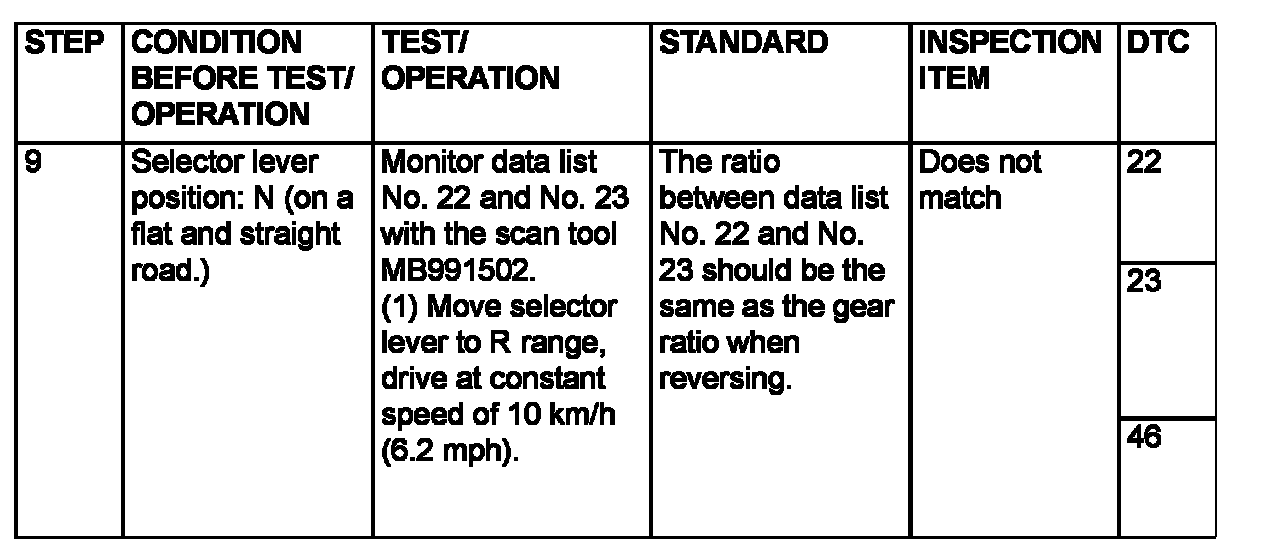

Step 9:





Check using the following procedures.
