Restraints and Safety Systems: Service Precautions

Warning/Caution Lables:

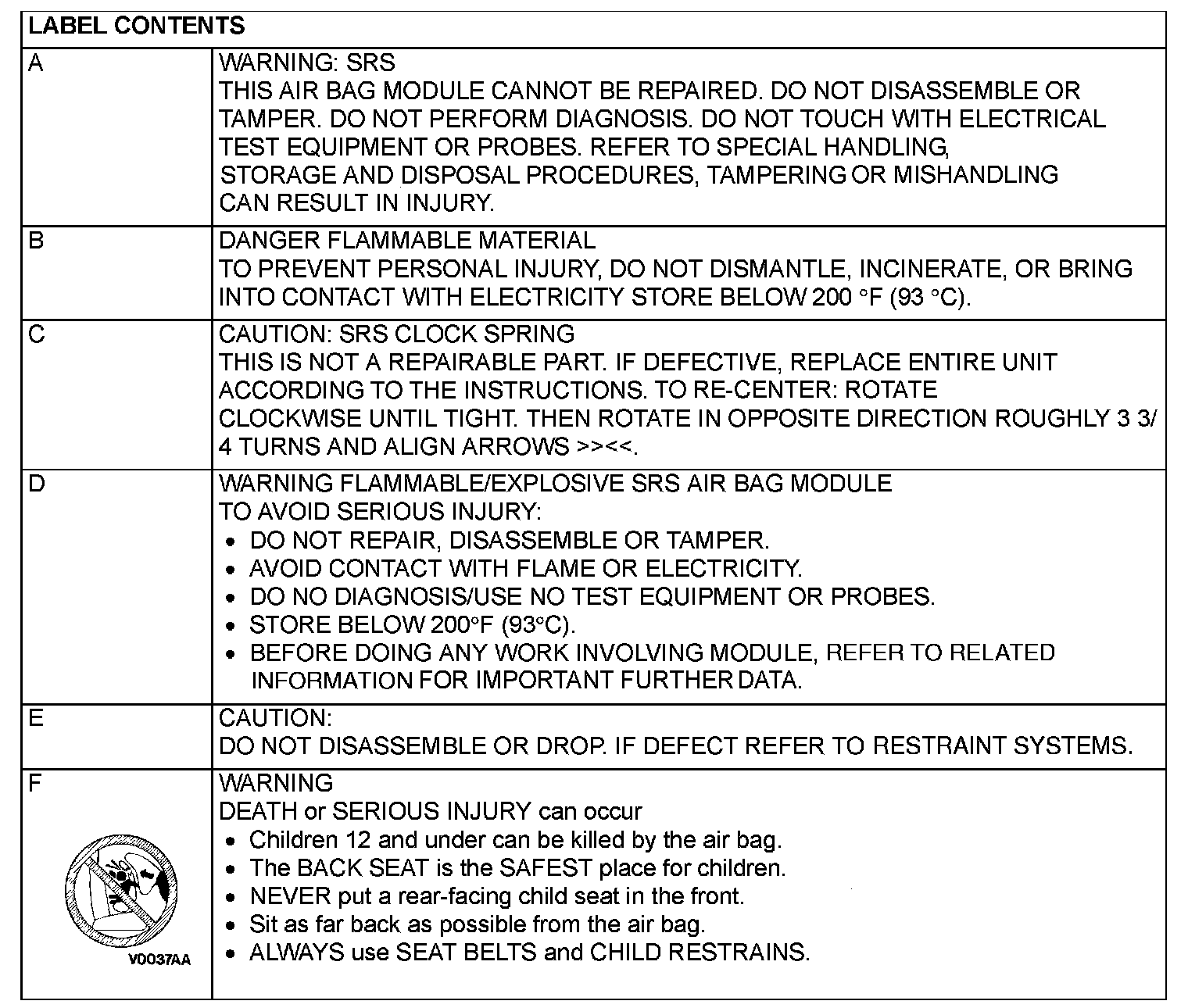

Label Contents Part 1:

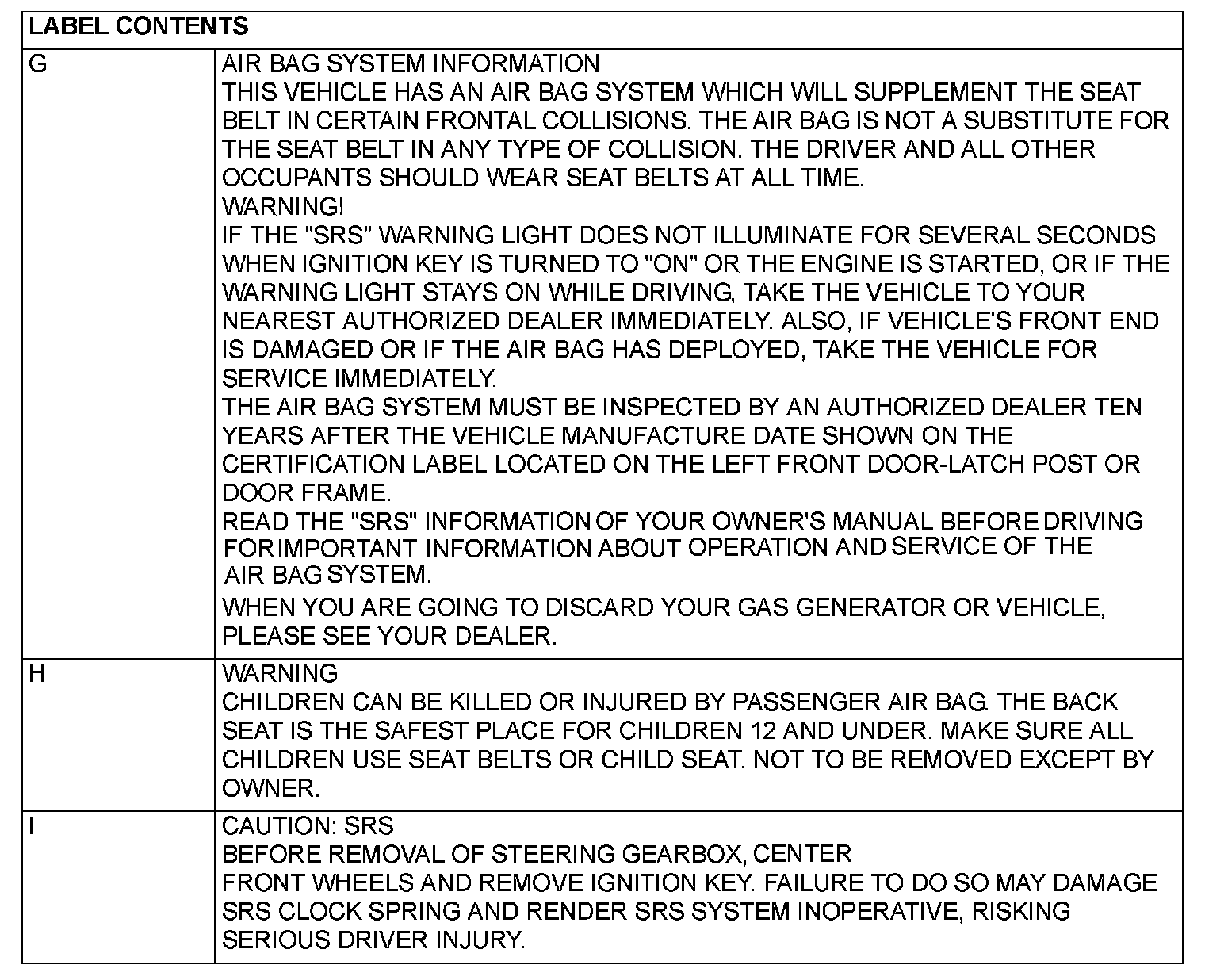

Label Contents Part 2:







WARNING / CAUTION LABELS

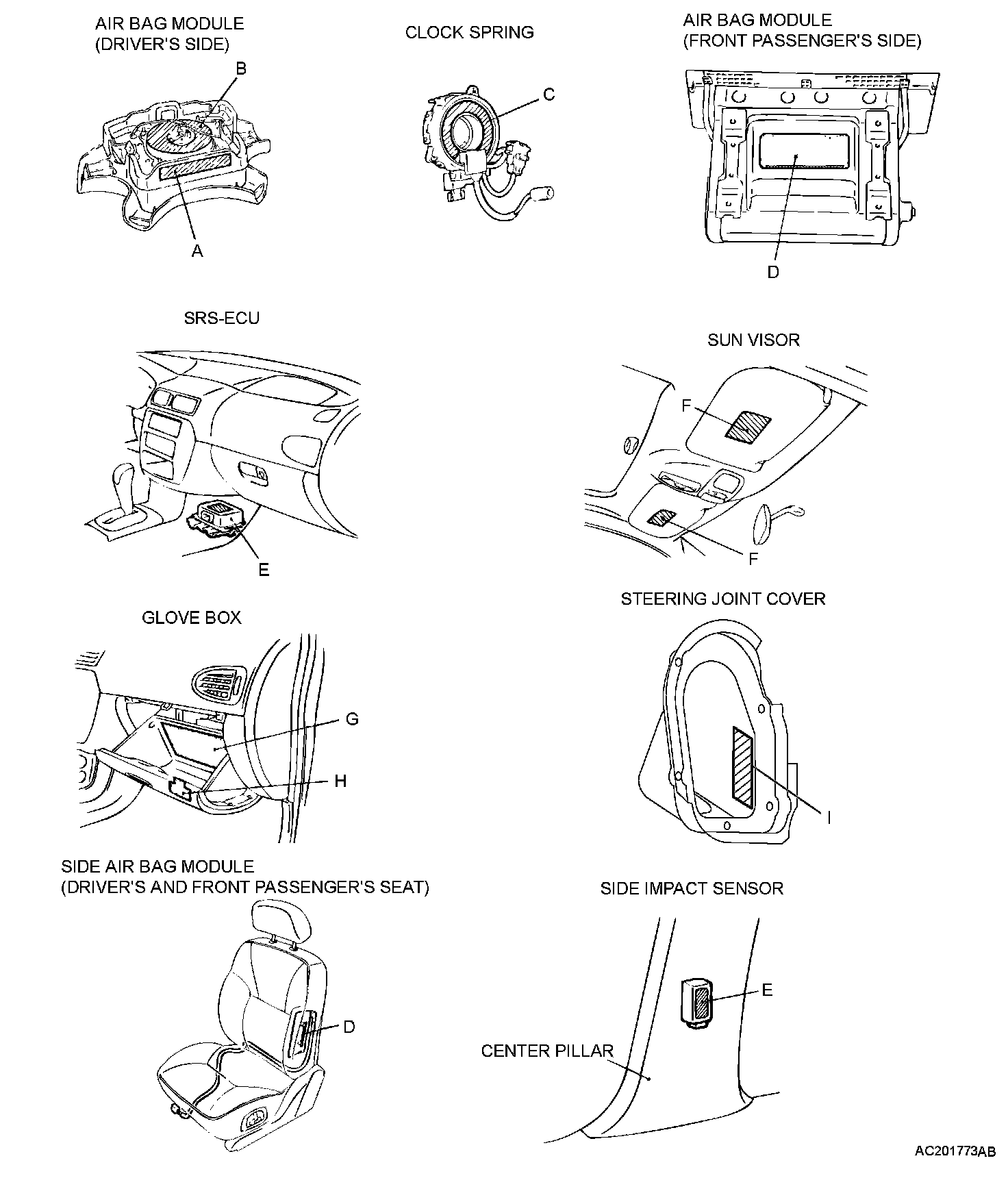

A number of caution labels related to the SRS are found in the vehicle as shown in the illustration. Follow label instructions when servicing SRS. If labels are dirty or damaged replace them.
