Automatic Transmission Control Component Layout
Automatic Transmission Control Component Layout

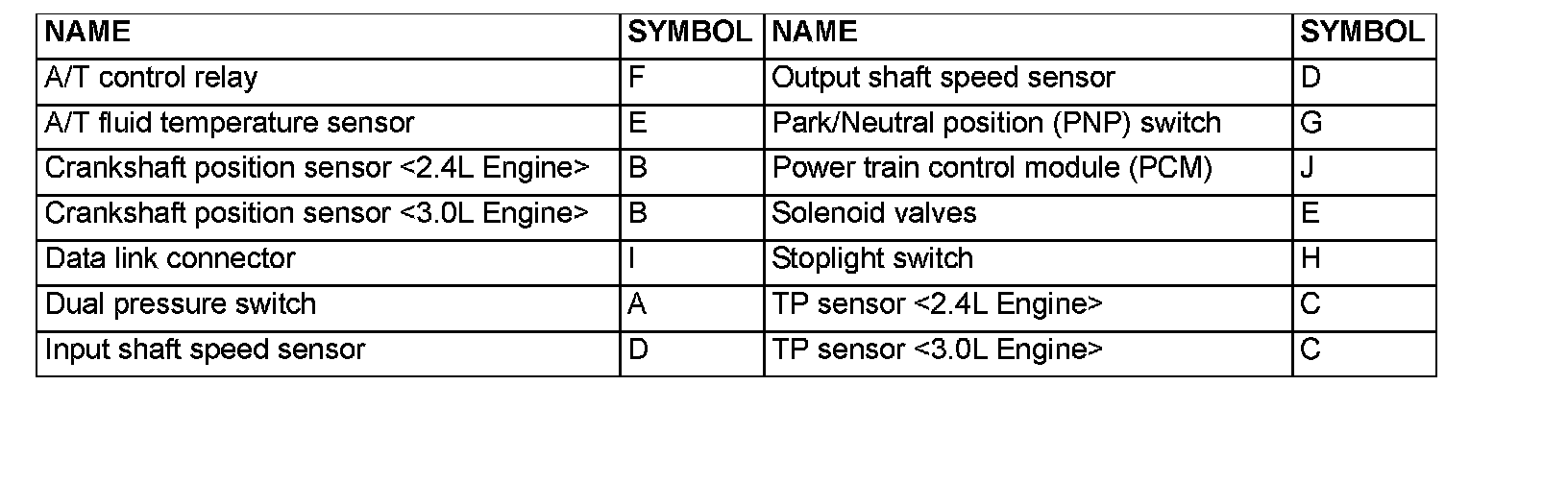

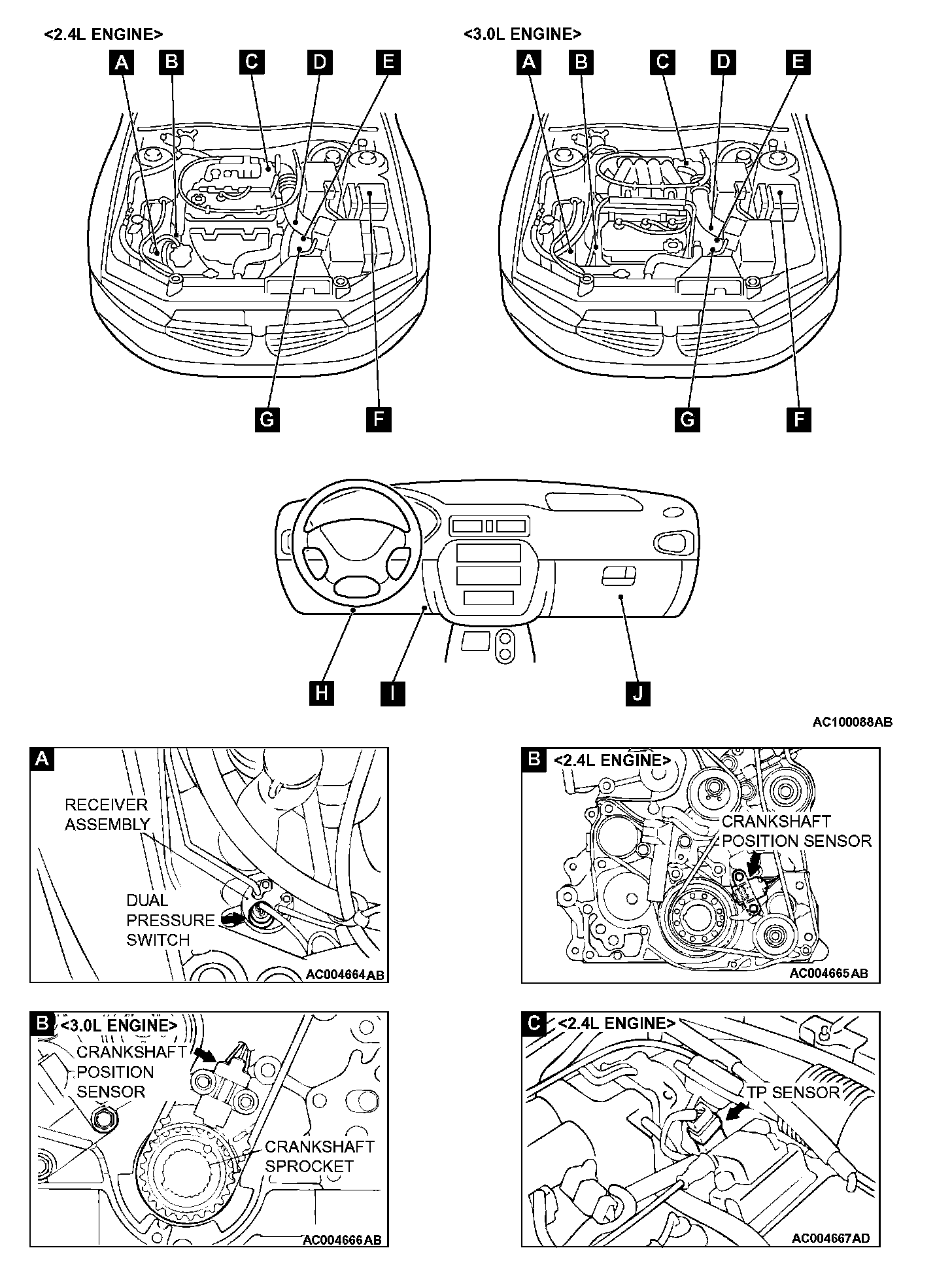

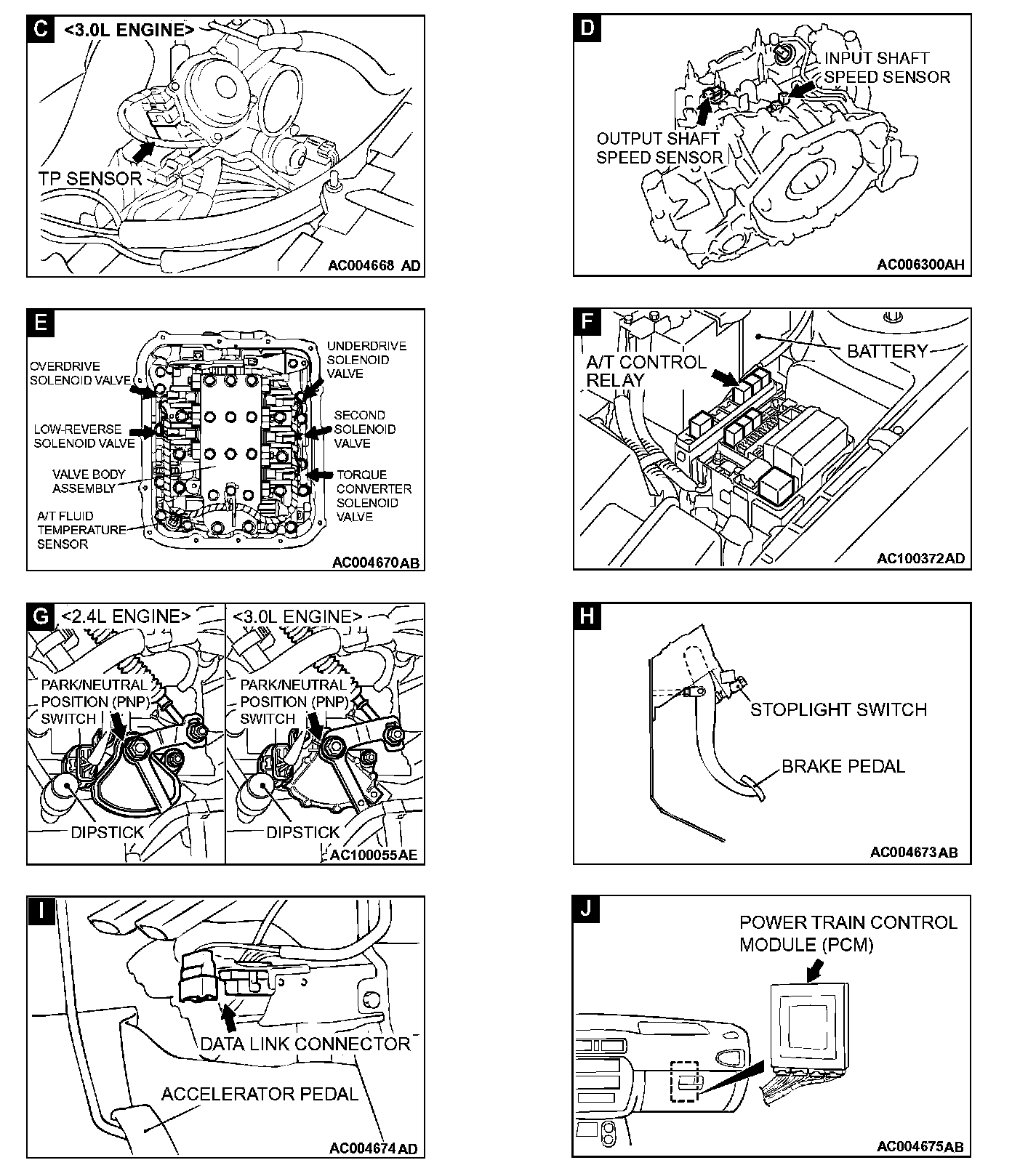

A/T CONTROL COMPONENT LAYOUT
