How to Read Circuit Diagrams

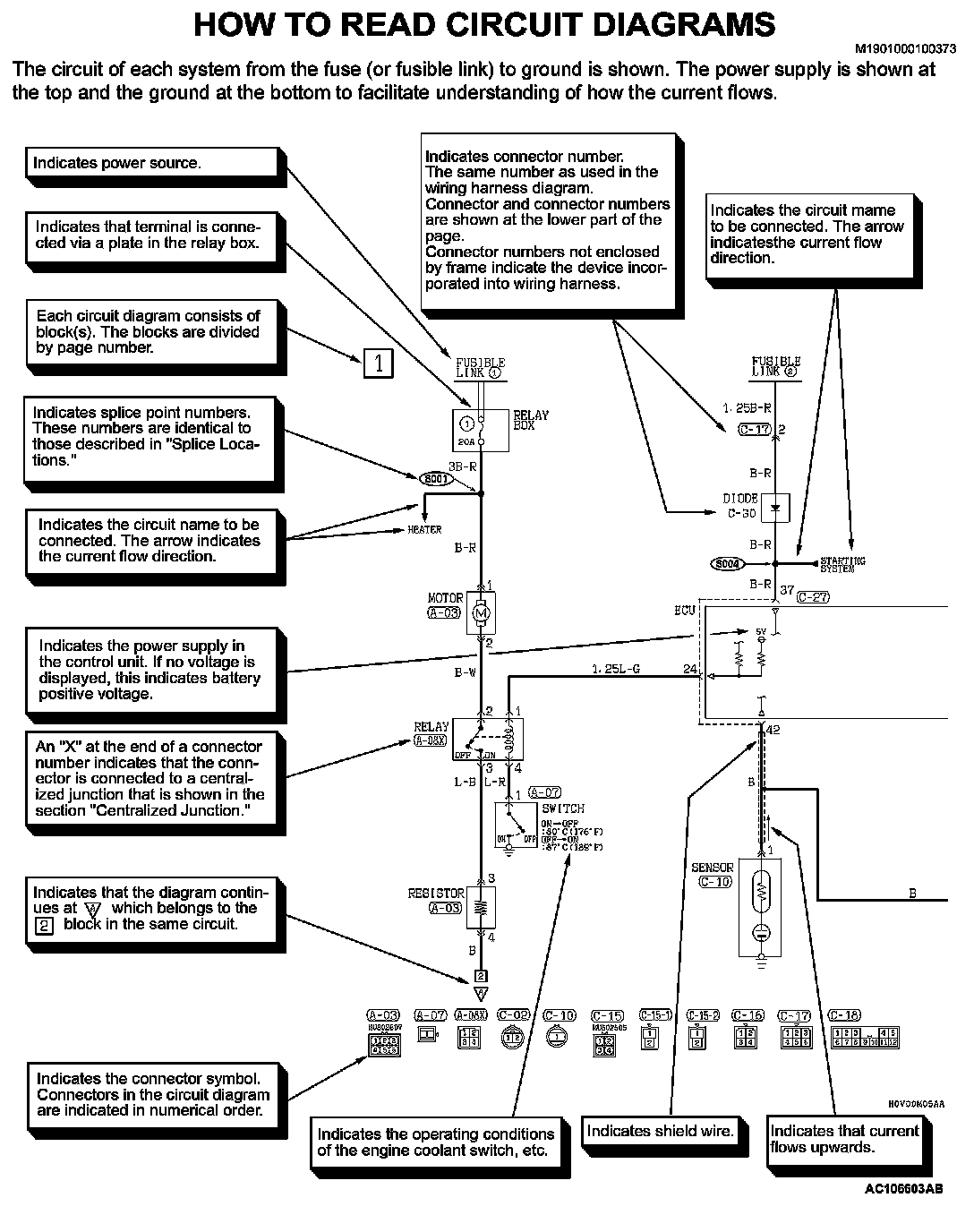

How To Read Circuit Diagrams Part 1:

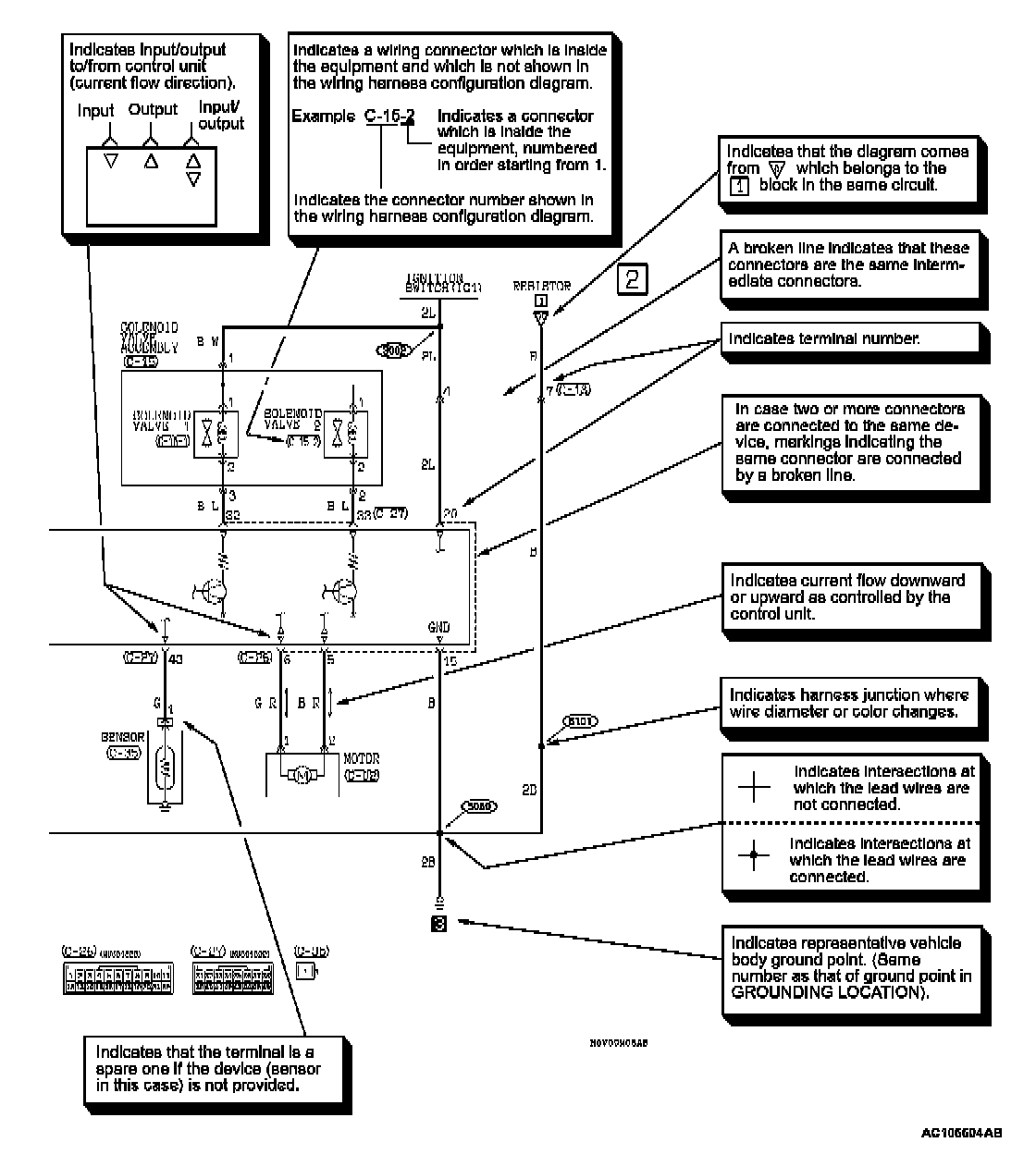

How To Read Circuit Diagrams Part 2:
Connector/Grounding Indications:
