Home >> Mitsubishi >> 2003 >> Galant V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head Assembly

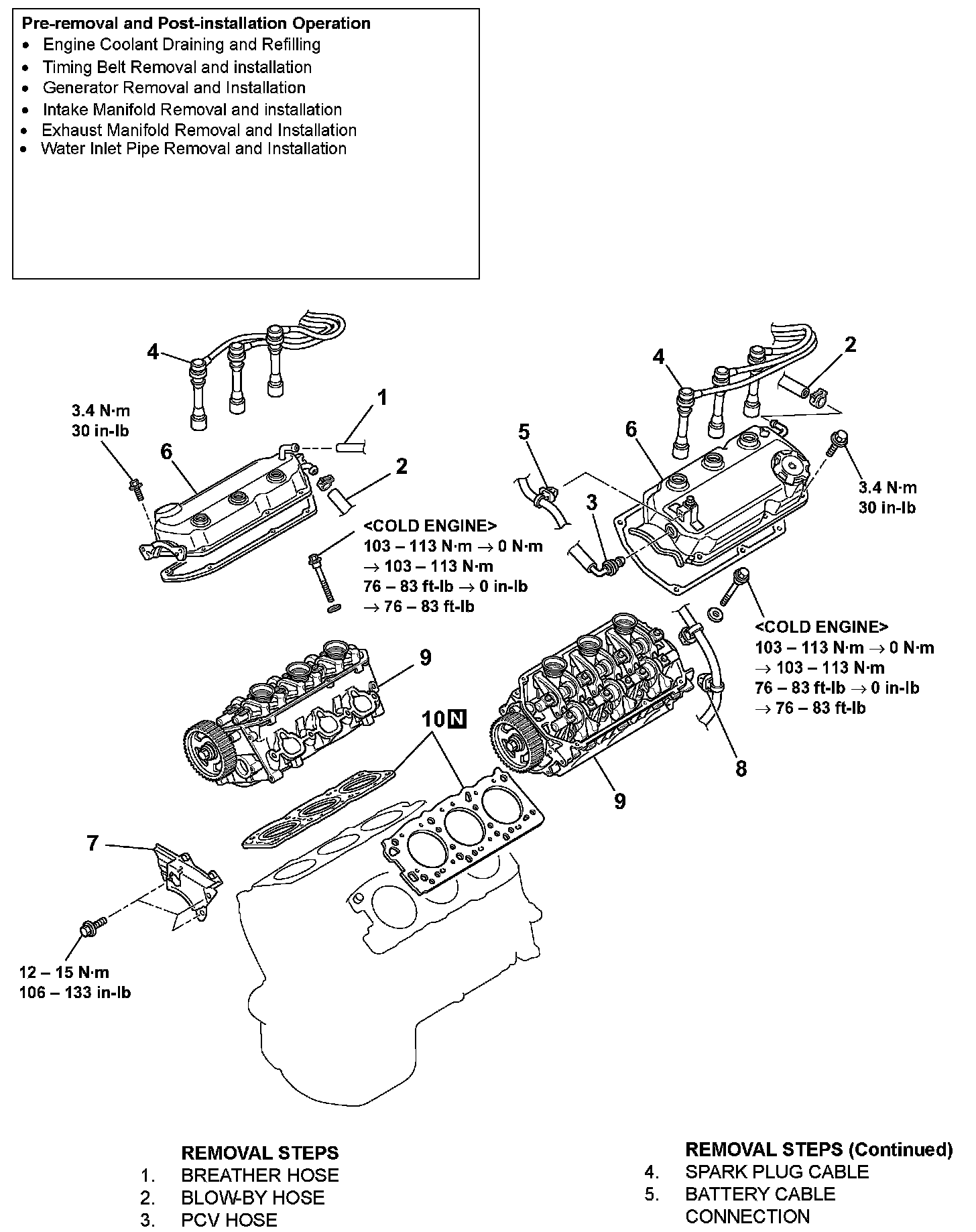

Cylinder Head Assembly








CYLINDER HEAD GASKET REPLACEMENT W/ RELATED COMPONENTS
