Home >> Mitsubishi >> 2003 >> Galant V6-3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

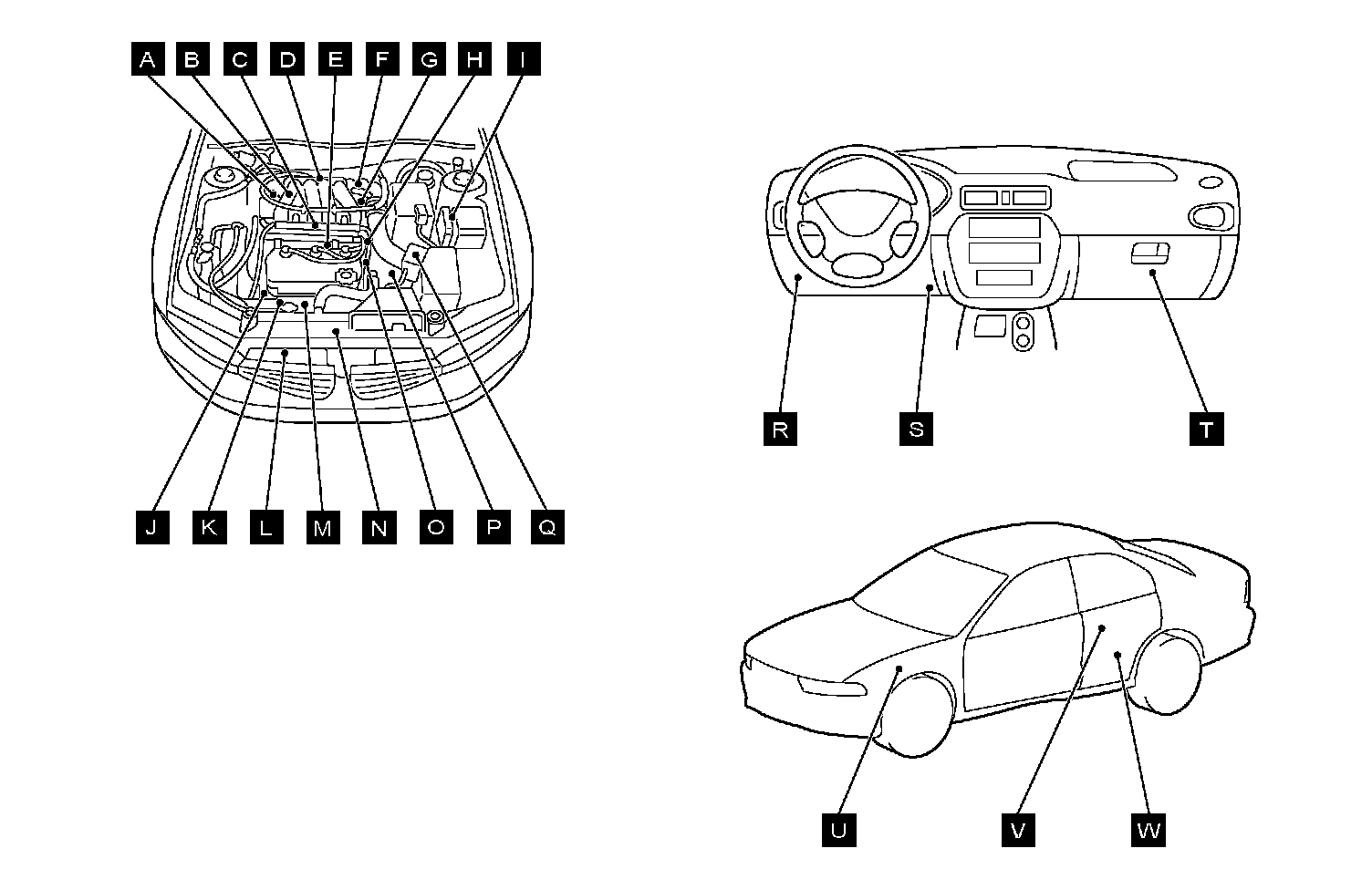

Overall View:

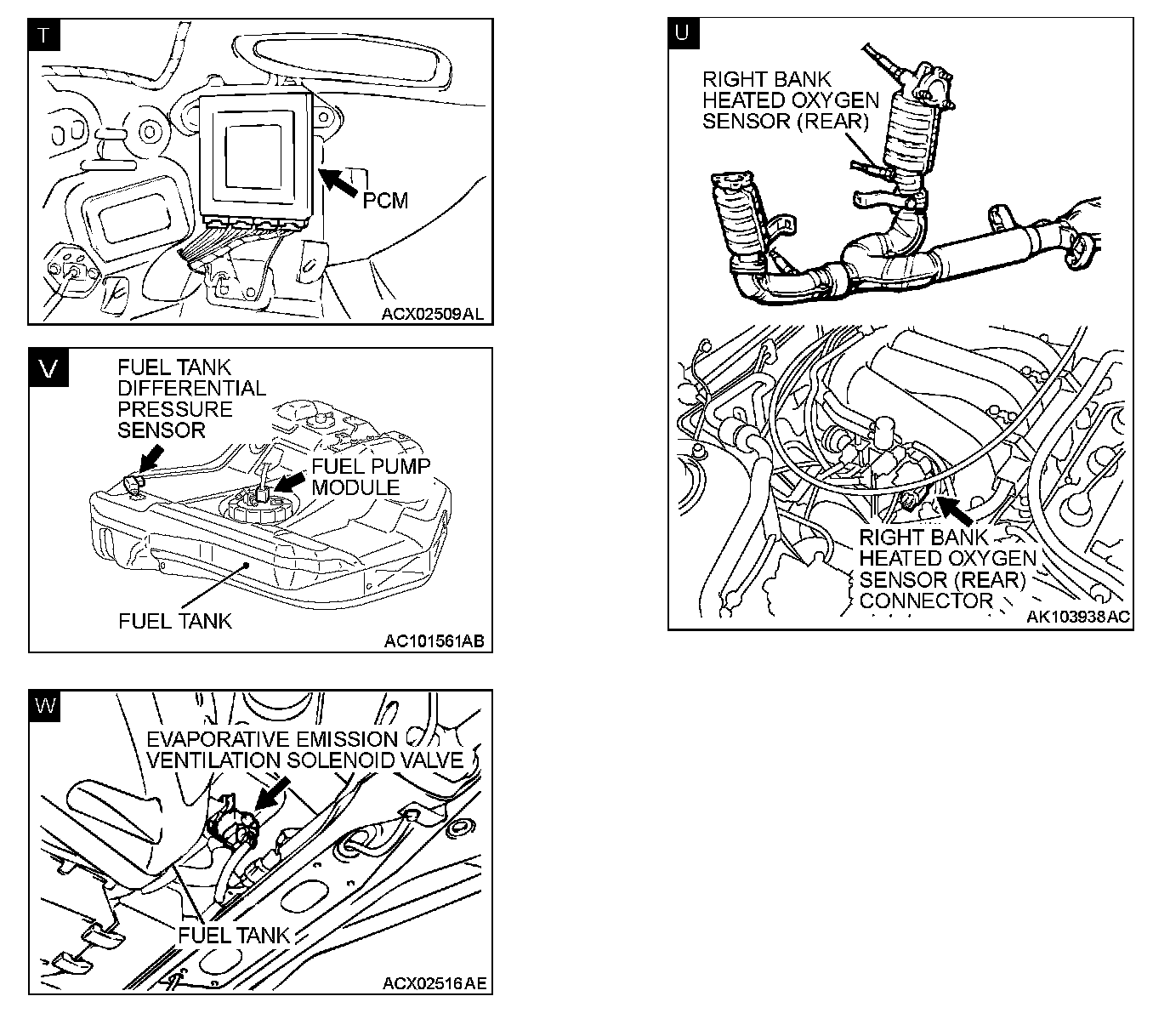

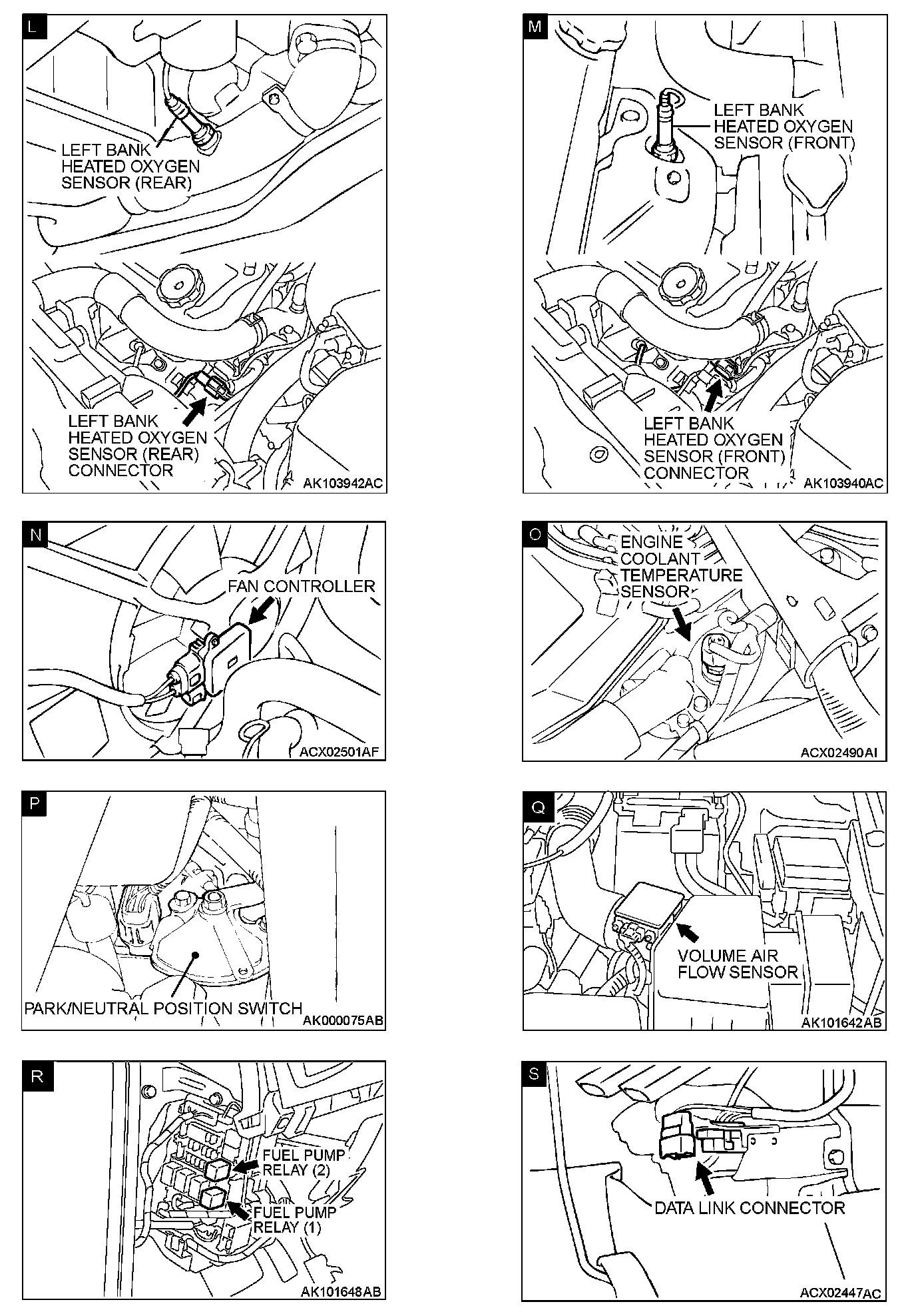

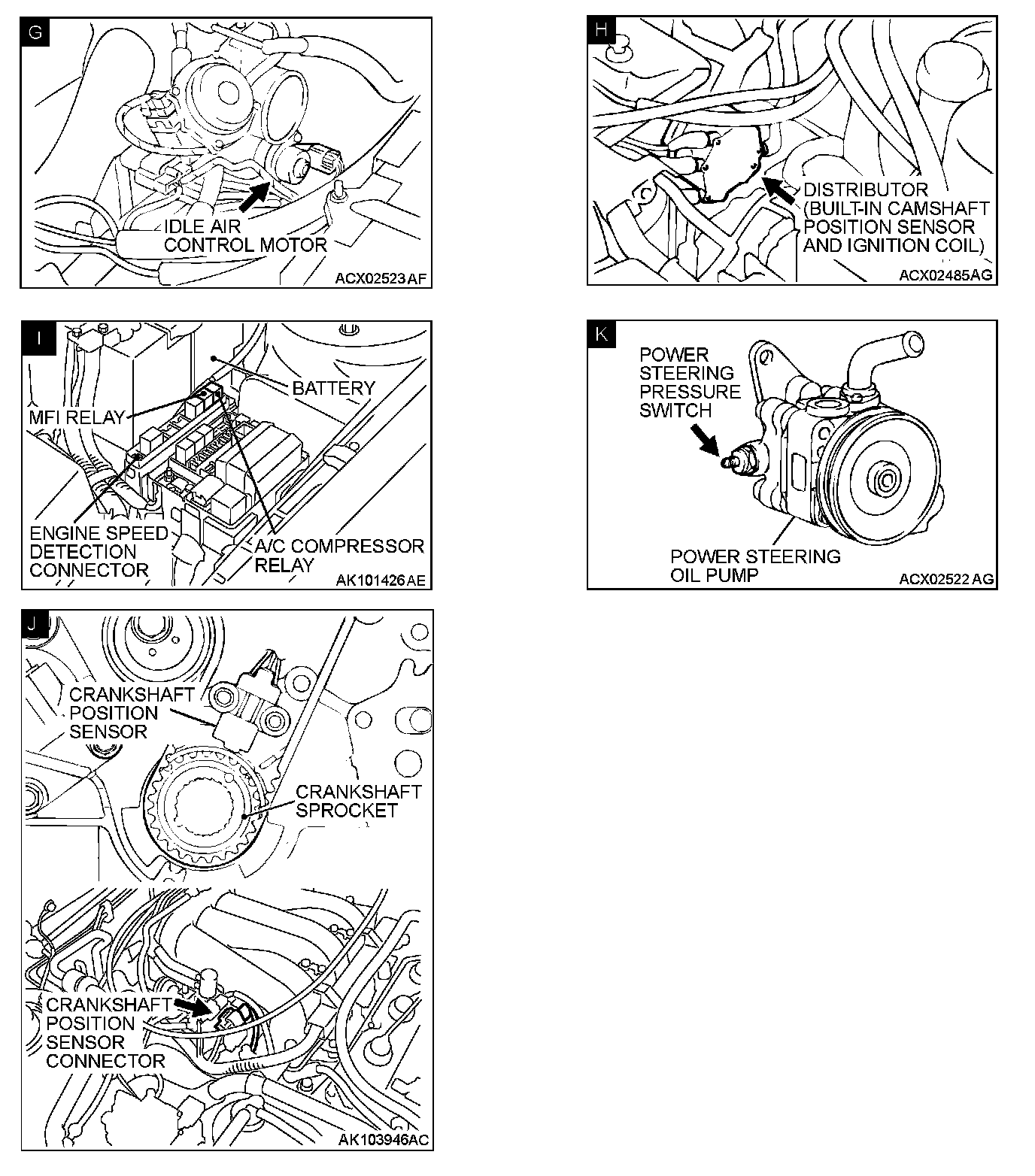

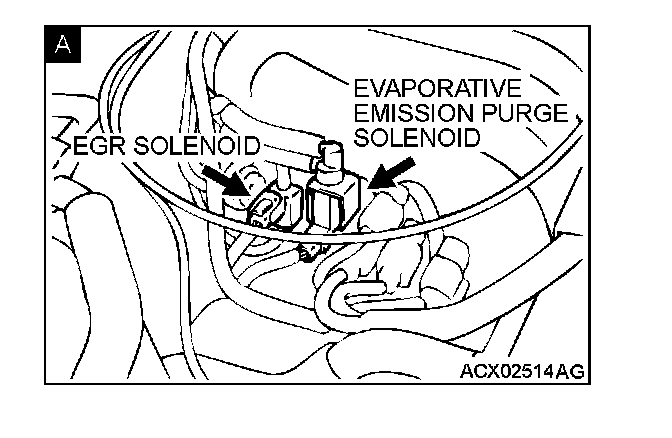

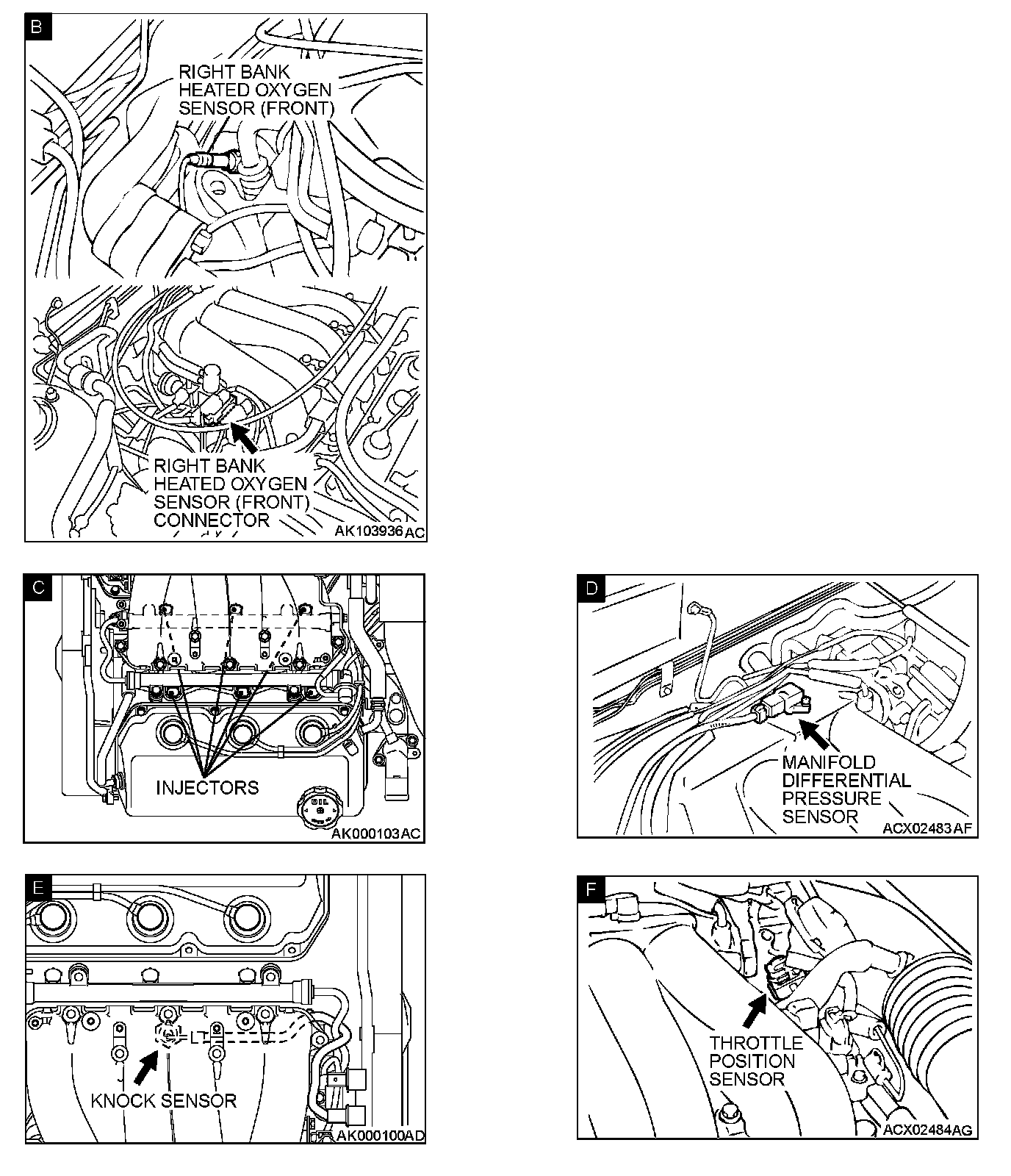

COMPONENT LOCATION
