Oil Pan, Engine

Engine
Oil pan cover attaching bolt 9.8 - 12 Nm (87 - 106 inch lbs.)
Oil pan drain plug 39 Nm (29 ft. lbs.)
Upper oil pan attaching bolt
M8 Nm (52 inch lbs.)
M10 35 Nm (26 ft. lbs.)

Overhaul
Oil pan, lower bolt 11 Nm (95 inch lbs.)
Oil pan, upper bolt 5.9 Nm (52 inch lbs.)

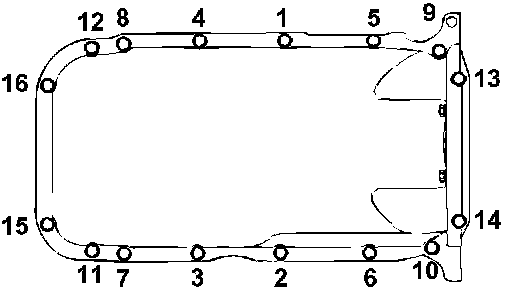

Upper Oil Pan Torque and Sequence 5.9 Nm

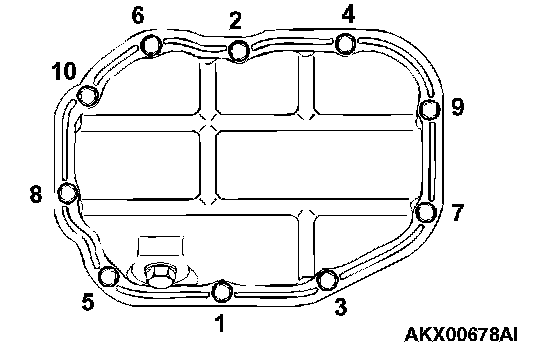

Lower Oil Pan Torque and Sequence 11 Nm
