Home >> Mitsubishi >> 2003 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Transmission Mount, A/T

Transmission Mount, A/T

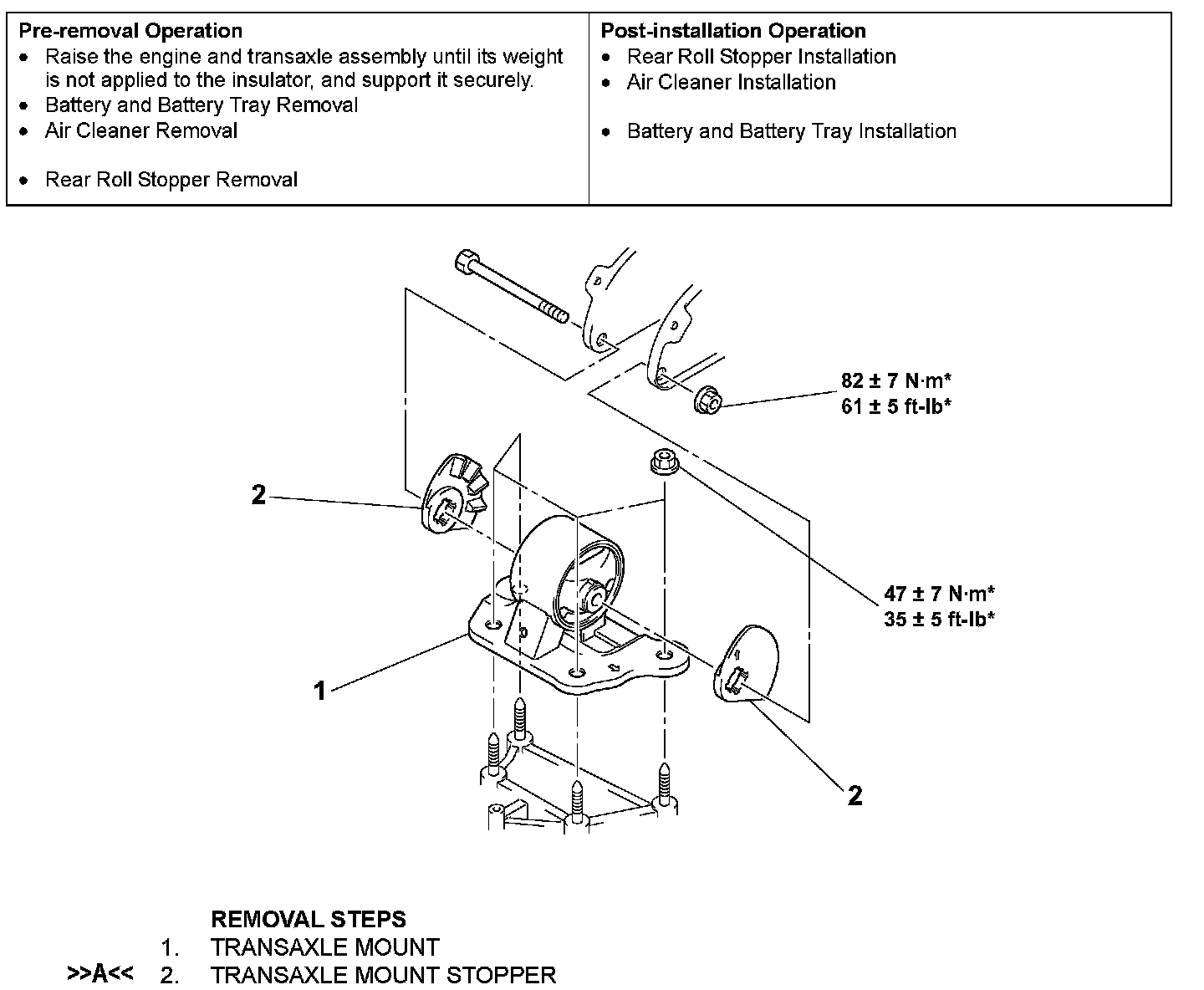

TRANSAXLE MOUNTING REPLACEMENT W/ RELATED COMPONENTS
