Camshaft, Engine

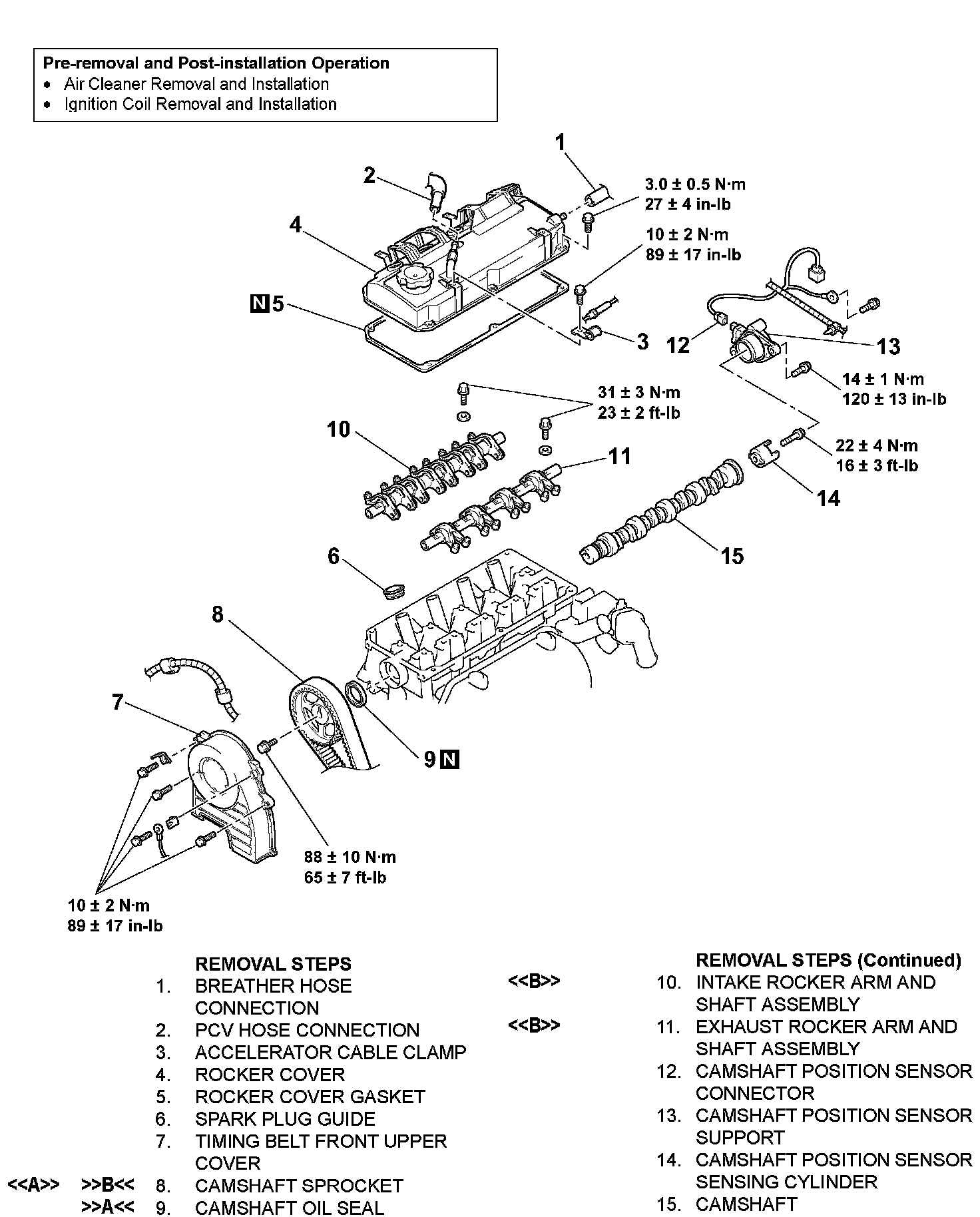

Part 1 Of 2:




Part 2 Of 2:

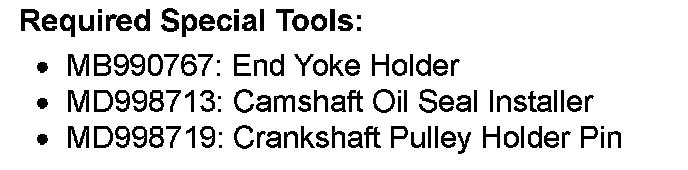

CAMSHAFT AND CAMSHAFT OIL SEAL REPLACEMENT W/ RELATED COMPONENTS
