Engine Roll Stopper and Centermember

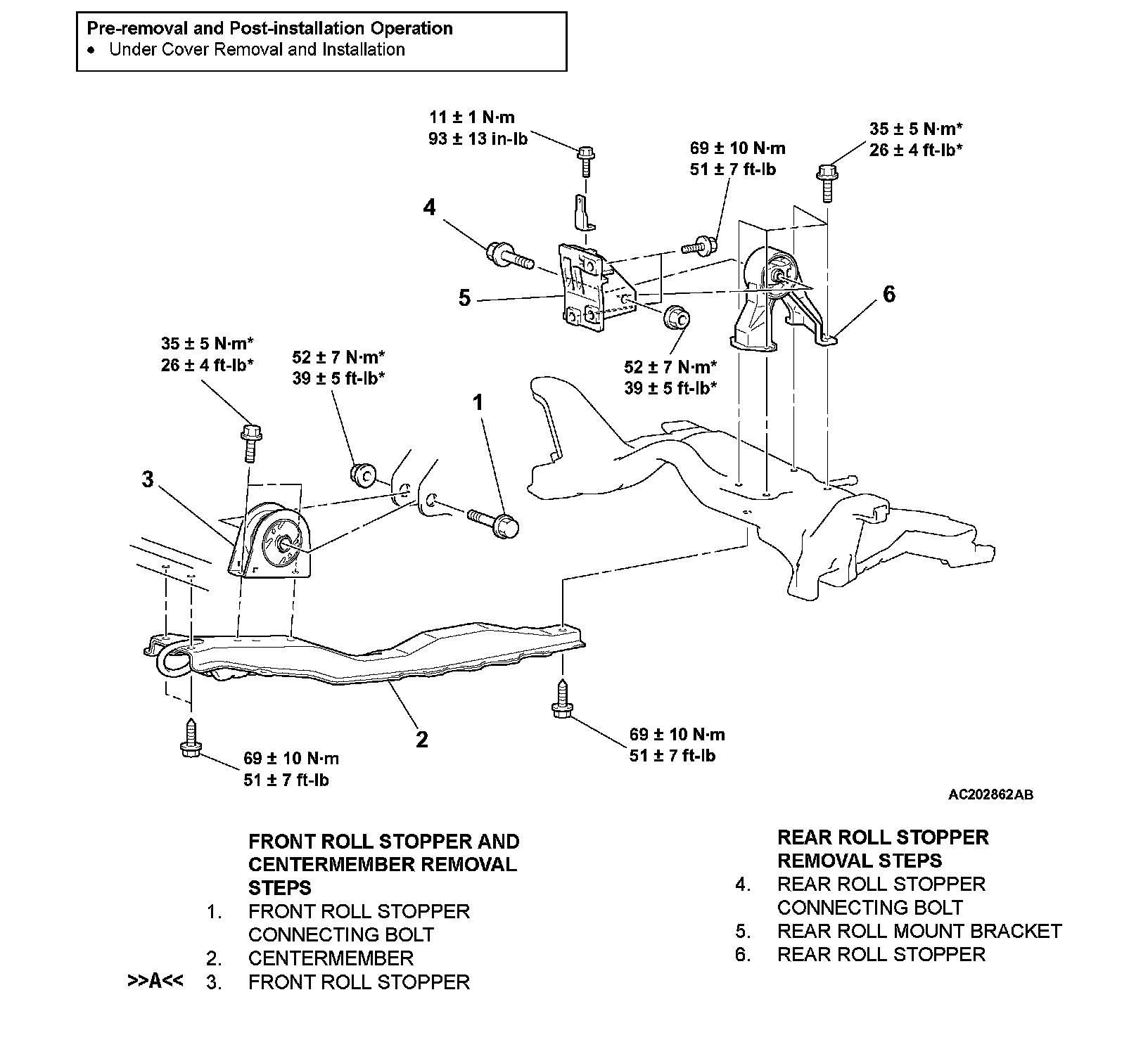

ENGINE ROLL STOPPER AND CENTERMEMBER REPLACEMENT W/ RELATED COMPONENTS
